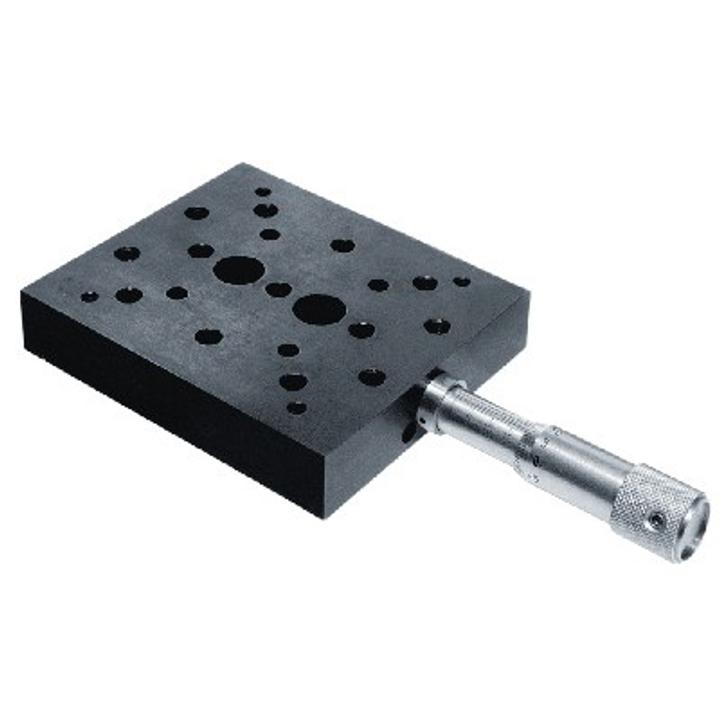

Stable Steel Translation Stage 860-0052 SKU: 860-0052S
• Solid box design • 25 mm travel range • Variety of mounting holes and options • Easily stacked in X-Y configuration • For Z axis add 810-0146 angle bracket • Large mounting surface • Made of steel Stable Steel Translation Stages 860-0052 have large mounting surface, great…
Variant specifications
| Specification | Value |
|---|---|
| Description | stainless steel version |
Shared product specifications
These specifications apply across the Stable Steel Translation Stage 860-0052 product family.
| Travel range | 25 mm |
| Sensitivity | 1 µm |
| Reading accuracy | 10 µm |
| Angular deviation | <200 µrad |
| Tracking accuracy | 2 µm |
| Load capacity: / horizontal / vertical | 20 kg / 5 kg |
| Assemblies X-Y Z | directly / 810-0146 |
| 850-0020 Kinematic Bases - DWG file | |
| 850-0020 Kinematic Bases - STEP file / 850-0022 Kinematic Bases - STEP file |
Classification
| Type | translation|rotation |
