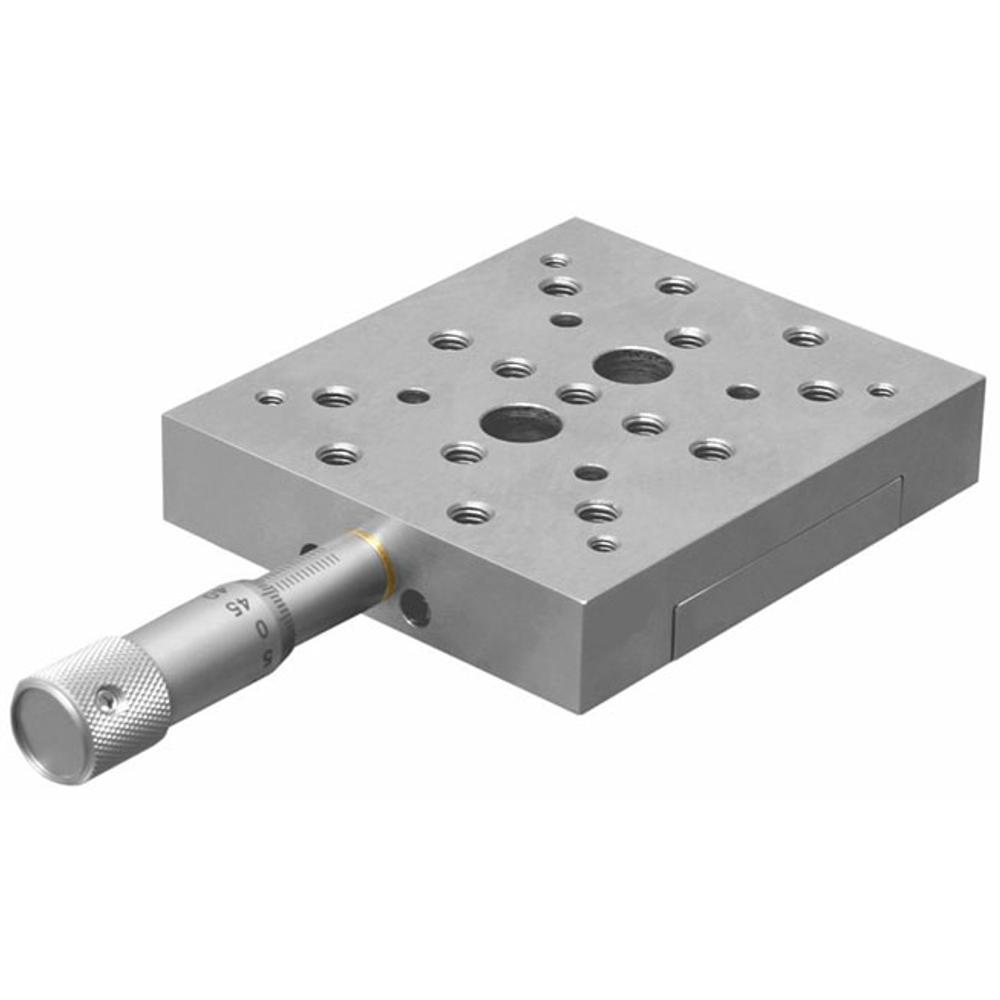

Vacuum Compatible Translation Stage 860-0052V

Vacuum Compatible Translation Stage 860-0052V

• Solid box design • 25 mm travel range • Variety of mounting holes and options • Easily stacked in X-Y configuration • For Z axis add 810-0146 angle bracket • Large mounting surface Vacuum Compatible Stable… Read more →

Order

SKU Product Type Vacuum Compatibility Mount Material and Coat Travel Range Possible Axis Configurations Load Capacity Horizontal
860-0052V Manual Translation Stage True Stainless Steel 25 mm X 20 kg
Out of stock
—

Specifications

Product Type Manual Translation Stage
Vacuum Compatibility True
Mount Material and Coat Stainless Steel
Travel Range 25 mm
Travel Sensitivity 1 µm
Tracking Accuracy - Linear 2 µm
Reading Accuracy - Linear 10 µm
Possible Axis Configurations X
Load Capacity Horizontal 20 kg
Load Capacity Vertical 5 kg
Width 80 mm
Length 92 mm
Height 19 mm

Description

  • Solid box design
  • 25 mm travel range
  • Variety of mounting holes and options
  • Easily stacked in X-Y configuration
  • For Z axis add 810-0146 angle bracket
  • Large mounting surface

Vacuum Compatible Stable Steel Translation Stages 860-0052V have large mounting surface, great travel range for this relatively small size, low profile, and increased stability and precision. Box design reinforces the stage, reducing flex. Steel, as a material, adds to stability.

You can mount a second driving screw on the other end (to lock the platform in fixed positioning applications).The platform is preloaded by springs. The stages can be stacked immediately to other units, or to their own type (e.g. in X-Y configuration). The stages can be used upside-down.

For immediate attachment the base has 2 clearance holes for M6 screws. Similarly, the platform has 4 clearance holes for M4 screws. Slip the screws from top or under through the access holes in a platform/base. Micrometer 870-0040-25 comes as standard.

Designed for Torr 10⁻⁶ vacuum.
