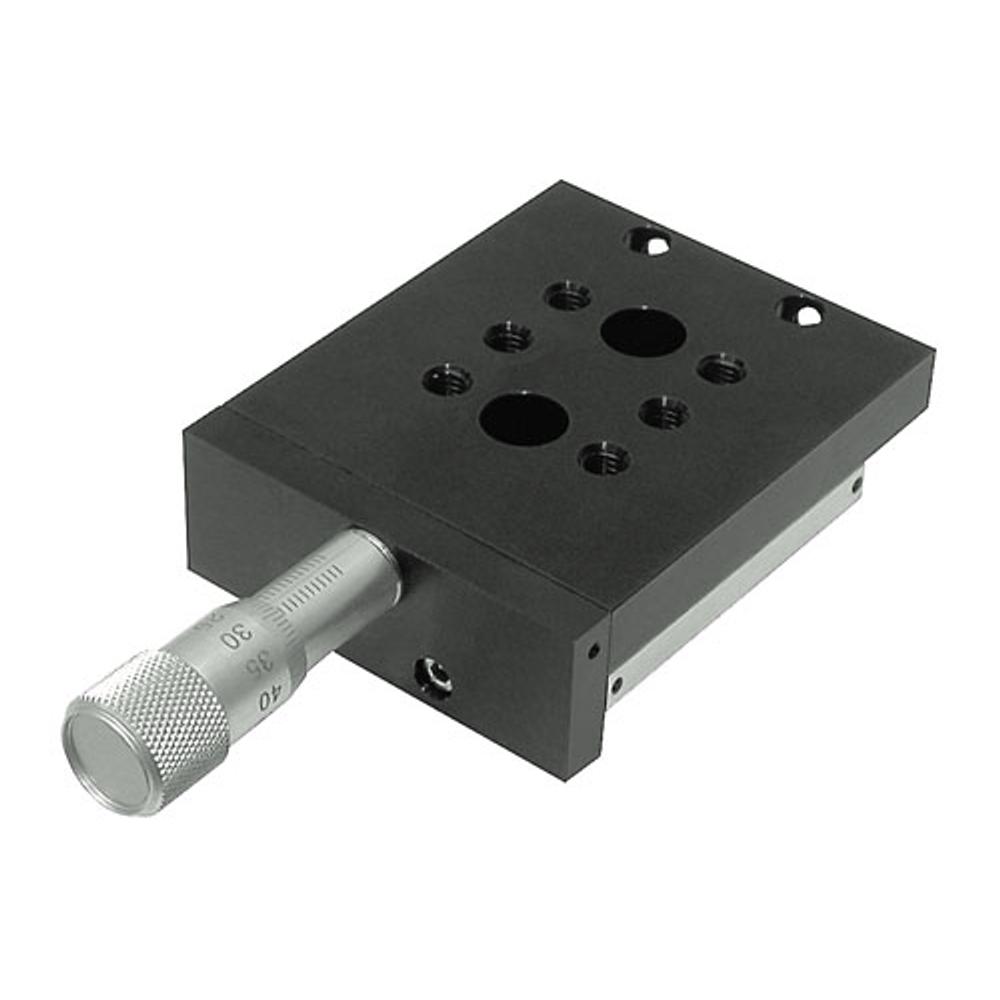

Basic Translation Stages 860-0085
• 10 mm travel • Low profile • X-Y-Z direct stacking Basic Translation Stages 860-0085 can be stacked for XYZ applications. 860-0085-01 stage should be stacked in XY axes with greater stability (by two M6 screws) and… Read more →
Order
| SKU | Product Type | Mount Material and Coat | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0085-01 | Manual Translation Stage | Black Anodised Aluminum | 10 mm | X | 10 kg |
Out of stock
$299
|
| 860-0085-02 | Manual Translation Stage | Black Anodised Aluminum | 10 mm | X | 10 kg |
Out of stock
$299
|
Specifications
| Product Type | Manual Translation Stage |
| Mount Material and Coat | Black Anodised Aluminum |
| Travel Range | 10 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 5 µm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 10 kg |
| Load Capacity Vertical | 3 kg |
| Weight | 0.3 kg |
| Width | 62 mm |
| Length | 70 mm |
| Height | 23 mm |
Description
- 10 mm travel
- Low profile
- X-Y-Z direct stacking
Basic Translation Stages 860-0085 can be stacked for XYZ applications. 860-0085-01 stage should be stacked in XY axes with greater stability (by two M6 screws) and 860-0085-02 should be used for Z axis (by two M6 screws).
860-0085-02 has less mounting provisions than 860-0085-01 with extra mounting holes for end items. 860-0085-02 has patterns of mounting holes:M6 on the platform, and M4 on the base.
The base has a Ø12 mm clear aperture not obscured over the whole travel range. The platform rolls on ball bearing guides, and is preloaded against the driving screw by springs.
Load capacity is up to 3 kg., when mounted vertically. The stages mount directly to their own type, or to other stages, optical tables. The stages are of black finished aluminium.
