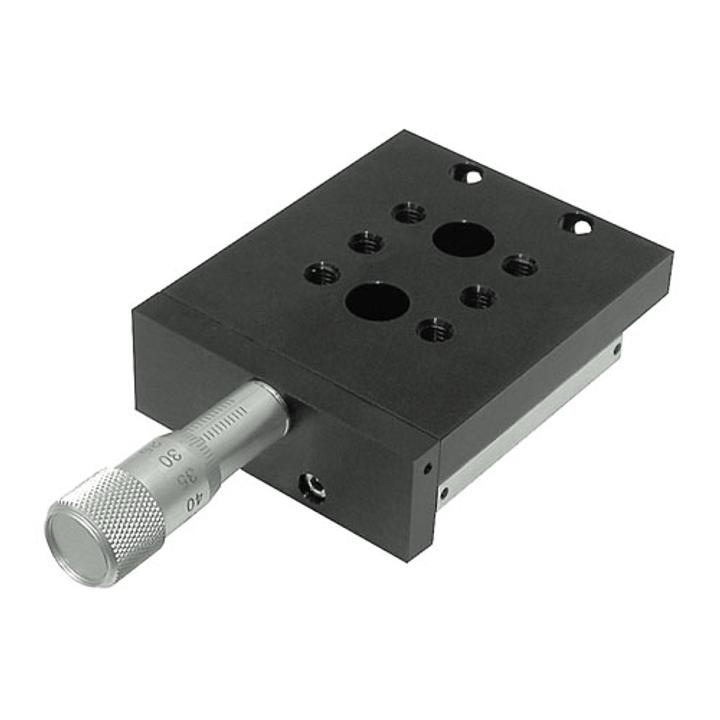

Basic Translation Stages 860-0085 SKU: 860-0085-02
• 10 mm travel • Low profile • X-Y-Z direct stacking Basic Translation Stages 860-0085 can be stacked for XYZ applications. 860-0085-01 stage should be stacked in XY axes with greater stability (by two M6 screws) and 860-0085-02 should be used for Z axis (by two M6…
Shared product specifications
These specifications apply across the Basic Translation Stages 860-0085 product family.
| Travel range | 10 mm | 10 mm |
|---|---|---|
| Sensitivity | 1 µm | 1 µm |
| Angular deviation | < 200 µrad | < 200 µrad |
| Tracking accuracy | 2 µm | 2 µm |
| Reading accuracy | 5 µm (1 / 2 division) | 5 µm (1 / 2 division) |
| Load capacity: / horizontal / vertical (relative to driving screw) against / vertical (relative to driving screw) away | 10 kg / 3 kg / 0.5 kg | 10 kg / 3 kg / 0.5 kg |
| 860-0085 Basic Translation Stages - DWG file | |
| 860-0085 Basic Translation Stages - STEP file |
Classification
| Type | translation|rotation |
Variant files
Technical drawings, models and data files for SKU 860-0085-02.
Product brochures
Shared documentation for the complete product family.
