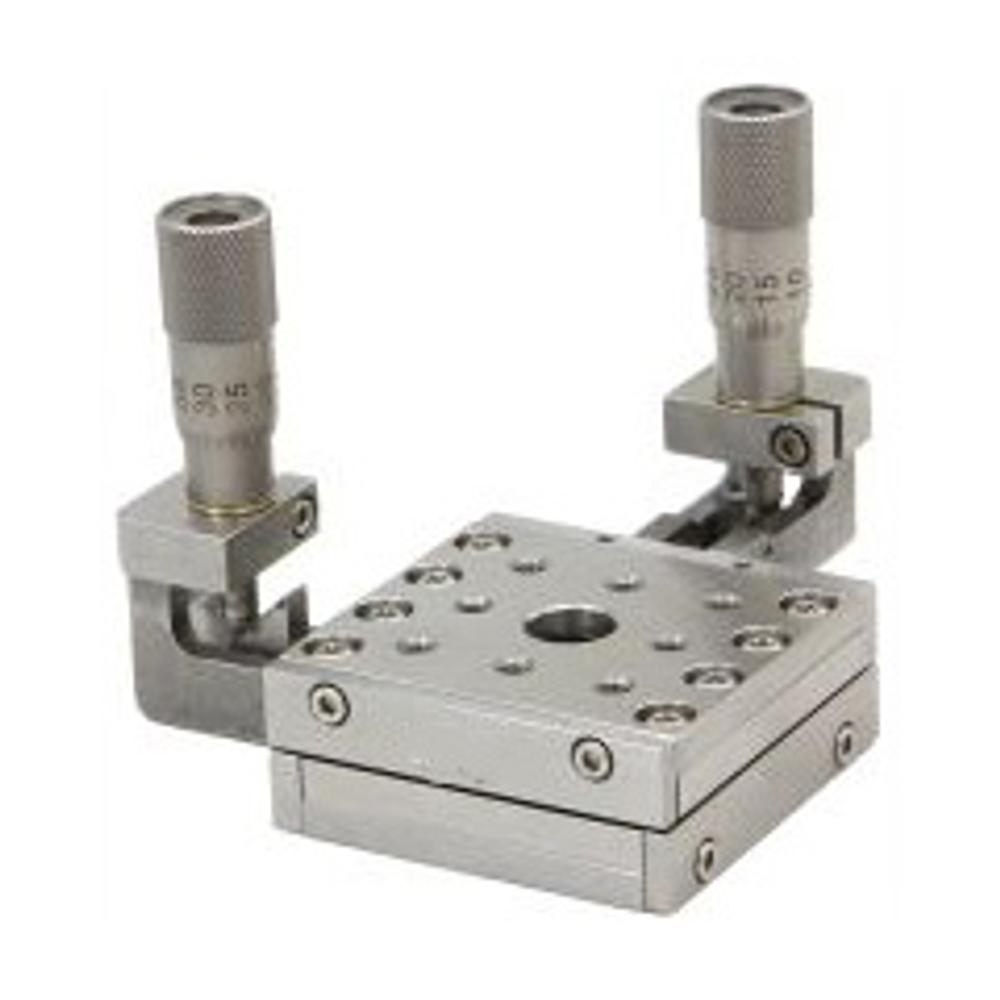

Vertical Drive Ultra Low Profile Steel Translation Stages 860-0092D
• Stable steel stage • 10 mm travel range • Driving micrometer screw • Precise ball bearings • Stainless steel and vacuum versions available
Configure & order — pick a catalog variant or configure your own
Product
Vacuum Compatibility
Any
Mount Material and Coat
Any
Possible Axis Configurations
Any
3
catalog variants — refine the spec to narrow it down.
| SKU | Product Type | Vacuum Compatibility | Mount Material and Coat | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|---|
| 860-0092-01SSVD | Manual Translation Stage | True | Stainless Steel | 10 mm | X | 6 kg |
Out of stock
—
|
| 860-0092-02D | Manual Translation Stage | False | Steel | 10 mm | XY | 6 kg |
Out of stock
$920
|
| 860-0092-02SSD | Manual Translation Stage | False | Stainless Steel | 10 mm | XY | 6 kg |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Manual Translation Stage |
| Travel Range | 10 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 5 µm |
| Load Capacity Horizontal | 6 kg |
| Load Capacity Vertical | 3 kg |
| Height | 74 mm |
Description
- Stable steel stage
- 10 mm travel range
- Driving micrometer screw
- Precise ball bearings
- Stainless steel and vacuum versions available
