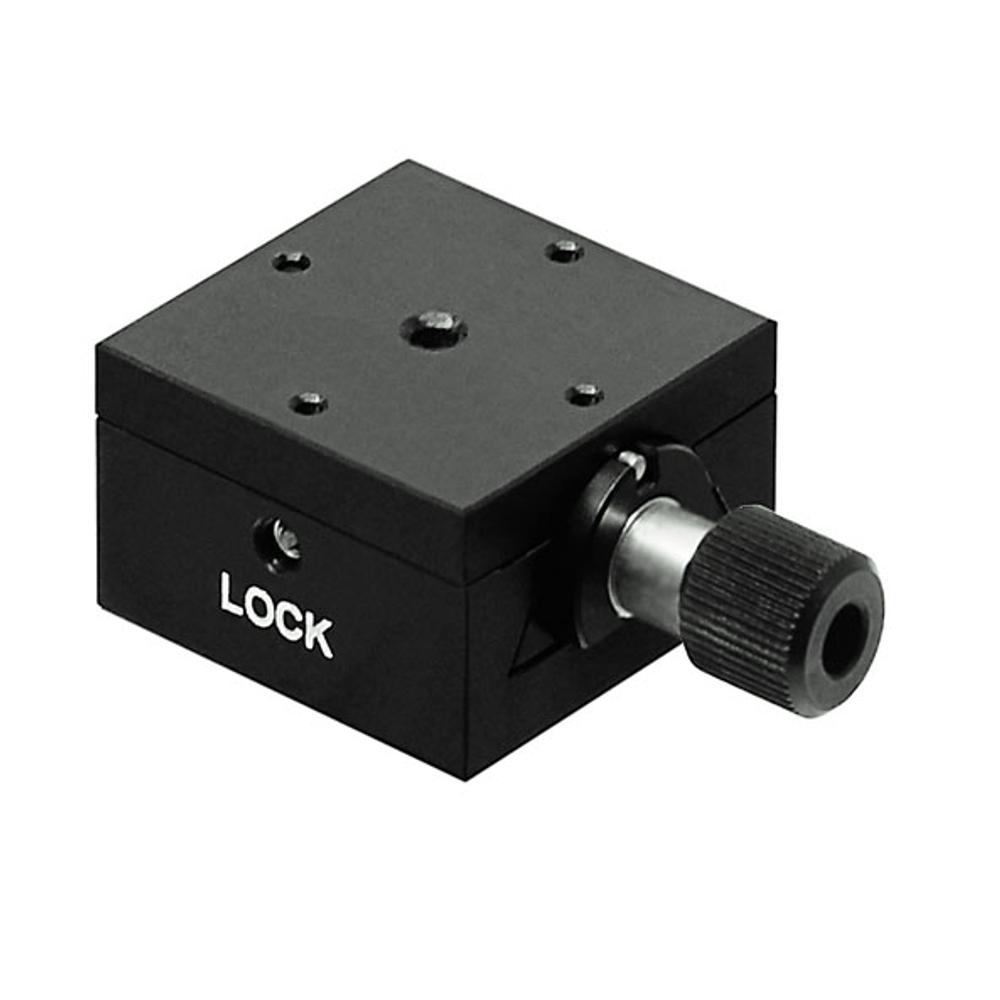

Dovetail Linear Translation Stage 860-0106
• Compact design • Robust Dovetail Mechanism • Rapid, Smooth Positioning • Lockable Moving Platform • XY Miniature Dovetail Stages The Dovetail Translation Stage is miniature, ideal for use in applications where space… Read more →
Configure & order — pick a catalog variant or configure your own
Product
Possible Axis Configurations
Any
2
catalog variants — refine the spec to narrow it down.
| SKU | Product Type | Mount Material and Coat | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0106 | Manual Translation Stage | Black Anodised Aluminum | 10 mm | X | 1.5 kg |
Out of stock
$99
|
| 860-0106 XYZ | Manual Translation Stage | Black Anodised Aluminum | 10 mm | XYZ | 1.5 kg |
Out of stock
$330
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Manual Translation Stage |
| Mount Material and Coat | Black Anodised Aluminum |
| Travel Range | 10 mm |
| Travel Sensitivity | 1 µm |
| Load Capacity Horizontal | 1.5 kg |
| Load Capacity Vertical | 1 kg |
| Lead Screw Pitch | 0.25 mm |
Description
- Compact design
- Robust Dovetail Mechanism
- Rapid, Smooth Positioning
- Lockable Moving Platform
- XY Miniature Dovetail Stages
The Dovetail Translation Stage is miniature, ideal for use in applications where space is limited.
The design uses a precision M4x0.25mm pitch lead screw for smooth linear positioning along the entire range of travel. The moving platform is lockable.
Various application accessories are also available.
