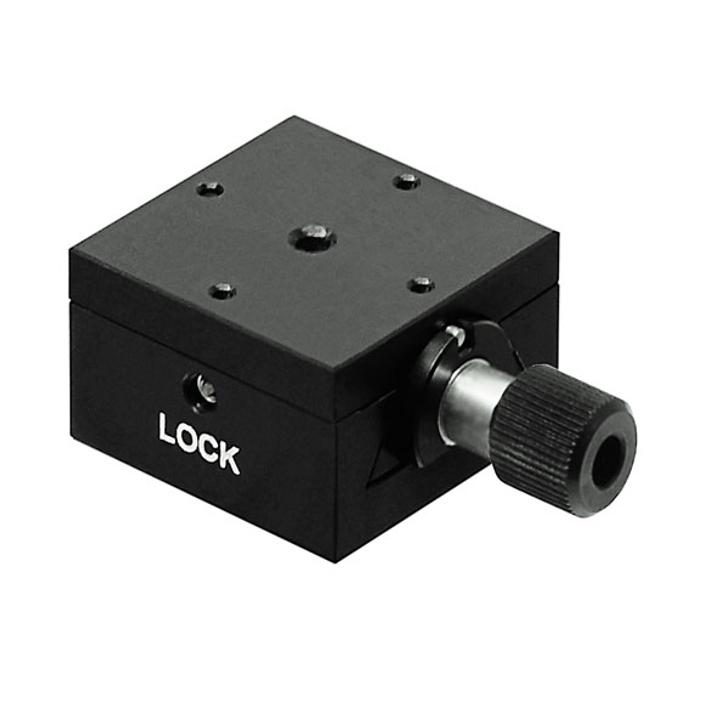

Dovetail Linear Translation Stage 860-0106 SKU: 860-0106
• Compact design • Robust Dovetail Mechanism • Rapid, Smooth Positioning • Lockable Moving Platform • XY Miniature Dovetail Stages The Dovetail Translation Stage is miniature, ideal for use in applications where space is limited. The design uses a precision M4x0.25mm pitch…
Variant specifications
| Specification | Value |
|---|---|
| Description | single stage |
Shared product specifications
These specifications apply across the Dovetail Linear Translation Stage 860-0106 product family.
| Travel range | 10 mm |
| Fine screw pitch | 0.25 mm |
| Sensitivity | 1 µm |
| Resolution | 1 µm |
| Drive location | Center drive |
| Bearings | Dovetail |
| Load capacity / Horizontal / Vertical | 1.5 kg / 1 kg |
| Material | Aluminium |
| Finish | Black anodized |
Classification
| Type | translation|rotation |
