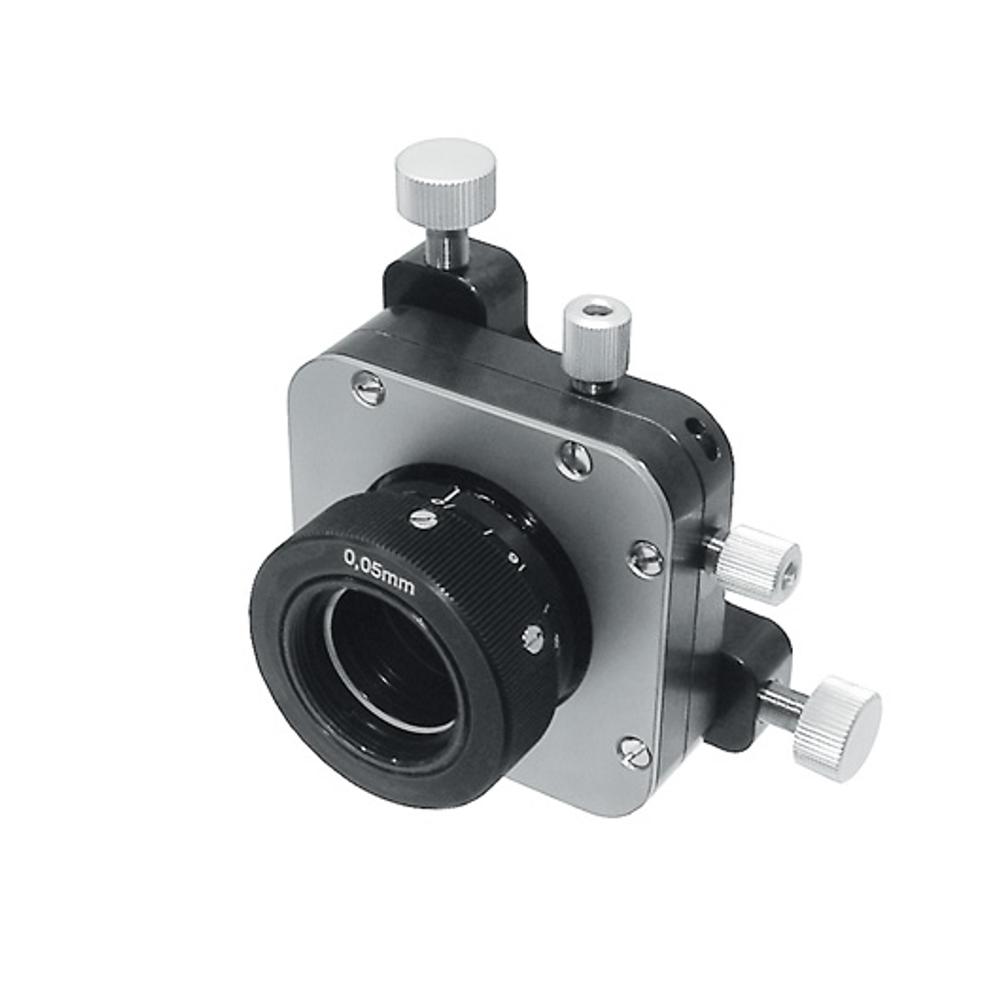

Five-Axes Optical Mount 840-0210
The Five-Axes Mounts are considered as a combination of: • side drive kinematic optical mount (840-0192/ 840-0193), • Y-Z translation optical mount (990-0050), • optical zoom option. The Five-Axes Optical Mount… Read more →
Listed in
Order
| SKU | Description | |
|---|---|---|
| 840-0207 | Two Axis Translation Optical Mount: -XY translation range |
Out of stock
$263
|
| 840-0208 | Three Axis Translation Optical Mount: -XY translation range; -Z translation range |
Out of stock
$272
|
| 840-0209 | Four Axis Kinematic Optical Mount: -Tilt/tip range; -XY translation range |
Out of stock
$328
|
| 840-0210 | Five Axis Kinematic Optical Mount: -Tilt/tip range; -XY translation range; -Z translation range |
Out of stock
$344
|
| 840-0210-01 | Five Axis Kinematic Optical Mount with reinforced springs for mounting of heavy objects |
Out of stock
—
|
Specifications
| Optics diameter | Ø25.4 mm |
| Tilt / tip range | ±2° / screw thread pitch 250 µm(100 TPI) |
| Sensitivity | 3 arcsec |
| X-Y translation range | ±2 mm / screw thread pitch 250 µm(100 TPI) |
| X-Y translation sensitivity | 1 µm |
| Z translation sensitivity | 1 µm |
| Z translation range | 10 mm |
| Weight | 0.28 kg |
| Material | aluminium |
| Finishing: / 840-0210 / 840-0210-10 | black anodized / vacuum compatible |
Description
The Five-Axes Mounts are considered as a combination of:
- side drive kinematic optical mount (840-0192/ 840-0193),
- Y-Z translation optical mount (990-0050),
- optical zoom option.
The Five-Axes Optical Mount 840-0210 consists of:
- top side regulation two-axes kinematic mirror mount with two screws (thread pitch 250 µm (100 TPI));
- two-axes translation stage with 2 mm travel range driven by two screws (thread pitch 250 µm (100 TPI));
- zoom providing 100 mm travel range.
840-0210 holds 1 inch optics. The adapters may be purchased to mount optics of different diameters. Five-Axes Optical Mounts have M4 holes on the bottom to accommodate different mounting systems directly or through tread adapters.
Vacuum compatible model of the mount can be provided on request.
