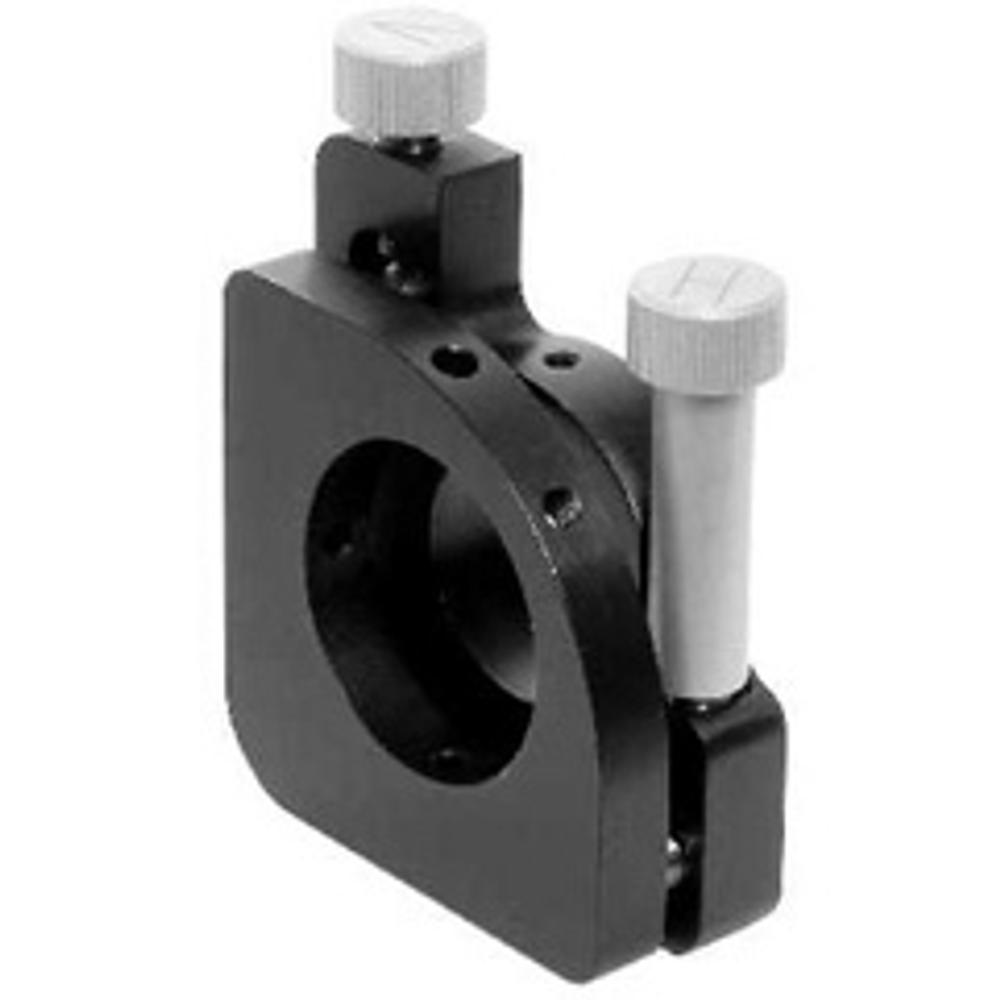

Kinematic Double Optical Mount of Side Drive 840-0192

Kinematic Double Optical Mount of Side Drive 840-0192

• For Ø25.4 mm (1 inch) optics • Clear aperture 23 mm • Kinematic design • Dimensions most compact among 1 inch optics mounts • Tilt/tip range ±2° • Sensitivity 3 arcsec • Both tilt and tip controlled from aside the… Read more →

From $119 Configure & order →

Order

SKU Product Type Angular Tilt Range Tilt Sensitivity Mount Clear Aperture Mounted Optics Diameter Number of Axes
840-0192 Manual Optical Positioner, 2-screws 5 Deg 3 sec 23 mm 25.4 mm 2
3 in stock Ships in: 2–5 calendar days
$119

Specifications

Product Type Manual Optical Positioner, 2-screws
Angular Tilt Range 5 Deg
Tilt Sensitivity 3 sec
Mount Clear Aperture 23 mm
Weight 0.1 kg
Mounted Optics Diameter 25.4 mm
Mounted Optics Thickness 0 mm - 10.5 mm
Width 55 mm
Length 22 mm
Height 77 mm
Number of Axes 2

Description

  • For Ø25.4 mm (1 inch) optics
  • Clear aperture 23 mm
  • Kinematic design
  • Dimensions most compact among 1 inch optics mounts
  • Tilt/tip range ±2°
  • Sensitivity 3 arcsec
  • Both tilt and tip controlled from aside the optical path
  • Ideal for dense optical schemes
  • Fine adjustment screws with 0.25 mm pitch
  • Hardened seats under adjustment screws
  • Accepts two pieces of optics: on the platform (adjustable) and on the base (not adjustable)
