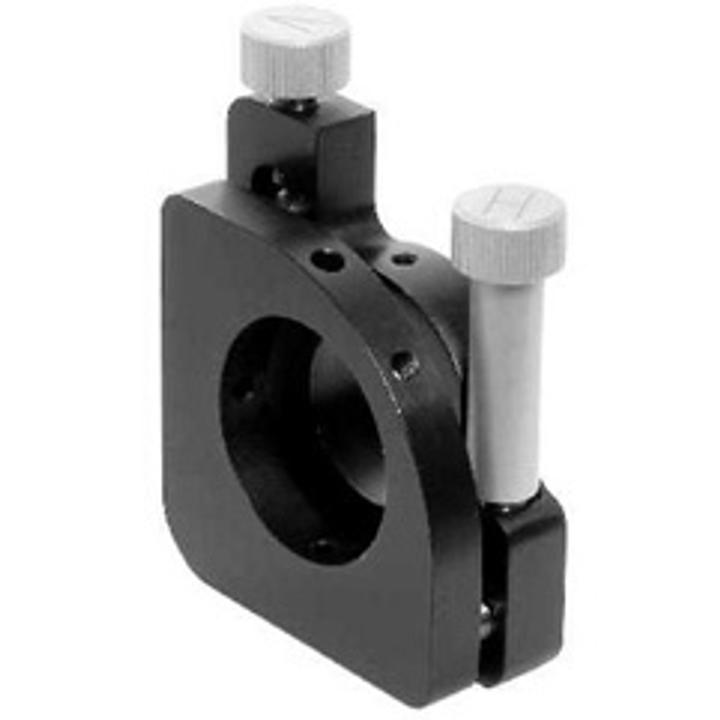

Kinematic Double Optical Mount of Side Drive 840-0192 SKU: 840-0192
• For Ø25.4 mm (1 inch) optics • Clear aperture 23 mm • Kinematic design • Dimensions most compact among 1 inch optics mounts • Tilt/tip range ±2° • Sensitivity 3 arcsec • Both tilt and tip controlled from aside the optical path • Ideal for dense optical schemes • Fine…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Optical Positioner, 2-screws |
| Angular Tilt Range | 5 Deg |
| Tilt Sensitivity | 3 sec |
| Mount Clear Aperture | 23 mm |
| Weight | 0.1 kg |
| Mounted Optics Diameter | 25.4 mm |
| Mounted Optics Thickness | 0 mm - 10.5 mm |
| Width | 55 mm |
| Length | 22 mm |
| Height | 77 mm |
| Number of Axes | 2 |
