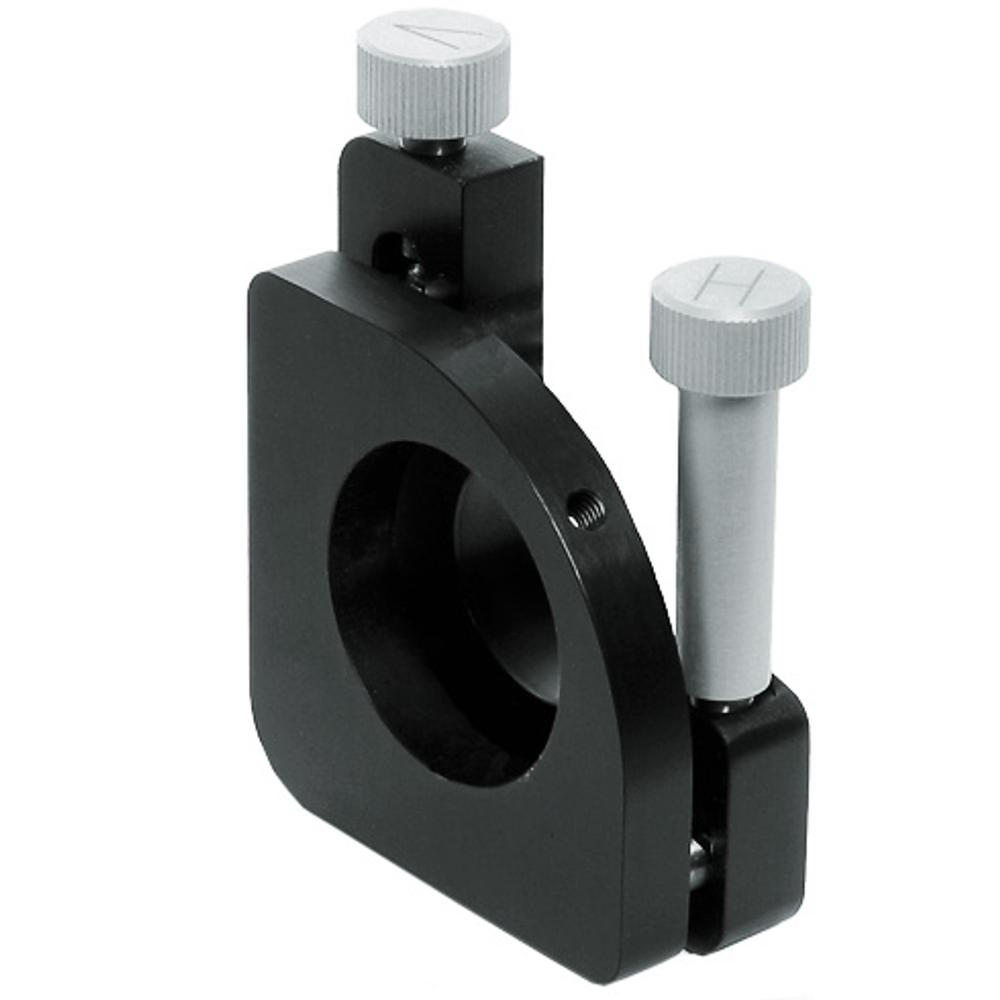

Kinematic Positioning Mount 840-0193
• for Ø25.4 mm (1 inch) ring holders • clear aperture of 23 mm • kinematic design • dimensions most compact among 1 inch optics mounts • tilt/tip range ±2° • sensitivity 3 arcsec • both tilt and tip controlled from… Read more →
Order
| SKU | Product Type | Angular Tilt Range | Tilt Sensitivity | Mount Clear Aperture | Mounted Optics Diameter | Number of Axes | |
|---|---|---|---|---|---|---|---|
| 840-0193 | Manual Optical Positioner, 2-screws | 4 Deg | 0 deg 0 min 3 sec | 23 mm | 25.4 mm - 25.4 mm | 2 |
Out of stock
$116
|
Specifications
| Product Type | Manual Optical Positioner, 2-screws |
| Angular Tilt Range | 4 Deg |
| Tilt Sensitivity | 0 deg 0 min 3 sec |
| Mount Clear Aperture | 23 mm |
| Weight | 0.12 kg |
| Mounting Thread | M4 |
| Mounted Optics Diameter | 25.4 mm - 25.4 mm |
| Width | 55 mm |
| Length | 22 mm |
| Height | 77 mm |
| Number of Axes | 2 |
Description
- for Ø25.4 mm (1 inch) ring holders
- clear aperture of 23 mm
- kinematic design
- dimensions most compact among 1 inch optics mounts
- tilt/tip range ±2°
- sensitivity 3 arcsec
- both tilt and tip controlled from aside the optical path
- ideal for dense optical schemes
- fine adjustment screws with 0.25 mm pitch
- hardened seats under adjustment screws
To prevent damage to the optics the fixing screw has a plastic tip.
