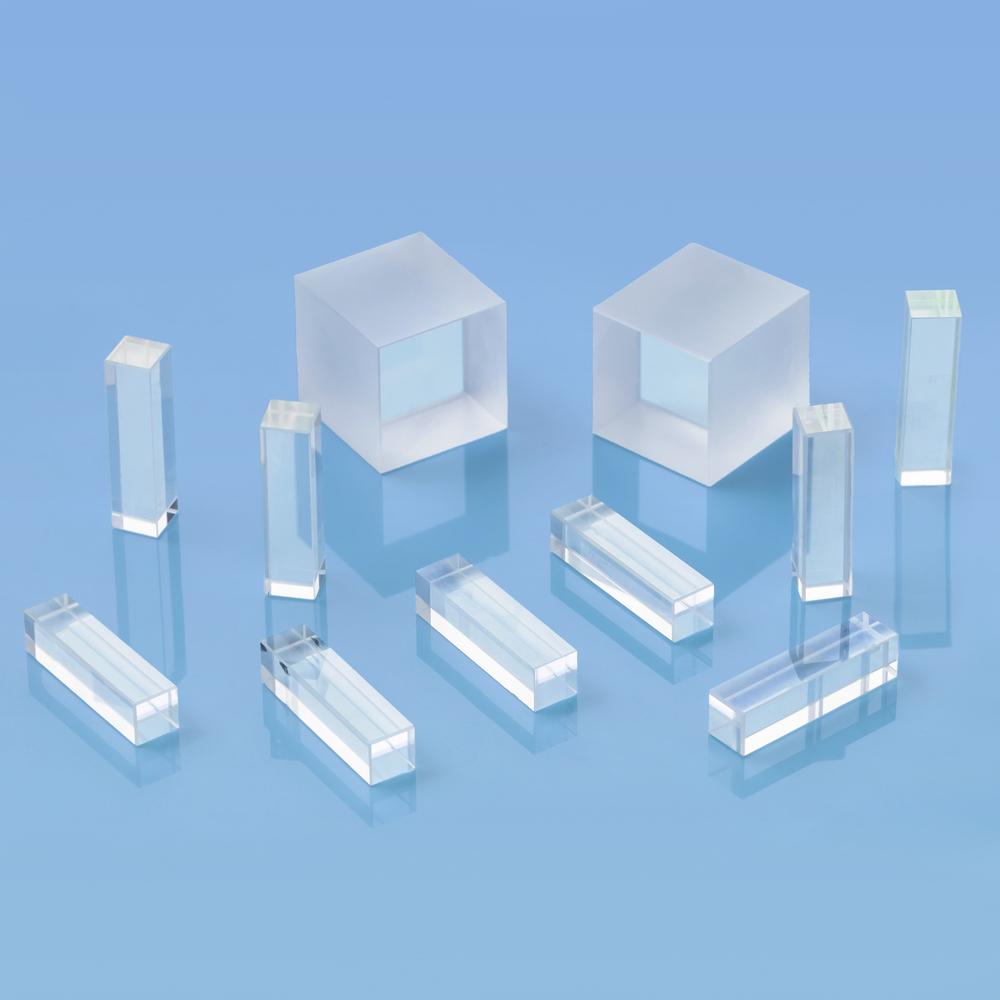

Lithium Triborate – LBO Crystals

Lithium Triborate (LBO) is a nonlinear optical crystal with a combination of unique features: • Wide transparency region • Broad Type 1 and Type 2 non-critical phase-matching (NCPM) range • Small walk-off angle • High… Read more →

From $612 Configure & order →

Volume discount

5–9 units −5%
10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Width 3 mm - 6 mm · 4 values Any mm

Height 3 mm - 6 mm · 4 values Any mm

Thickness 6 mm - 30 mm · 7 values Any mm

Applications Any

Product Type Any

Theta Angle 42.2 Deg - 90 Deg · 3 values Any Deg

Deg

Surface 1, Wavelength 1

Wavelength 515 nm - 1547 nm · 5 values Any nm

17 catalog variants — refine the spec to narrow it down.

SKU	Width	Height	Thickness	Applications	Pump Wavelength	Product Type	Theta Angle	Coating	Wavelength
LBO-0917-02	6 mm	6 mm	30 mm	—	—	T1	90 Deg	AR	1030 nm	Out of stock Ships in: 62–65 calendar days $1,878
LBO-0917-04	3 mm	3 mm	25 mm	—	—	T1	90 Deg	AR	532 nm	Out of stock Ships in: 62–65 calendar days $1,140
LBO-0917-05	3 mm	3 mm	20 mm	—	—	T1	90 Deg	AR	1547 nm	2 in stock Ships in: 2–5 calendar days $1,332
LBO-0917-06	4 mm	4 mm	12 mm	—	—	T1	90 Deg	AR	1064 nm	Out of stock Ships in: 62–65 calendar days $612
LBO-0917-07	4 mm	4 mm	15 mm	—	—	T1	90 Deg	AR	1064 nm	Out of stock Ships in: 62–65 calendar days $927
LBO-0917-11	6 mm	6 mm	10 mm	—	—	T1	90 Deg	AR	1064 nm	1 in stock Ships in: 2–5 calendar days $1,185
LBO-0917-14	3 mm	6 mm	15 mm	—	—	T2	42.2 Deg	AR	1064 nm	Out of stock Ships in: 62–65 calendar days $1,020
LBO-1118-03	6 mm	6 mm	6 mm	—	—	T2	51.9 Deg	AR	515 nm	Out of stock Ships in: 62–65 calendar days $840
LBO-1118-04	6 mm	6 mm	10 mm	—	—	T2	51.9 Deg	AR	515 nm	Out of stock Ships in: 62–65 calendar days $1,194
LBO-304	4 mm	4 mm	10 mm	SHG	1064 nm	T1	90 Deg	AR	1064 nm	Out of stock Ships in: 62–65 calendar days $612
LBO-305	4 mm	4 mm	15 mm	SHG	1064 nm	T1	90 Deg	AR	1064 nm	3 in stock Ships in: 2–5 calendar days $756
LBO-306	4 mm	4 mm	20 mm	SHG	1064 nm	T1	90 Deg	AR	1064 nm	Out of stock Ships in: 62–65 calendar days $894
LBO-307	4 mm	4 mm	10 mm	THG	1064 nm	T2	42.2 Deg	AR	1064 nm	Out of stock Ships in: 62–65 calendar days $612
LBO-308	4 mm	4 mm	15 mm	THG	1064 nm	T2	42.2 Deg	AR	1064 nm	Out of stock Ships in: 62–65 calendar days $756
LBO-501	5 mm	5 mm	10 mm	SHG	1064 nm	T1	90 Deg	AR	1064 nm	6 in stock Ships in: 2–5 calendar days $786
LBO-502	5 mm	5 mm	20 mm	SHG	1064 nm	T1	90 Deg	AR	1064 nm	Out of stock Ships in: 62–65 calendar days $1,128
LBO-507	5 mm	5 mm	10 mm	THG	1064 nm	T2	42.2 Deg	AR	1064 nm	1 in stock Ships in: 2–5 calendar days $786

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Width Upper Tolerance	0.1 mm
Width Lower Tolerance	-0.1 mm
Height Upper Tolerance	0.1 mm
Height Lower Tolerance	-0.1 mm
Material	LBO
Theta Angle Tolerance	0.5 Deg
Phi Angle Tolerance	0.5 Deg
Parallelism, angle	0 - 20 sec

Surface 1

Surface quality, MIL	10-5
Clear Aperture, %	>90 %

Surface 1, Wavelength 1

Coating	AR
AOI (angle of incidence)	0 deg

Surface 1, Wavelength 2

Coating	AR
AOI (angle of incidence)	0 deg

Surface 2

Surface quality, MIL	10-5
Clear Aperture, %	>90 %

Surface 2, Wavelength 1

Coating	AR
AOI (angle of incidence)	0 deg

Side Surface 1

Perpendicularity

0 - 5 min

Description

Lithium Triborate (LBO) is a nonlinear optical crystal with a combination of unique features:

Wide transparency region
Broad Type 1 and Type 2 non-critical phase-matching (NCPM) range
Small walk-off angle
High damage threshold
Wide acceptance angle
High optical homogeneity

LBO crystal is perfectly suitable for various nonlinear optical applications, like frequency doubling and tripling of high peak power pulsed Nd doped, Ti:Sapphire and Dye lasers, optical parametric oscillators (OPO) of both Type 1 and Type 2 phase-matching, non-critical phase-matching for conversion of CW and quasi-CW radiation.

We offer:
