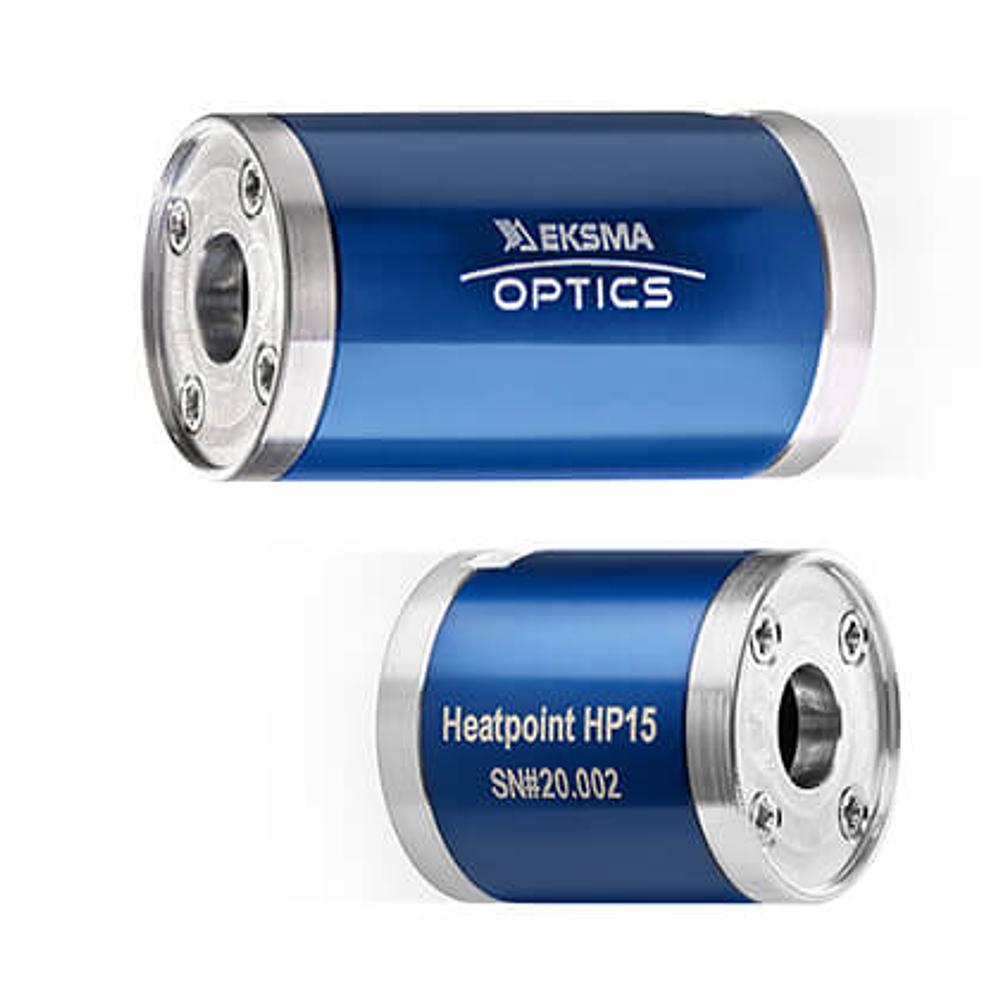

Heatpoint Oven for Nonlinear Crystals
Heatpoint is a compact round oven designed for heating and thermostabilization of humidity sensitive nonlinear crystals. Temperature of the oven can be adjusted in 25 – 70 °C range using HPC thermocontroller (needs to… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Crystal Size, mm | Mount Outer Diameter | Mount Thickness | Maximum Operating Temperature | |
|---|---|---|---|---|---|---|
| HP15-3x3 | Compact Oven HP15 | 3x3x15 | 25.4 mm | 30.5 mm | 70 °C |
Out of stock
Ships in: 47–50 calendar days
$420
|
| HP15-4x4 | Compact Oven HP15 | 4x4x15 | 25.4 mm | 30.5 mm | 70 °C |
2 in stock
Ships in: 2–5 calendar days
$420
|
| HP15-5x5 | Compact Oven HP15 | 5x5x15 | 25.4 mm | 30.5 mm | 70 °C |
1 in stock
Ships in: 2–5 calendar days
$420
|
| HP15-6x6 | Compact Oven HP15 | 6x6x15 | 25.4 mm | 30.5 mm | 70 °C |
Out of stock
Ships in: 47–50 calendar days
$420
|
| HP30-3x3 | Compact Oven HP30 | 3x3x30 | 25.4 mm | 45.5 mm | 70 °C |
Out of stock
Ships in: 47–50 calendar days
$420
|
| HP30-4x4 | Compact Oven HP30 | 4x4x30 | 25.4 mm | 45.5 mm | 70 °C |
2 in stock
Ships in: 2–5 calendar days
$420
|
| HP30-5x5 | Compact Oven HP30 | 5x5x30 | 25.4 mm | 45.5 mm | 70 °C |
1 in stock
Ships in: 2–5 calendar days
$420
|
| HP30-6x6 | Compact Oven HP30 | 6x6x30 | 25.4 mm | 45.5 mm | 70 °C |
1 in stock
Ships in: 2–5 calendar days
$420
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Mount Outer Diameter | 25.4 mm |
| Maximum Operating Temperature | 70 °C |
Description
Heatpoint is a compact round oven designed for heating and thermostabilization of humidity sensitive nonlinear crystals. Temperature of the oven can be adjusted in 25 – 70 °C range using HPC thermocontroller (needs to be ordered separately).
Because of their compact design, Heatpoint ovens can be easily installed into tight spaces. These ovens can be mounted in any standard one-inch optics positioning mount.
Heatpoints are available in two sizes: HP15 accepts crystals up to 15 mm in length, while slightly longer HP30 fits crystals up to 30 mm in length. The exact aperture of the crystal must be specified when ordering, as a special adapter is made for the installation of the crystal.
When used with an HPC thermocontroller, Heatpoint ovens exhibit precise long-term stability and are ideal for keeping nonlinear crystals at their optimal operational temperature, preventing moisture condensation on crystal’s faces.
