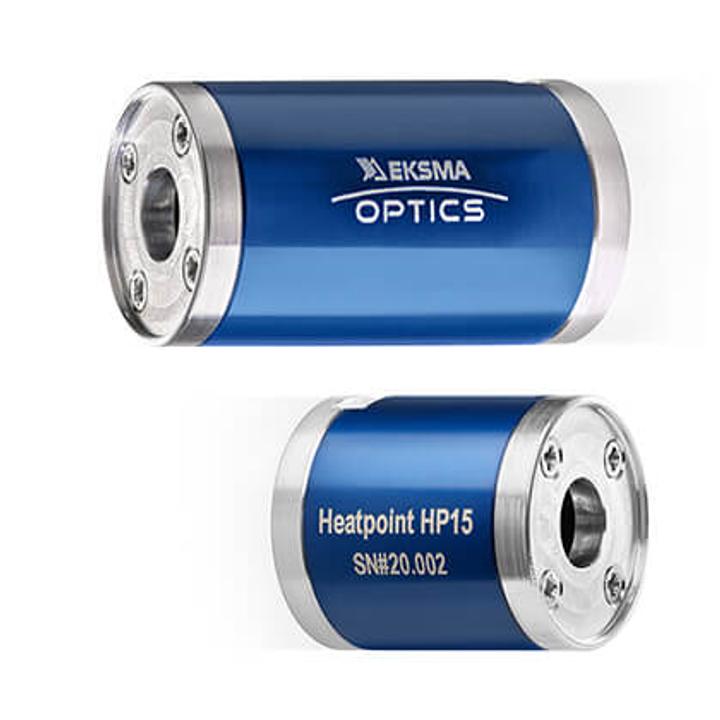

Heatpoint Oven for Nonlinear Crystals SKU: HP30-3x3
Heatpoint is a compact round oven designed for heating and thermostabilization of humidity sensitive nonlinear crystals. Temperature of the oven can be adjusted in 25 – 70 °C range using HPC thermocontroller (needs to be ordered separately). Because of their compact design,…
Variant specifications
| Specification | Value |
|---|---|
| Description | Oven for crystal size 3x3 mm, length up to 30 mm |
Shared product specifications
These specifications apply across the Heatpoint Oven for Nonlinear Crystals product family.
| Model | Heatpoint / HP15 | Heatpoint / HP30 |
|---|---|---|
| Maximum crystal dimensions | 6 x 6 x 15 mm | 6 x 6 x 30 mm |
| Temperature tuning range | 25 - 70 °C | 25 - 70 °C |
| Temperature tuning step / (when used with HPC thermocontroller) | 0.1 °C (knob) / 0.001 °C (remote) | 0.1 °C (knob) / 0.001 °C (remote) |
| Long-term stability | ± 0.1 °C | ± 0.1 °C |
| Temperature ramp rate | 1-10 °C / min ¹⁾ | 1-10 °C / min ¹⁾ |
| Powering requirements | 12 V DC | 12 V DC |
| Power consumption (PMAX) | <8 W | <8 W |
| Oven-to-thermocontroller connector | Picoblade, Single row, 4 circuit ("Lo") | Picoblade, Single row, 4 circuit ("Lo") |
| Dimensions (oven) | ø25.4 x 30.5 mm | ø25.4 x 45.5 mm |
| Dimensions (HPC thermocontroller) | 54 x 23 x 70 mm | 54 x 23 x 70 mm |
| Oven cable length | 0.45 m | 0.45 m |
