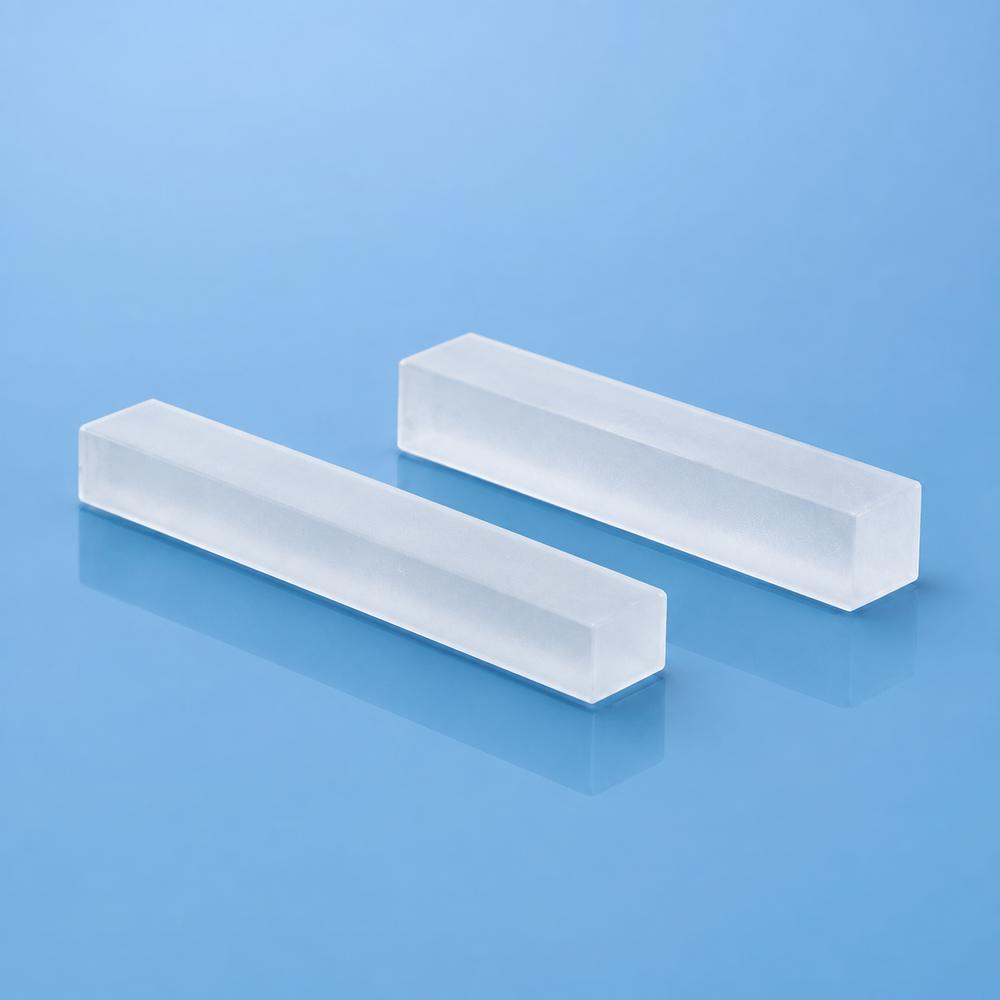

LBO Nonlinear Crystals

LBO Nonlinear Crystals

LBO crystals feature the highest damage threshold, small walk-off and have perfect efficiency. These crystals are the best choice for harmonics generation of relatively high power and high repetition rate Q-switched or… Read more →

From $294 Configure & order →

Volume discount

  • 5–9 units −5%
  • 10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Width 3 mm - 5 mm · 3 values Any mm
mm
Thickness 10 mm - 50 mm · 5 values Any mm
mm
Applications Any
Product Type Any
Theta Angle 42.2 Deg - 90 Deg · 2 values Any Deg
Deg

Surface 1, Wavelength 1

Wavelength 532 nm - 1064 nm · 2 values Any nm
nm
13 catalog variants — refine the spec to narrow it down.
SKU Width Thickness Applications Pump Wavelength Product Type Theta Angle Coating Wavelength
LBO-301 4 mm 10 mm SHG 1064 nm - 1064 nm T1 90 Deg AR 1064 nm - 1064 nm
1 in stock Ships in: 2–5 calendar days
$612
LBO-302 4 mm 15 mm SHG 1064 nm - 1064 nm T1 90 Deg AR 1064 nm - 1064 nm
3 in stock Ships in: 2–5 calendar days
$756
LBO-303 4 mm 20 mm SHG 1064 nm - 1064 nm T1 90 Deg AR 1064 nm - 1064 nm
Out of stock Ships in: 62–65 calendar days
$894
LBO-401 3 mm 10 mm SHG 1064 nm - 1064 nm T1 90 Deg AR 1064 nm - 1064 nm
3 in stock Ships in: 2–5 calendar days
$294
LBO-402 3 mm 15 mm SHG 1064 nm - 1064 nm T1 90 Deg AR 1064 nm - 1064 nm
Out of stock Ships in: 62–65 calendar days
$390
LBO-404 3 mm 15 mm SHG 1064 nm - 1064 nm T1 90 Deg AR 1064 nm - 1064 nm
3 in stock Ships in: 2–5 calendar days
$390
LBO-405 3 mm 20 mm SHG 1064 nm - 1064 nm T1 90 Deg AR 1064 nm - 1064 nm
Out of stock Ships in: 62–65 calendar days
$486
LBO-406 3 mm 10 mm THG 1064 nm - 1064 nm — 42.2 Deg AR 1064 nm - 1064 nm
4 in stock Ships in: 2–5 calendar days
$294
LBO-407 3 mm 15 mm THG 1064 nm - 1064 nm T2 42.2 Deg AR 1064 nm - 1064 nm
2 in stock Ships in: 2–5 calendar days
$390
LBO-409 3 mm 30 mm SHG 1064 nm - 1064 nm T1 90 Deg AR 532 nm - 532 nm
Out of stock Ships in: 62–65 calendar days
$852
LBO-410 3 mm 50 mm SHG 1064 nm - 1064 nm T1 90 Deg AR 1064 nm - 1064 nm
Out of stock Ships in: 62–65 calendar days
$1,560
LBO-503 5 mm 15 mm SHG 1064 nm - 1064 nm T1 90 Deg AR 1064 nm - 1064 nm
Out of stock Ships in: 62–65 calendar days
$918
LBO-508 5 mm 15 mm THG 1064 nm - 1064 nm T2 42.2 Deg AR 1064 nm - 1064 nm
5 in stock Ships in: 2–5 calendar days
$918

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Shape Type Square
Width Upper Tolerance 0.1 mm
Width Lower Tolerance -0.1 mm
Height Upper Tolerance 0.1 mm
Height Lower Tolerance -0.1 mm
Pump Wavelength 1064 nm - 1064 nm
Material Type Crystalline Material
Material LBO
Theta Angle Tolerance 0.5 Deg
Phi Angle Tolerance 0.5 Deg
Parallelism, angle 0 deg 0 min 0 sec - 0 deg 0 min 20 sec

Surface 1

Surface Shape Plano
Surface quality, grind or polish Polished
Power and Irregularity, fringes @633 nm -(0.25)
Clear Aperture, % 90 % - 100 %

Surface 1, Wavelength 1

Coating AR

Surface 1, Wavelength 2

Coating AR

Surface 2

Surface Shape Plano
Surface quality, grind or polish Polished
Power and Irregularity, fringes @633 nm -(0.25)
Clear Aperture, % 90 % - 100 %

Surface 2, Wavelength 1

Coating AR

Side Surface 1

Perpendicularity 0 deg 0 min 0 sec - 0 deg 5 min 0 sec

Description

LBO crystals feature the highest damage threshold, small walk-off and have perfect efficiency. These crystals are the best choice for harmonics generation of relatively high power and high repetition rate Q-switched or mode-locked lasers.

KTP crystals feature the highest efficiency and are suited for low average power or CW lasers applications. These crystals are temperature change insensitive and operate with sharply focused or highly divergent laser beams.

Large aperture DKDP crystals are used for high energy Q-switched lasers with large beam diameters.
