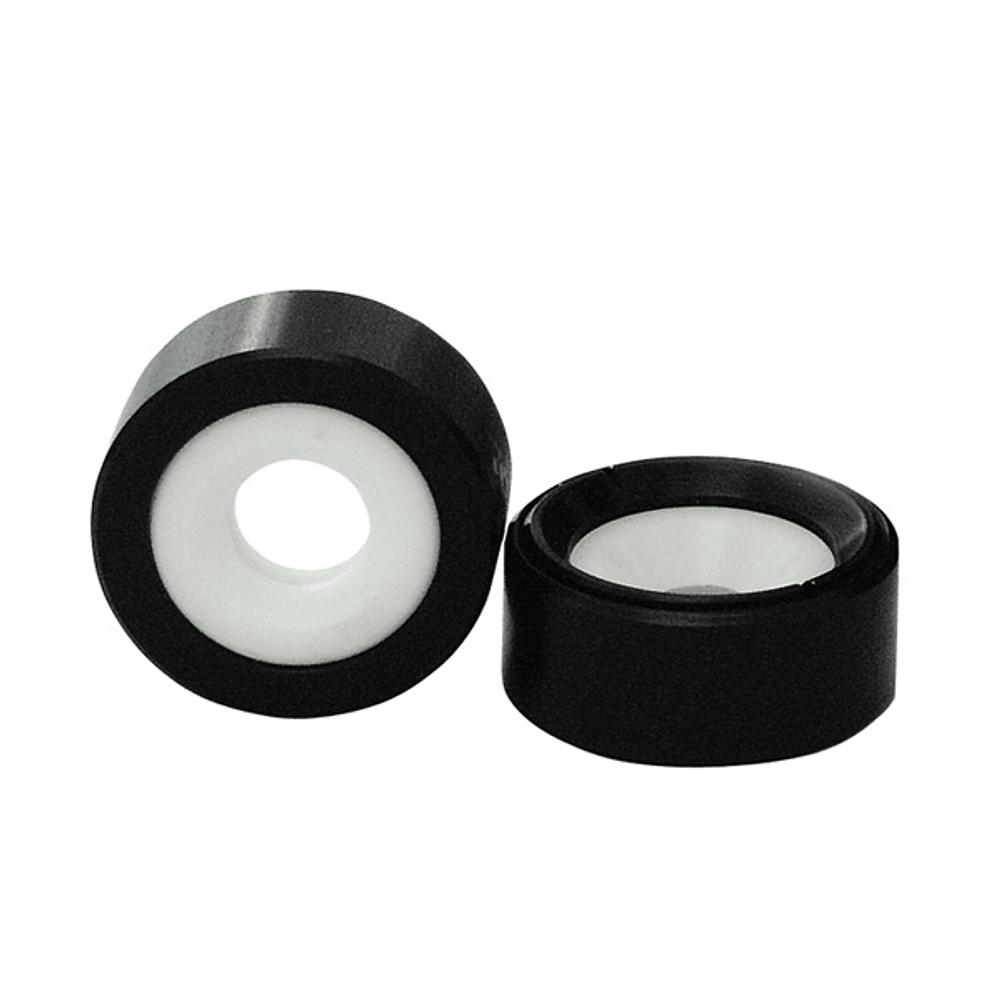

Open Ring Holders

• Black anodized aluminum body • Special adapters to fit your particular crystal • Easy assembling and disassembling Ring mounts made of black anodized aluminum are available for safe and convenient handling of… Read more →

From $60 Configure & order →

Configure & order — pick a catalog variant or configure your own

Product

Product Type Any

Crystal Size, mm Any

Mount Thickness 6 mm - 22.5 mm · 5 values Any mm

5 catalog variants — refine the spec to narrow it down.

SKU	Product Type	Crystal Size, mm	Mount Outer Diameter	Mount Thickness
830-0001-06	Non-linear crystal holder <0.5 mm	6x6x0.5	25.4 mm	6 mm	Out of stock Ships in: 62–65 calendar days $60
830-0001-10	Non-linear crystal holder >0.5 mm (Short)	6x6x1	25.4 mm	10.5 mm	Out of stock Ships in: 62–65 calendar days $60
830-0001-13	Non-linear crystal holder >0.5 mm (Short)	12x12x6	25.4 mm	13.5 mm	Out of stock Ships in: 62–65 calendar days $60
830-0001-17	Non-linear crystal holder >0.5 mm (Long)	12x12x10	25.4 mm	17.5 mm	Out of stock Ships in: 62–65 calendar days $108
830-0001-22	Non-linear crystal holder >0.5 mm (Long)	12x12x15	25.4 mm	22.5 mm	Out of stock Ships in: 62–65 calendar days $108

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Sealing	Not Sealed
Mount Outer Diameter	25.4 mm
Mount Material and Coating	Black Anodised Aluminum

Description

Black anodized aluminum body
Special adapters to fit your particular crystal
Easy assembling and disassembling

Ring mounts made of black anodized aluminum are available for safe and convenient handling of nonlinear crystals.

Holder 830-0001-06 comes with white anodized aluminium adapter, crystals have to be glued into it. No glue is used for fixation of the crystal into other open ring holders, which are provided with teflon adapters.

The standard sizes of ring holders are Ø25.4 mm or Ø30 mm with thickness range from 6 mm to 17.5 mm depending on crystal size.
