LBO Crystals for SHG of Yb:KGW/KYW Frequency Conversion
Eksma Optics recommends the LBO crystals of a thickness indicated below for Type 1 SHG at 1030 nm depending on fundamental wavelength pulse duration, assuming it's spectrum limited Gausian pulse. SHG@1030 nm LBO crystal… Read more →
Volume discount
- 5–9 units −10%
- 10+ units −15%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Width | Thickness | Applications | Pump Wavelength | Product Type | Theta Angle | Coating | Wavelength | |
|---|---|---|---|---|---|---|---|---|---|
| LBO-1001H | 10 mm | 0.9 mm | SHG | 1030 nm - 1030 nm | T1 | 90 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$1,188
|
| LBO-1002H | 10 mm | 1.9 mm | SHG | 1030 nm - 1030 nm | T1 | 90 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$1,188
|
| LBO-1003H | 10 mm | 2.8 mm | SHG | 1030 nm - 1030 nm | T1 | 90 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$1,314
|
| LBO-1004H | 10 mm | 3.7 mm | SHG | 1030 nm - 1030 nm | T1 | 90 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$1,584
|
| LBO-601H | 6 mm | 0.9 mm | SHG | 1030 nm - 1030 nm | T1 | 90 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$654
|
| LBO-602H | 6 mm | 1.9 mm | SHG | 1030 nm - 1030 nm | T1 | 90 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$654
|
| LBO-603H | 6 mm | 2.8 mm | SHG | 1030 nm - 1030 nm | T1 | 90 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$714
|
| LBO-604H | 6 mm | 3.7 mm | SHG | 1030 nm - 1030 nm | T1 | 90 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$828
|
| LBO-801H | 8 mm | 0.9 mm | SHG | 1030 nm - 1030 nm | T1 | 90 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$846
|
| LBO-802H | 8 mm | 1.9 mm | SHG | 1030 nm - 1030 nm | T1 | 90 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$846
|
| LBO-804H | 8 mm | 3.7 mm | SHG | 1030 nm - 1030 nm | T1 | 90 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$1,098
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Square |
| Applications | SHG |
| Pump Wavelength | 1030 nm - 1030 nm |
| Mounted | True |
| Material Type | Crystalline Material |
| Material | LBO |
| Product Type | T1 |
| Theta Angle | 90 Deg |
| Phi Angle | 13.8 Deg |
| Parallelism, angle | 0 deg 0 min 0 sec - 0 deg 0 min 20 sec |
Surface 1
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.25) |
Surface 1, Wavelength 1

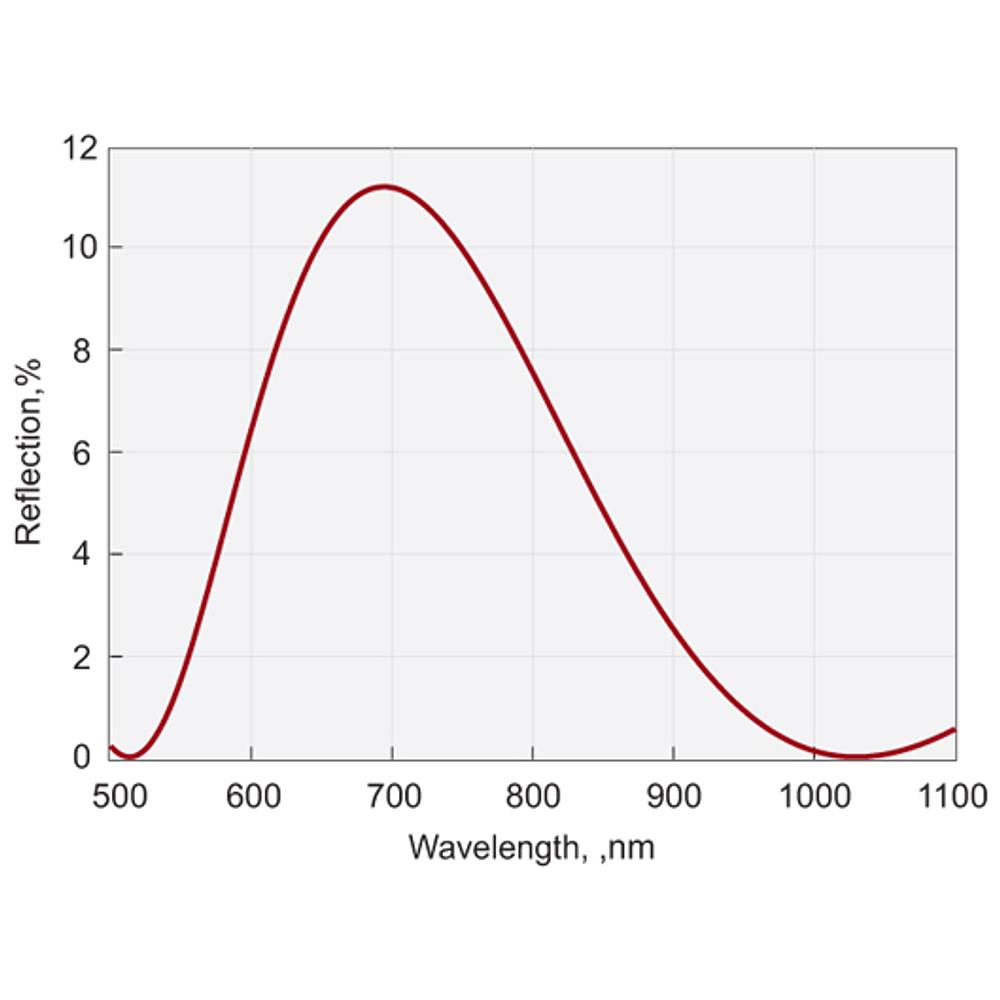

| Coating | AR |
| Wavelength | 515 nm - 515 nm |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Surface 1, Wavelength 2
| Coating | AR |
| Wavelength | 1030 nm - 1030 nm |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Surface 2
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.25) |
Surface 2, Wavelength 1
| Coating | AR |
| Wavelength | 515 nm - 515 nm |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Surface 2, Wavelength 2
| Coating | AR |
| Wavelength | 1030 nm - 1030 nm |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Description
Eksma Optics recommends the LBO crystals of a thickness indicated below for Type 1 SHG at 1030 nm depending on fundamental wavelength pulse duration, assuming it's spectrum limited Gausian pulse. SHG@1030 nm LBO crystal thickness 50 fs 0.9 mm 100 fs 1.9 mm 150 fs 2.8 mm 200 fs 3.7 mm Note: LBO crystals can be supplied with clear aperture up to 35 mm diameter.
