Cesium Lithium Borate – CLBO Crystals
Cesium Lithium Borate CsLiB₆O₁₀ (CLBO) is a nonlinear crystal perfect for harmonic generation in the UV range with a transmission cut-off edge reaching 180 nm. Compared with common BBO nonlinear optical material, CLBO… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Width | Thickness | Product Type | Theta Angle | Coating | Wavelength | |
|---|---|---|---|---|---|---|---|
| CLBO-401S | 4 mm | 10 mm | T1 | 61.5 Deg | AR | 532 nm - 532 nm |
Out of stock
Ships in: 62–65 calendar days
$3,588
|
| CLBO-501S | 5 mm | 8 mm | T1 | 61.5 Deg | AR | 532 nm - 532 nm |
Out of stock
Ships in: 62–65 calendar days
$4,092
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Square |
| Width Upper Tolerance | 0.1 mm |
| Width Lower Tolerance | -0.1 mm |
| Height Upper Tolerance | 0.1 mm |
| Height Lower Tolerance | -0.1 mm |
| Mounted | True |
| Mount Outer Diameter | 25.4 mm |
| Material Type | Crystalline Material |
| Material | CLBO |
| Product Type | T1 |
| Theta Angle | 61.5 Deg |
| Theta Angle Tolerance | 0.5 Deg |
| Phi Angle | 45 Deg |
| Phi Angle Tolerance | 0.5 Deg |
| Parallelism, angle | 0 deg 0 min 0 sec - 0 deg 0 min 20 sec |
Surface 1
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | 0(0.3) |
| Clear Aperture, % | 90 % - 100 % |
Surface 1, Wavelength 1
| Coating | AR |
| Wavelength | 532 nm - 532 nm |
Surface 1, Wavelength 2
| Coating | AR |
| Wavelength | 266 nm - 266 nm |
Surface 2
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | 0(0.3) |
| Clear Aperture, % | 90 % - 100 % |
Surface 2, Wavelength 1
| Coating | AR |
| Wavelength | 532 nm - 532 nm |
Surface 2, Wavelength 2
| Coating | AR |
| Wavelength | 266 nm - 266 nm |
Side Surface 1
| Perpendicularity | 0 deg 0 min 0 sec - 0 deg 5 min 0 sec |
Description
Cesium Lithium Borate CsLiB₆O₁₀ (CLBO) is a nonlinear crystal perfect for harmonic generation in the UV range with a transmission cut-off edge reaching 180 nm. Compared with common BBO nonlinear optical material, CLBO crystals feature larger spectral and temperature acceptance, better angle tolerance, and a smaller walk-off angle. CLBO is a good choice for frequency doubling (SHG), and it is suitable for frequency quadrupling (FHG) of high-power Nd:YAG laser systems. CLBO shows no saturation for high-power generation due to the absence of two-photon absorption typically observed in BBO and KDP crystals.
Some of standard applications:
- Harmonic generation (up to fifth) of Nd-doped lasers
- Frequency doubling and tripling of Alexandrite, Ti:Sapphire lasers

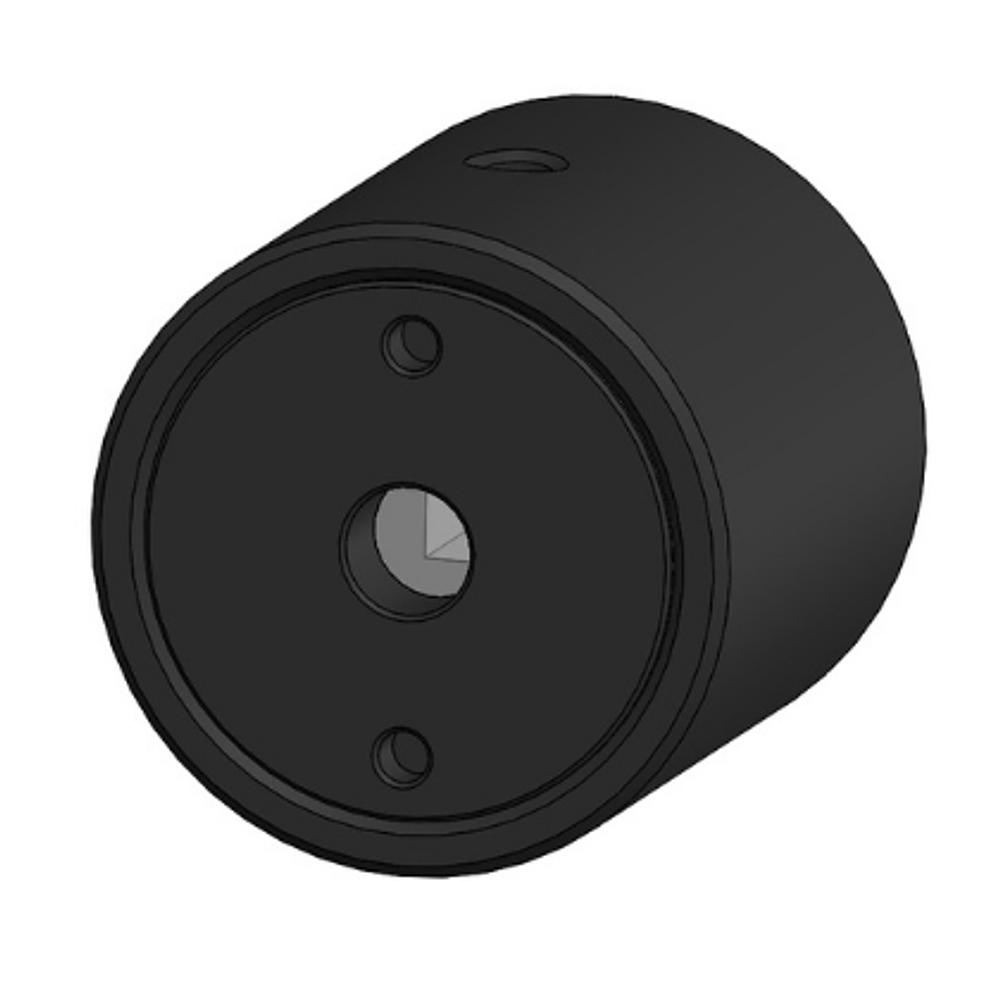

CLBO is a highly hygroscopic NLO crystal material. Therefore, standard CLBO crystals are supplied sealed in 1 inch (ø25.4 mm) housings with anti-reflection coated UV FS protective windows. Unmounted CLBO crystals are available upon custom request.
To ensure safe use of CLBO crystals it is important to consider:
- Temperature: the temperature should be kept stable. The recommended temperature range is 20 - 60 °C. We recommend using HP200 oven with HPC thermocontroller.
- Humidity: high humidity (>30%) can affect the performance of CLBO crystals. It is important to store them in a dry environment.
