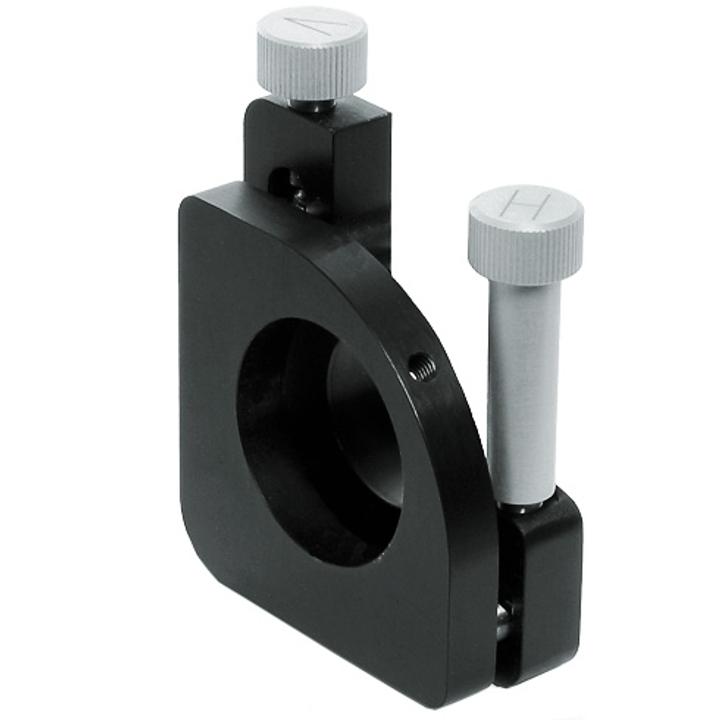

Kinematic Positioning Mount 840-0193 SKU: 840-0193
• for Ø25.4 mm (1 inch) ring holders • clear aperture of 23 mm • kinematic design • dimensions most compact among 1 inch optics mounts • tilt/tip range ±2° • sensitivity 3 arcsec • both tilt and tip controlled from aside the optical path • ideal for dense optical schemes • fine…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Optical Positioner, 2-screws |
| Angular Tilt Range | 4 Deg |
| Tilt Sensitivity | 0 deg 0 min 3 sec |
| Mount Clear Aperture | 23 mm |
| Weight | 0.12 kg |
| Mounting Thread | M4 |
| Mounted Optics Diameter | 25.4 mm - 25.4 mm |
| Width | 55 mm |
| Length | 22 mm |
| Height | 77 mm |
| Number of Axes | 2 |
