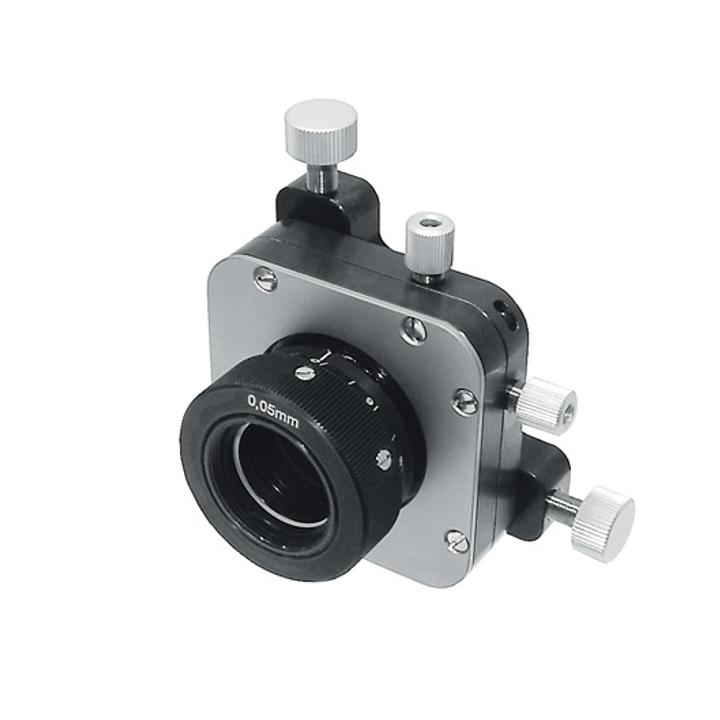

Five-Axes Optical Mount 840-0210 SKU: 840-0207
The Five-Axes Mounts are considered as a combination of: • side drive kinematic optical mount (840-0192/ 840-0193), • Y-Z translation optical mount (990-0050), • optical zoom option. The Five-Axes Optical Mount 840-0210 consists of: • top side regulation two-axes…
Variant specifications
| Specification | Value |
|---|---|
| Description | Two Axis Translation Optical Mount: -XY translation range |
Shared product specifications
These specifications apply across the Five-Axes Optical Mount 840-0210 product family.
| Optics diameter | Ø25.4 mm |
| Tilt / tip range | ±2° / screw thread pitch 250 µm(100 TPI) |
| Sensitivity | 3 arcsec |
| X-Y translation range | ±2 mm / screw thread pitch 250 µm(100 TPI) |
| X-Y translation sensitivity | 1 µm |
| Z translation sensitivity | 1 µm |
| Z translation range | 10 mm |
| Weight | 0.28 kg |
| Material | aluminium |
| Finishing: / 840-0210 / 840-0210-10 | black anodized / vacuum compatible |
