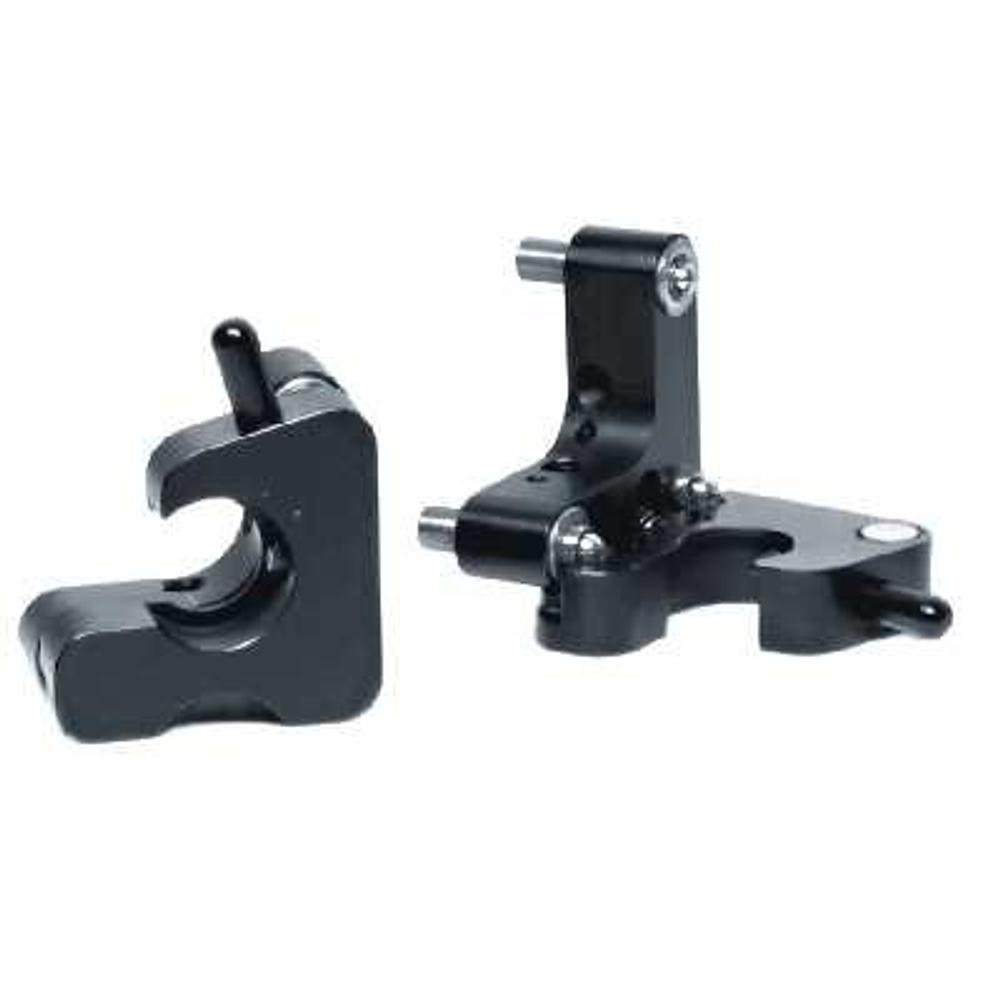

Miniature Flipping Mirror/Beamsplitter Mounts 840-0155-06, 840-0155-07, 840-0155-08, 840-0155-09
• Flip optics in and out of the optical scheme • Repeatability 20 µrad • Tilt/tip range 9° • Sensitivity 8 arcsec • For Ø12.7 and Ø25.4 mm (0.5” and 1”) optics • Clear edge design suits schemes where beam passes close… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
Accepts optics
Any
or
Clear Aperture, mm
Any
or
Type
Mirror version
4
catalog variants — refine the spec to narrow it down.
| SKU | Type · Accepts optics · Clear Aperture, mm · Note | |
|---|---|---|
| 840-0155-06 | -·dia 12.7 mm (0.5 inch)·dia 10.2·Note: Mirror version is a right hand version of the standard. |
Out of stock
$126
|
| 840-0155-07 | Mirror version·dia 12.7 mm (0.5 inch)·dia 10.2·Note: Mirror version is a right hand version of the standard. |
Out of stock
$126
|
| 840-0155-08 | -·dia 25.4 mm (1 inch)·dia 24·Note: Mirror version is a right hand version of the standard. |
Out of stock
$133
|
| 840-0155-09 | Mirror version·dia 25.4 mm (1 inch)·dia 24·Note: Mirror version is a right hand version of the standard. |
Out of stock
$133
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| 840-0155-06 Miniature Flipping Mirror / Beamsplitter Mount - Solidworks file | |
| 840-0155-06 Miniature Flipping Mirror / Beamsplitter Mount - DWG file | |
| 840-0155-06 Miniature Flipping Mirror / Beamsplitter Mount - STEP file |
Description
- Flip optics in and out of the optical scheme
- Repeatability 20 µrad
- Tilt/tip range 9°
- Sensitivity 8 arcsec
- For Ø12.7 and Ø25.4 mm (0.5” and 1”) optics
- Clear edge design suits schemes where beam passes close to optics' edge
- Kinematic design
- High stability
- Hex key drive
- Weight 0.02 kg
- "Mirror" version available
Material: black anodized aluminium
