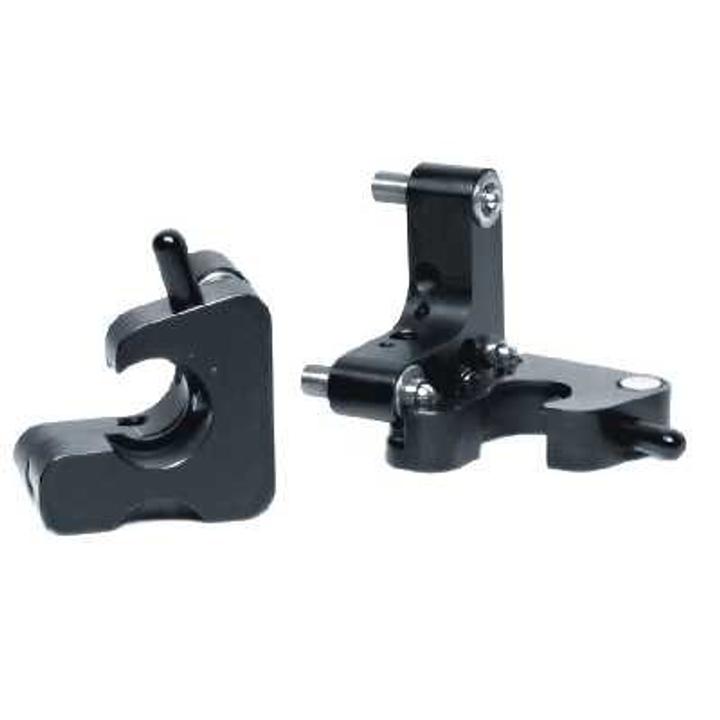

Miniature Flipping Mirror/Beamsplitter Mounts 840-0155-06, 840-0155-07, 840-0155-08, 840-0155-09 SKU: 840-0155-09
• Flip optics in and out of the optical scheme • Repeatability 20 µrad • Tilt/tip range 9° • Sensitivity 8 arcsec • For Ø12.7 and Ø25.4 mm (0.5” and 1”) optics • Clear edge design suits schemes where beam passes close to optics' edge • Kinematic design • High stability • Hex key…
Variant specifications
| Specification | Value |
|---|---|
| Type | Mirror version |
| Accepts optics | dia 25.4 mm (1 inch) |
| Clear Aperture, mm | dia 24 |
| Note | Note: Mirror version is a right hand version of the standard. |
Shared product specifications
These specifications apply across the Miniature Flipping Mirror/Beamsplitter Mounts 840-0155-06, 840-0155-07, 840-0155-08, 840-0155-09 product family.
| 840-0155-06 Miniature Flipping Mirror / Beamsplitter Mount - Solidworks file | |
| 840-0155-06 Miniature Flipping Mirror / Beamsplitter Mount - DWG file | |
| 840-0155-06 Miniature Flipping Mirror / Beamsplitter Mount - STEP file |
Product brochures
Shared documentation for the complete product family.
