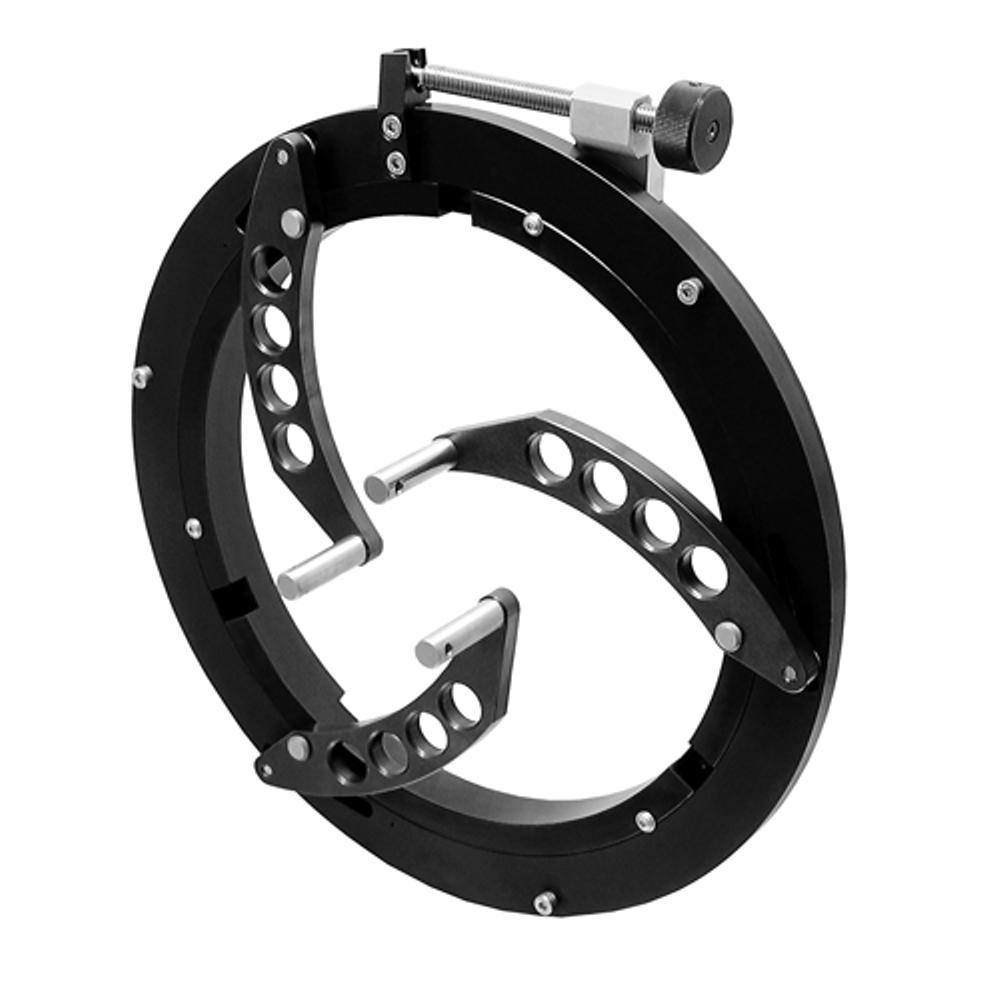

Large Self-Centering Lens/Optics Mounts 830-0027
Self-Centering Optics Mount 830-0027 reliably centres and securely holds round optics and cylindrical objects. This mount is particularly valuable when lenses of different diameters are being used interchangeably and… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Mounted Optics Diameter | Mounting Thread | |
|---|---|---|---|---|
| 830-0027-08B | Self-Centering Optics Mount | 25.4 mm - 203.2 mm | M6 |
Out of stock
$514
|
| 830-0027-12 | Self-Centering Optics Mount | 76 mm - 305 mm | — |
Out of stock
$2,586
|
| 830-0027-12B | Self-Centering Optics Mount | 76 mm - 305 mm | M6 |
Out of stock
$2,637
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Self-Centering Optics Mount |
Description
Self-Centering Optics Mount 830-0027 reliably centres and securely holds round optics and cylindrical objects. This mount is particularly valuable when lenses of different diameters are being used interchangeably and repeated centering at a constant height is necessary. Optical elements are fixed and centered when adjusting driving screw at the top of the device. Heavy optical components are secured by wedged rods.
- For optics up to 8'' (830-0027-08) or up to 12'' (830-0027-12) in diameter
- 3 mounting holes Ø6.5 mm for mounting to a vertical surface, for example input/output of a spectrometer
- Baseplate for mounting to optical table included (3 M4 holes for 830-0027-08; 3 M6 holes for 830-0027-12)
- Reverse operation – holding hollow objects from inside
- Made of black anodized aluminium and black oxidation steel
Vacuum version is available on request.
