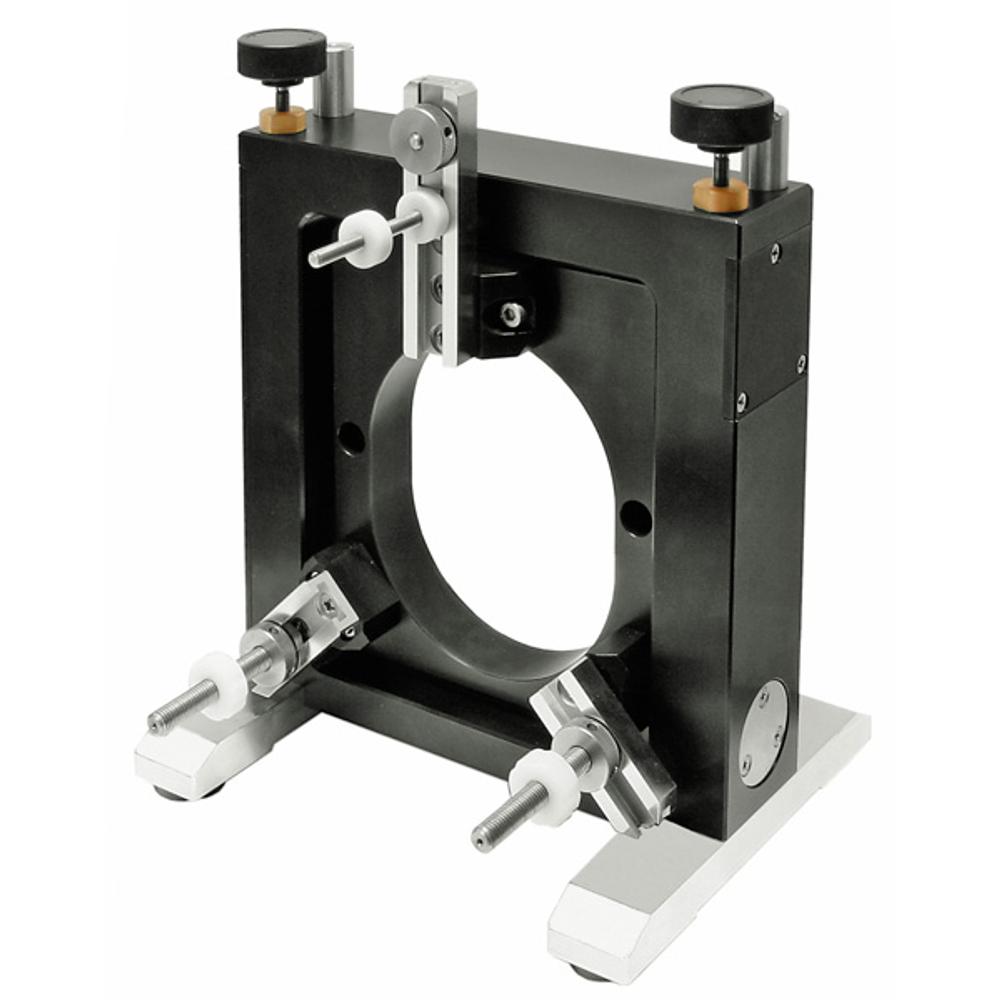

Large Adjustable Kinematic Optical Mount 840-0005
The super fine and stable Kinematic Optical Mounts 840-0005 and 840-0005-01 are designed for large and heavy optics. 840-0005-01 features an optional universal element holder that can be mounted on the backside of the… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Axes · Note | |
|---|---|---|
| 840-0005 | 2 axes·* x axis translation range 30 mm. |
Out of stock
—
|
| 840-0005-01 | 3* axes·* x axis translation range 30 mm. |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| Fine screw thread | M6x0.35 |
| Horizontal rotation range | ±1.5° |
| Vertical yaw range | ±1.5° |
| Sensitivity | 0.5 arcsec |
| Load capacity | Load capacity |
| 840-0005 | 10 kg |
| 840-0005-01 | 6 kg |
| Compatible with optical elements: | Compatible with optical elements: |
| Diameter | 115÷250 mm* |
| Thickness | up to 52 mm** |
| Weight | 10.1 kg |
Description
The super fine and stable Kinematic Optical Mounts 840-0005 and 840-0005-01 are designed for large and heavy optics.
840-0005-01 features an optional universal element holder that can be mounted on the backside of the stage to make it easily usable for testing of different optical parts of various sizes and shapes.
- Long-term stability
- Adjustment screw thread pitch – 0.35 mm
- Vertical placement of the screws
- Designed for optics ⌀115÷250 mm, thickness up to 52 mm
