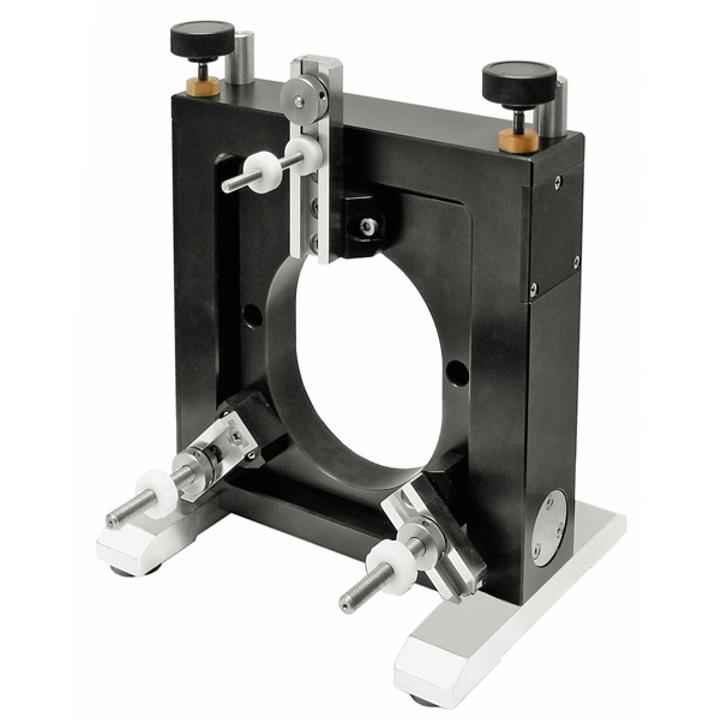

Large Adjustable Kinematic Optical Mount 840-0005 SKU: 840-0005-01
The super fine and stable Kinematic Optical Mounts 840-0005 and 840-0005-01 are designed for large and heavy optics. 840-0005-01 features an optional universal element holder that can be mounted on the backside of the stage to make it easily usable for testing of different…
Variant specifications
| Specification | Value |
|---|---|
| Axes | 3* axes |
| Note | * x axis translation range 30 mm. |
Shared product specifications
These specifications apply across the Large Adjustable Kinematic Optical Mount 840-0005 product family.
| Fine screw thread | M6x0.35 |
| Horizontal rotation range | ±1.5° |
| Vertical yaw range | ±1.5° |
| Sensitivity | 0.5 arcsec |
| Load capacity | Load capacity |
| 840-0005 | 10 kg |
| 840-0005-01 | 6 kg |
| Compatible with optical elements: | Compatible with optical elements: |
| Diameter | 115÷250 mm* |
| Thickness | up to 52 mm** |
| Weight | 10.1 kg |
