Optical Mounts
-
Mirror Mounts of Side Regulation 840-0110-T, 840-0110-TE
The Mirror Mount of Side Regulation 840-0110-T enables to increase greatly the thickness of optical elements as it has a convenient access to the regulation handles. L-shaped f...
From $12
-
Mirror Optical Mount 840-4120-B
• For Ø25.4 mm (1 inch) optics • 2 contact points for optimum stability • One edge of the optics stays clear, helpful in schemes where beams are very closely situated to each ot...
From $66
-
Mounts for Iris Diaphragms
Eksma Optics offfers mounts for iris diaphragms.
-
Mounts with Hard Seats 840-0057
• Original stabilized L-shaped flat spring • 1" and 2" optics mounts • Precise (sensitivity of 3 arcsec and 1 µm) • Stable, with hard steel or sapphire seats under adjustmen...
From $87
-
Objective Mount 840-0120-T
• Adjustment of both angles is controlled from one side • Ideal for high density optical schemes • Fine adjustment screws with 0.25 mm pitch • Travel range ±2° • Hardened insert...
From $74
-
Optical Component Mounts 830-0037
Optical Component Mounts 830-0037 can be used to hold round and thin optical elements of standard sizes. Mounts vary in dimensions so as to support diameters from 12,7 to 75 mm ...
From $23
-
Optical Mount of Side Drive with Adjustable Polarizer Holder 840-0197
• For Ø 25.4 mm (1 inch) optics • Clear aperture 23 mm • Kinematic design • Dimensions most compact among 1 inch optics mounts • Tilt/tip range ±2° • Sensitivity 3 arcsec • Both...
From $227
-
Optics Clamp 830-0050
The 830-0050 clamp is especially convenient for fast clamping of optical elements on bases, translators, rotators, and other surfaces with M6 and M4 tapped holes. Rod Material:...
From $23
-
Plate Clamp 830-0055
Plate Clamp 830-0055 holds thin lightweight plates, like filters, transparencies, resolution targets and razor blades used in knife edge experiments. These black anodized alumi...
From $20
-

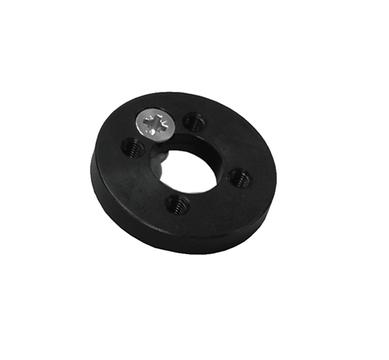

Platform Adapter 840-0100-A5
840-0100-A5 Platform Adapter allows to turn the optics to a convenient position.
From $14
-
Precise Adjustable Kinematic Mount for Large Optics 840-0005-05
840-0005-05 Kinematic Mount is a modification of the standard version of the Large Adjustable Kinematic Optical Mount 840-0005. This model is designed for even larger optical co...
From $3,300
-
Precision & High Stability Mirror/Beamsplitter Mounts 840-0036
Highly Stable Precision L-shaped Optical Mounts are designed on the basis of two angular adjustment mounts, and are made of steel with black chemical finishing. Flat spring of a...
From $131
-
Precision & High Stability Optics Mounts 840-0040, 840-0050
Highly Stable Precision L-shaped Optical Mounts are designed on the basis of two angular adjustment mounts, and are made of steel with black chemical finishing. Flat spring of a...
From $78
-
Prism and Polarizing Cube Adapters 840-0100-A4
Connecting cone allows to adjust the adapter to the required angle by hand. The adapter allows to work with two beams situated very closely. Stainless steel fixing screw clutche...
From $29
-
Prism/Optics Mount 840-1120-B
• Handy two orthogonal angular adjustments • 9° range • Sensitivity 3 arcsec • M6×0.25 adjustment screws provide precise kinematic control • Made of black anodized aluminium • "...
From $72
-
Rectangular Optic Mounts 840-0161
• Two models: • 840-0161-20 - for optics 0-28 mm tall • 840-0161-50 - for optics 22-52 mm tall • 8° adjustment range, 6 arcsec sensitivity • Right- and Left-Hand versions av...
From $106
-
Rectangular Optics Holder 830-0100, 830-0101, 830-0110, 830-0111
Rectangular optics holders 830-0100 and 830-0110 provide easy and safe mounting of rectangular optics. • Guiding pins ensure correct and reliable positioning of optical compone...
From $50
-
Round Optics Adapter 840-0100-A1
The Round Optics Adapter 840-0100-A1 may be attached to the platform of 840-0102-T mount on any side. Optics rests on the two contact lines – the edges of the cut-off corner – ...
From $29
-
Round Optics Adapters 840-0110-A1
840-0110-A1 can be attached to the platform of 840-0110-T mount on any side. Optics is firmly held by a stainless steel fixing screw and it rests against two contact lines - the...
From $42
-
Self-Centering Large Aperture Optical Mount 840-0007
• Tilt/tip range ±2° • More linear axes are possible on request • For optics ranging between 5-100 or 5-150 mm in diameter 840-0007 Self-Centring Optical Mounts are designed fo...
From $527
-
Self-Centering Lens/Optics Mounts 830-0025
Self-Centering Lens/Optics Mounts reliably centres and securely holds round optics and cylindrical objects. This device is particularly valuable when lenses of different diamete...
From $119
-
Small Optical Mount of Side Drive 840-0102-T
840-0102-T is designed to hold optics in schemes of high density. Adapters are available for round and rectangular lenses, mirrors and beamsplitters or polarizing cubes (see 840...
From $10
-

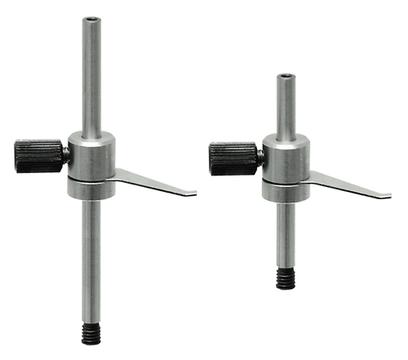

Spring Clamps 840-0111
Spring Clamps 840-0111 are used to clamp components directly to the surfaces of optical tables or translation stages. These Clamps are used to hold prismatic elements like glass...
From $17
-
Universal Adjustable Lens/Optics Mounts 830-0035
Universal Adjustable Lens/Optics Mounts 830-0035-04 and 830-0035-02 are used to accommodate any round objects of any thickness, like lenses, mirrors or lasers. Three support sha...
From $143
-

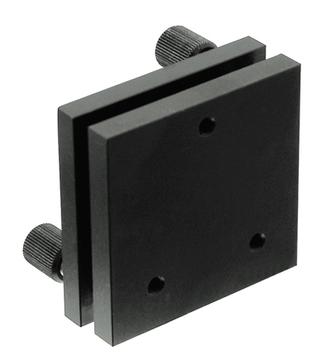

Universal Mirror Mount/Platform 840-0052
Universal Mirror Mount/Platform 840-0052 is suited for precise adjustments of standard mirrors, which can be directly bound to it. M4 hole on the back of the Mount allows it to ...
From $80
-

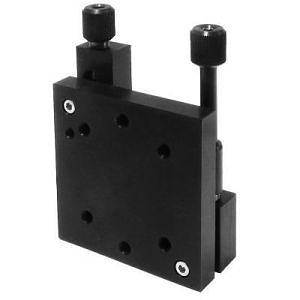

Universal Mirror Mount/Platform 840-0140-T
• Adjustment of both angles is controlled from one side • Ideal for high density optical schemes • Fine adjustment screws with 0.25 mm pitch • Travel range ±2° • Hardened insert...
From $92
-
Universal Plate Holder 830-0075
Universal Plate Holder 830-0075 is designed for long and thick components, and can fit elements from 0 to 12 mm in width. M6 hole for mounting on posts is provided in base.
From $87
-

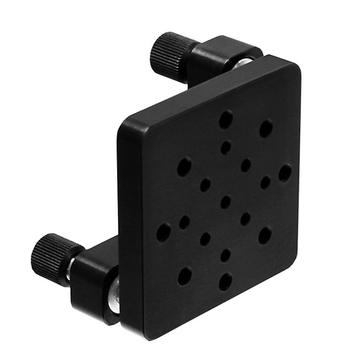

Universal Platform Mount 840-2120-B
• Handy two orthogonal angular adjustments • 9° range • Sensitivity 3 arcsec • M6×0.25 adjustment screws provide precise kinematic control • Made of black anodized aluminium Un...
From $62
