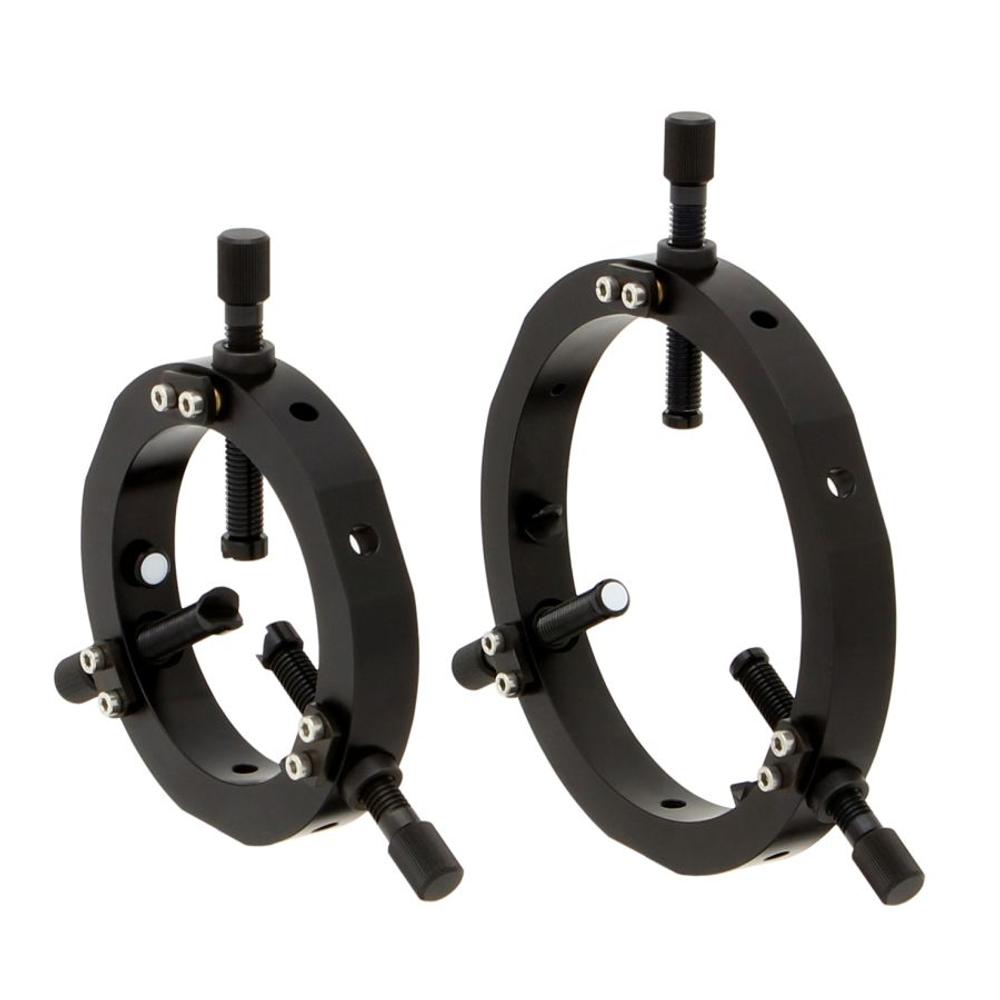

Universal Adjustable Lens/Optics Mounts 830-0035
Universal Adjustable Lens/Optics Mounts 830-0035-04 and 830-0035-02 are used to accommodate any round objects of any thickness, like lenses, mirrors or lasers. Three support shafts of holder are assembled with… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | A* · B* · C* · H* | |
|---|---|---|
| 830-0035-02 | 134-164 mm·124-141 mm·10-66 mm·49.1 mm |
1 in stock
Ships in: 2–5 calendar days
$138
|
| 830-0035-04 | 164-210 mm·158-185 mm·38-103 mm·65.7 mm |
Out of stock
$201
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| Universal Adjustable Lens / Optics Mount - Solidworks file | |
| Universal Adjustable Lens / Optics Mount - DWG file | |
| Universal Adjustable Lens / Optics Mount - STEP file |
Classification
| Type | optical-mount |
Description
Universal Adjustable Lens/Optics Mounts 830-0035-04 and 830-0035-02 are used to accommodate any round objects of any thickness, like lenses, mirrors or lasers. Three support shafts of holder are assembled with non-rotating V-groove aluminium universal interchangeable tips for lenses mirrors, etc.
- Holding of cylindrical objects of various diameters
- Three mounting options
- Convenient storage of tips which are not used at the moment
- Quick coarse positioning and diameter setting possibility
- Made of black anodized aluminium
Each individual adjustable shaft of holder incorporates threaded thumbscrew, sliding sleeve and fixation tool for rough positioning and diameter setting. It is enough to give only a twist thumbscrew of the shaft to provide a fine adjustment travel.
Three different mounting holes: M4, M6, and Ø6.4 provide various and easy attachment possibilities to Tables, Breadboards and Rod Holder systems.
