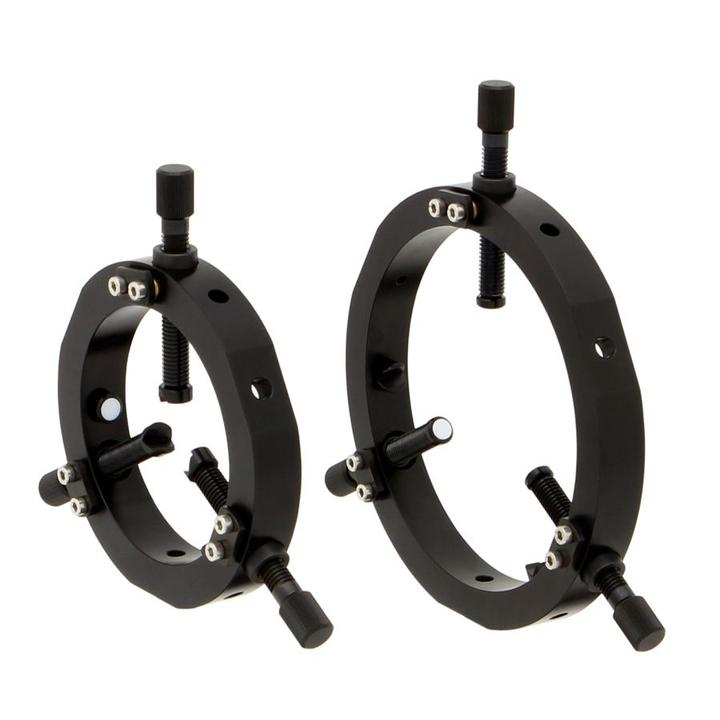

Universal Adjustable Lens/Optics Mounts 830-0035 SKU: 830-0035-02
Universal Adjustable Lens/Optics Mounts 830-0035-04 and 830-0035-02 are used to accommodate any round objects of any thickness, like lenses, mirrors or lasers. Three support shafts of holder are assembled with non-rotating V-groove aluminium universal interchangeable tips for…
Variant specifications
| Specification | Value |
|---|---|
| A* | 134-164 mm |
| B* | 124-141 mm |
| C* | 10-66 mm |
| H* | 49.1 mm |
Shared product specifications
These specifications apply across the Universal Adjustable Lens/Optics Mounts 830-0035 product family.
| Universal Adjustable Lens / Optics Mount - Solidworks file | |
| Universal Adjustable Lens / Optics Mount - DWG file | |
| Universal Adjustable Lens / Optics Mount - STEP file |
Classification
| Type | optical-mount |
Product brochures
Shared documentation for the complete product family.
