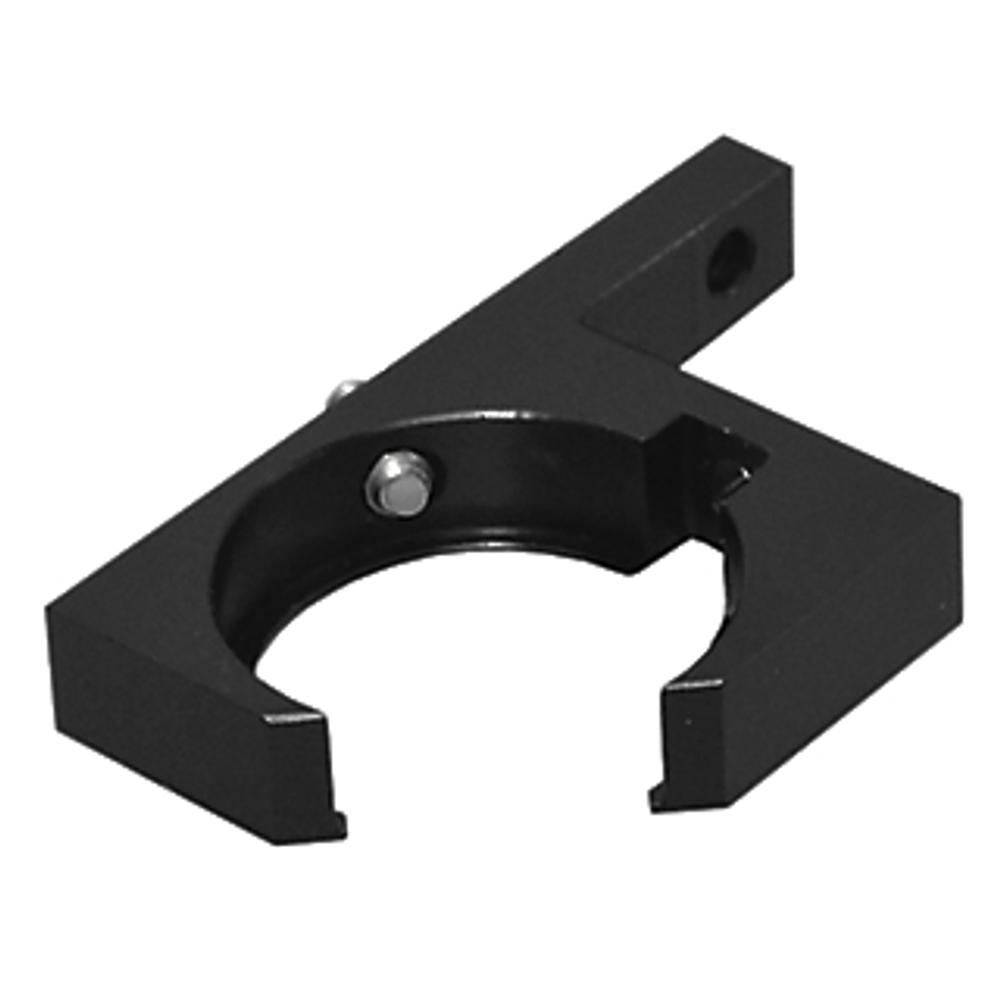

Round Optics Adapter 840-0100-A1
The Round Optics Adapter 840-0100-A1 may be attached to the platform of 840-0102-T mount on any side. Optics rests on the two contact lines – the edges of the cut-off corner – and is firmly held in place by a stainless… Read more →
Order
| SKU | Product Type | Mounted Optics Diameter | |
|---|---|---|---|
| 840-0100-A1 | Optics Adapter | 23.2 mm - 25.4 mm |
Out of stock
$29
|
Specifications
| Product Type | Optics Adapter |
| Mounted Optics Diameter | 23.2 mm - 25.4 mm |
| Mount Clear Aperture | 23 mm |
| Width | 52 mm |
| Length | 8 mm |
| Height | 25 mm |
Description
The Round Optics Adapter 840-0100-A1 may be attached to the platform of 840-0102-T mount on any side.
Optics rests on the two contact lines – the edges of the cut-off corner – and is firmly held in place by a stainless steel fixing screw. Frame doesn't obstruct the view. It allows to work with two beams situated very closely.
Suitable for optics Ø 23. 2÷25. 4 mm.
