Precision & High Stability Mirror/Beamsplitter Mounts 840-0036
Highly Stable Precision L-shaped Optical Mounts are designed on the basis of two angular adjustment mounts, and are made of steel with black chemical finishing. Flat spring of a special form is used in these mounts,… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Optics Ø, mm (inches) | |
|---|---|---|
| 840-0036-01 | 25.4 (1'') |
Out of stock
$118
|
| 840-0036-02 | 50.8 (2'') |
Out of stock
$152
|
| 840-0036-03 | 76.2 (3'') |
Out of stock
$195
|
| 840-0036-04 | 101.6 (4'') |
Out of stock
$275
|
| 840-0036-06 | 152.4 (6'') |
Out of stock
$358
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Model | 840-0036-01 | 840-0036-02 | 840-0036-03 | 840-0036-04 | 840-0036-06 |
|---|---|---|---|---|---|
| Optics diameter | 1" (25.4 mm) | 2" (50.8 mm) | 3" (76.2 MM) | 4" (101.6 mm) | 6" (152.4 mm) |
| Mechanism | kinematic | kinematic | kinematic | kinematic | kinematic |
| Drive type | knob | knob | knob | knob | knob |
| Adjustments | Θx, Θy | Θx, Θy | Θx, Θy | Θx, Θy | Θx, Θy |
| Special features | center mount | center mount | center mount | center mount | center mount |
| Angular range | 8° | 8° | 6° | 5° | 4° |
| Sensitivity 0.5 mm fine thread | 6 arcsec | 6 arcsec | 5 arcsec | 4 arcsec | 3 arcsec |
| Sensitivity 0.25 mm fine thread | 3.4 arcsec | 3.4 arcsec | 2.3 arcsec | 1.8 arcsec | 1.5 arcsec |
| Material | Steel | Steel | Steel | Steel | Base - steel / Front - aluminium |
| Mounting thread | M6 (3 holes) | M6 (3 holes) | M6 (5 holes) | M6 (4 holes) | M6 (6 holes) |
| Mounting | post, baseplate | post, baseplate | post, baseplate | post, baseplate | post, baseplate |
| Optics Thickness | universal | universal | universal | universal | universal |
| Optical axis height | 27.5 mm | 40 mm | 53 mm | 65 mm | 96 mm |
| Adjustment screw | 870-0030 (0.5 mm fine thread) | 870-0030 (0.5 mm fine thread) | 870-0030 (0.5 mm fine thread) | 870-0030 (0.5 mm fine thread) | 870-0030 (0.5 mm fine thread) |
| Mounting thread for fine screw¹ | M10x1 | M10x1 | M10x1 | M10x1 | M10x1 |
| Weight, kg | 0.07 | 0.18 | 0.44 | 1.04 | 1.4 |
| Precision & High Stability Mirror / Beamsplitter Mounts - STEP file |
Description

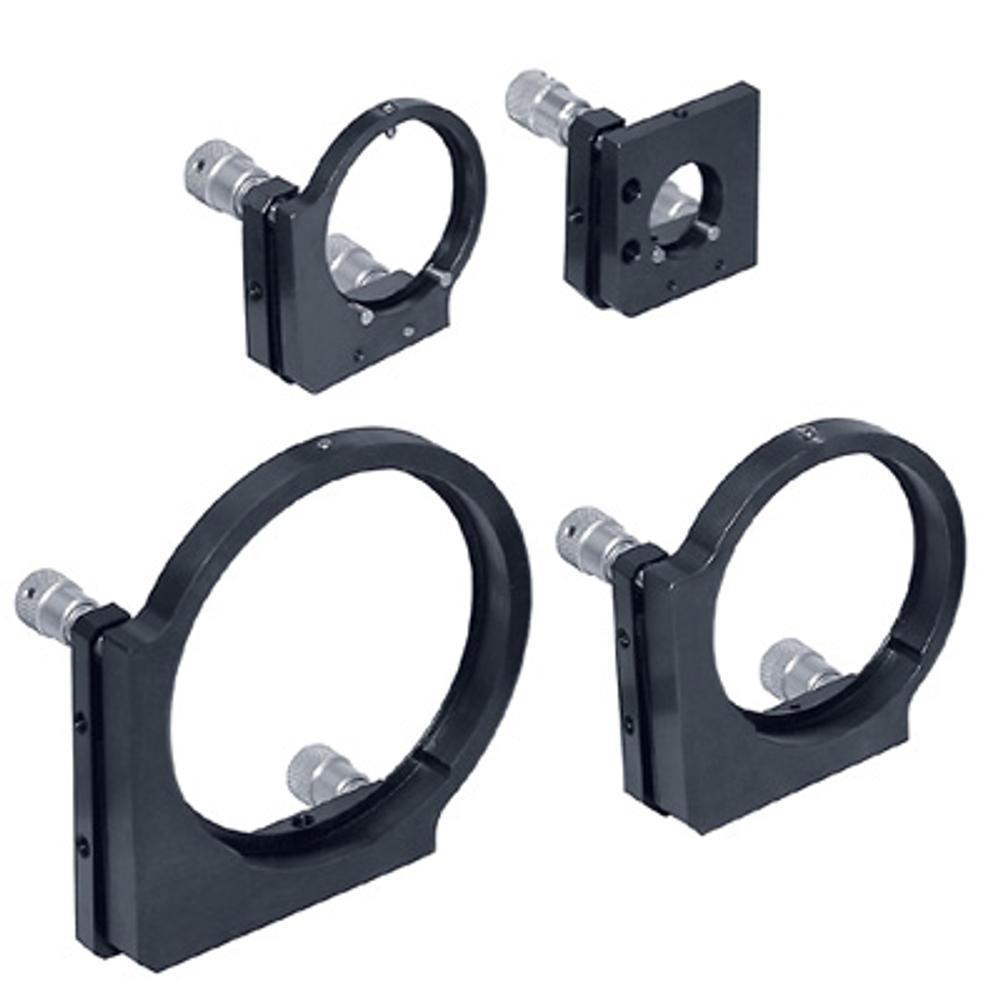

Highly Stable Precision L-shaped Optical Mounts are designed on the basis of two angular adjustment mounts, and are made of steel with black chemical finishing. Flat spring of a special form is used in these mounts, which provides pre-loading against the tips of two precise driving screws for elimination of backlash and ensures the absence of the roll coordinate.
The mounts have two M10x1 threaded mounting holes for mounting of the actuators. This allows to use different driving screws in combination with these mounts. As a standard, mounts come with 870-0030 screws. If you want to order the mount with alternative screws, please specify it in your order.
M6 tapped holes on the sides provide a wide variety of mounting configurations, either horizontal or vertical. A special L-shaped design allows to achieve maximum clear aperture.
Models for 1”,2” and 3” optics made entirely of black anodized steel (back and front plates). Models for 4” and 6” optics use front plate made of black anodized aluminium.
Vacuum versions of 840-0036-03, 840-0036-04 and 840-0036-06 are available on request.
