Sapphire (Al2O3) Windows
• The hardest of the oxide crystals • Excellent transparency and thermal properties • Chemically inert and insoluble • Can be safely made much thinner than windows from glass or other crystals Single crystal sapphire… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Diameter | Thickness | Material Type | Material | Coating S1W1 | Coating S2W1 | |
|---|---|---|---|---|---|---|---|
| 550-7382 | 38.1 mm | 2 mm | Crystalline Material | SAPPHIRE | Uncoated | Uncoated |
3 in stock
Ships in: 2–5 calendar days
$144
|
| 550-7502 | 50 mm | 2 mm | Crystalline Material | SAPPHIRE | Uncoated | Uncoated |
7 in stock
Ships in: 2–5 calendar days
$208
|
| 550-7503 | 50 mm | 3 mm | Crystalline Material | SAPPHIRE | Uncoated | Uncoated |
5 in stock
Ships in: 2–5 calendar days
$219
|
| 550-7505 | 50 mm | 5 mm | Crystalline Material | SAPPHIRE | Uncoated | Uncoated |
3 in stock
Ships in: 2–5 calendar days
$234
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Round |
| Diameter Upper Tolerance | 0 mm |
| Thickness Tolerance Upper Limit | -0.2 mm |
| Thickness Tolerance Lower Limit | 0.2 mm |
| Material Type | Crystalline Material |
| Material | SAPPHIRE |
Surface 1
| Surface quality, ISO | 60-40 |
| Power and Irregularity, fringes @633 nm | -(2) |
| Clear Aperture, % | 80 % - 100 % |
| Irregularity, fringes @633 nm | 2 fr |
Surface 1, Wavelength 1
| Coating | Uncoated |
Surface 2
| Surface quality, ISO | 60-40 |
| Power and Irregularity, fringes @633 nm | -(2) |
| Clear Aperture, % | 80 % - 100 % |
| Irregularity, fringes @633 nm | 2 fr |
Surface 2, Wavelength 1
| Coating | Uncoated |
Description
- The hardest of the oxide crystals
- Excellent transparency and thermal properties
- Chemically inert and insoluble
- Can be safely made much thinner than windows from glass or other crystals

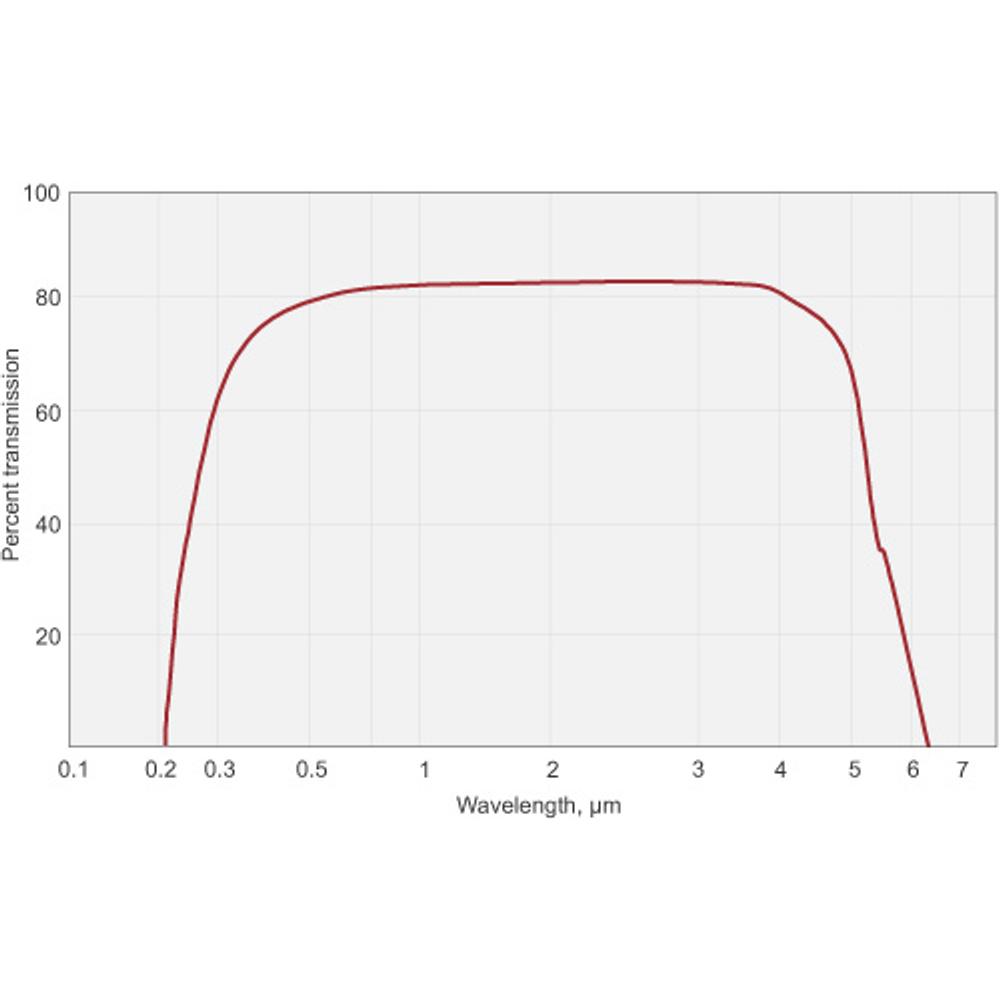

Single crystal sapphire combines excellent optical, physical and chemical properties. Chemically inert and almost insoluble, sapphire in many ways is superior material for windows. It is transparent from 150 nm up to 6 mm in the middle infrared. Sapphire exhibits anisotropy in many optical and physical properties. Difference in index of refraction in orthogonal directions is 0.008.
