Standard Wedge Prisms
• Steer beam in optical systems • Can be used in pairs for continuous angular adjustment By selecting the appropriate wedge it is simple to create a precise beam deviation without affecting other beam parameters.… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Diameter | Thin Edge thickness | Material Type | Material | Wedge, angle | Coating | |
|---|---|---|---|---|---|---|---|
| 310-0100E | 12.7 mm | 3 mm | BK7 | BK7 | 0 deg 30 min 0 sec | Uncoated |
10 in stock
Ships in: 2–5 calendar days
$30
|
| 310-0101E | 12.7 mm | 3 mm | BK7 | BK7 | 1 deg 0 min 0 sec | Uncoated |
6 in stock
Ships in: 2–5 calendar days
$30
|
| 310-0102E | 12.7 mm | 3 mm | BK7 | BK7 | 2 deg 0 min 0 sec | Uncoated |
5 in stock
Ships in: 2–5 calendar days
$30
|
| 310-0103E | 12.7 mm | 3 mm | BK7 | BK7 | 3 deg 0 min 0 sec | Uncoated |
5 in stock
Ships in: 2–5 calendar days
$30
|
| 310-0105E | 12.7 mm | 3 mm | BK7 | BK7 | 5 deg 0 min 0 sec | Uncoated |
5 in stock
Ships in: 2–5 calendar days
$30
|
| 310-0200E | 25.4 mm | 3 mm | BK7 | BK7 | 0 deg 30 min 0 sec | Uncoated |
18 in stock
Ships in: 2–5 calendar days
$36
|
| 310-0201E | 25.4 mm | 3 mm | BK7 | BK7 | 1 deg 0 min 0 sec | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$36
|
| 310-0202E | 25.4 mm | 3 mm | BK7 | BK7 | 2 deg 0 min 0 sec | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$36
|
| 310-0203E | 25.4 mm | 3 mm | BK7 | BK7 | 3 deg 0 min 0 sec | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$36
|
| 310-0205E | 25.4 mm | 3 mm | BK7 | BK7 | 5 deg 0 min 0 sec | Uncoated |
14 in stock
Ships in: 2–5 calendar days
$36
|
| 310-1100E | 12.7 mm | 3 mm | FS | UVFS | 0 deg 30 min 0 sec | Uncoated |
4 in stock
Ships in: 2–5 calendar days
$48
|
| 310-1101E | 12.7 mm | 3 mm | FS | UVFS | 1 deg 0 min 0 sec | Uncoated |
11 in stock
Ships in: 2–5 calendar days
$48
|
| 310-1102E | 12.7 mm | 3 mm | FS | UVFS | 2 deg 0 min 0 sec | Uncoated |
1 in stock
Ships in: 2–5 calendar days
$48
|
| 310-1103E | 12.7 mm | 3 mm | FS | UVFS | 3 deg 0 min 0 sec | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$48
|
| 310-1105E | 12.7 mm | 3 mm | FS | UVFS | 5 deg 0 min 0 sec | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$48
|
| 310-1200E | 25.4 mm | 3 mm | FS | UVFS | 0 deg 30 min 0 sec | Uncoated |
17 in stock
Ships in: 2–5 calendar days
$60
|
| 310-1201E | 25.4 mm | 3 mm | FS | UVFS | 1 deg 0 min 0 sec | Uncoated |
20 in stock
Ships in: 2–5 calendar days
$60
|
| 310-1202E | 25.4 mm | 3 mm | FS | UVFS | 2 deg 0 min 0 sec | Uncoated |
50 in stock
Ships in: 2–5 calendar days
$60
|
| 310-1203E | 25.4 mm | 3 mm | FS | UVFS | 3 deg 0 min 0 sec | Uncoated |
24 in stock
Ships in: 2–5 calendar days
$60
|
| 310-1205E | 25.4 mm | 3 mm | FS | UVFS | 5 deg 0 min 0 sec | Uncoated |
27 in stock
Ships in: 2–5 calendar days
$60
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Round |
| Diameter Upper Tolerance | 0 mm |
| Thin Edge thickness | 3 mm |
| Thin Edge thickness lower tolerance | -0.2 mm |
| Thin Edge thickness upper tolerance | 0.2 mm |
| Wedge tolerance +/-, angle | 0 deg 3 min 0 sec |
Surface 1
| Surface quality, grind or polish | Polished |
| Clear Aperture, % | 90 % - 100 % |
Surface 1, Wavelength 1
| Coating | Uncoated |
Surface 2
| Surface quality, grind or polish | Polished |
| Clear Aperture, % | 90 % - 100 % |
Surface 2, Wavelength 1
| Coating | Uncoated |
Description
- Steer beam in optical systems
- Can be used in pairs for continuous angular adjustment

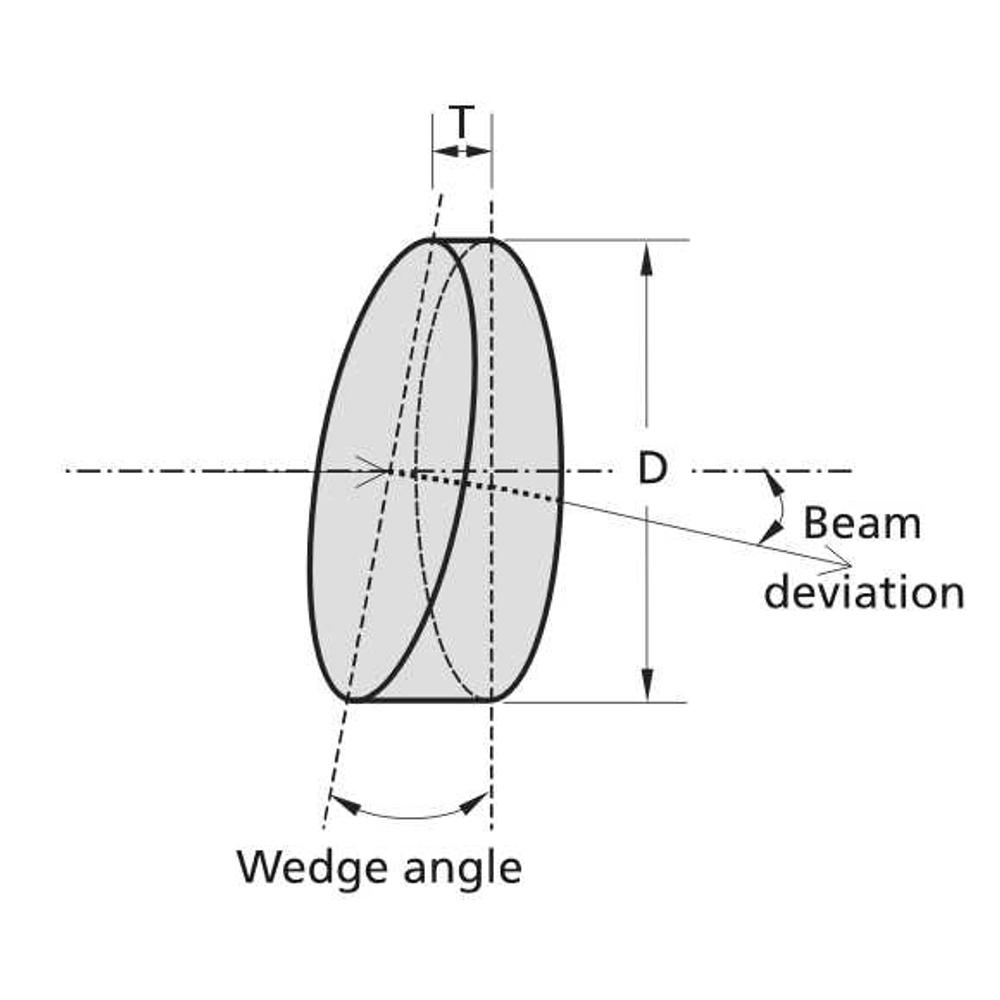

By selecting the appropriate wedge it is simple to create a precise beam deviation without affecting other beam parameters. If two wedges are used together with the sloping surfaces in close proximity it is possible to produce a continuous variation of beam deviation by counter - rotating the wedges.
Wedge prisms are available in different shapes and sizes or with various anti-reflection coatings (see the Coatings section of the Optical Components catalog).
