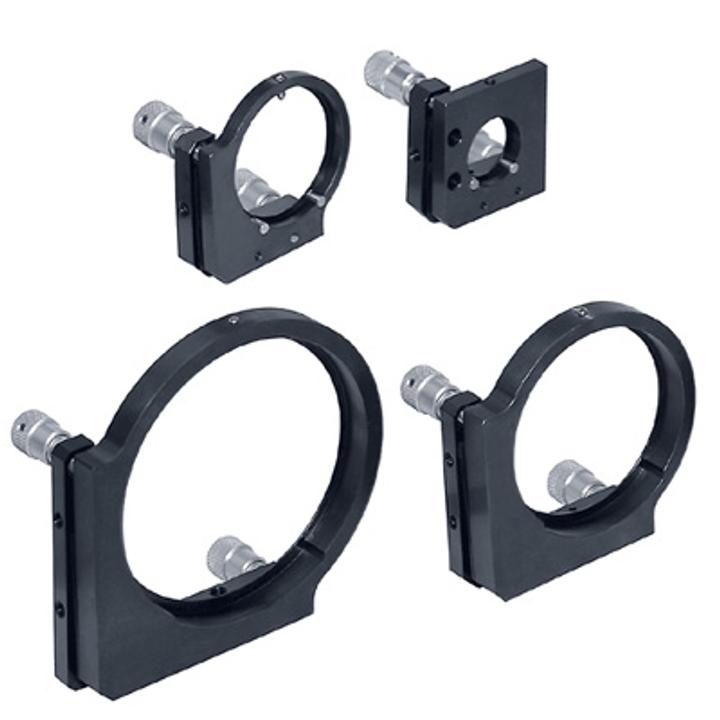

Precision & High Stability Mirror/Beamsplitter Mounts 840-0036 SKU: 840-0036-02
Highly Stable Precision L-shaped Optical Mounts are designed on the basis of two angular adjustment mounts, and are made of steel with black chemical finishing. Flat spring of a special form is used in these mounts, which provides pre-loading against the tips of two precise…
Variant specifications
| Specification | Value |
|---|---|
| Optics Ø, mm (inches) | 50.8 (2'') |
Shared product specifications
These specifications apply across the Precision & High Stability Mirror/Beamsplitter Mounts 840-0036 product family.
| Model | 840-0036-01 | 840-0036-02 | 840-0036-03 | 840-0036-04 | 840-0036-06 |
|---|---|---|---|---|---|
| Optics diameter | 1" (25.4 mm) | 2" (50.8 mm) | 3" (76.2 MM) | 4" (101.6 mm) | 6" (152.4 mm) |
| Mechanism | kinematic | kinematic | kinematic | kinematic | kinematic |
| Drive type | knob | knob | knob | knob | knob |
| Adjustments | Θx, Θy | Θx, Θy | Θx, Θy | Θx, Θy | Θx, Θy |
| Special features | center mount | center mount | center mount | center mount | center mount |
| Angular range | 8° | 8° | 6° | 5° | 4° |
| Sensitivity 0.5 mm fine thread | 6 arcsec | 6 arcsec | 5 arcsec | 4 arcsec | 3 arcsec |
| Sensitivity 0.25 mm fine thread | 3.4 arcsec | 3.4 arcsec | 2.3 arcsec | 1.8 arcsec | 1.5 arcsec |
| Material | Steel | Steel | Steel | Steel | Base - steel / Front - aluminium |
| Mounting thread | M6 (3 holes) | M6 (3 holes) | M6 (5 holes) | M6 (4 holes) | M6 (6 holes) |
| Mounting | post, baseplate | post, baseplate | post, baseplate | post, baseplate | post, baseplate |
| Optics Thickness | universal | universal | universal | universal | universal |
| Optical axis height | 27.5 mm | 40 mm | 53 mm | 65 mm | 96 mm |
| Adjustment screw | 870-0030 (0.5 mm fine thread) | 870-0030 (0.5 mm fine thread) | 870-0030 (0.5 mm fine thread) | 870-0030 (0.5 mm fine thread) | 870-0030 (0.5 mm fine thread) |
| Mounting thread for fine screw¹ | M10x1 | M10x1 | M10x1 | M10x1 | M10x1 |
| Weight, kg | 0.07 | 0.18 | 0.44 | 1.04 | 1.4 |
| Precision & High Stability Mirror / Beamsplitter Mounts - STEP file |
