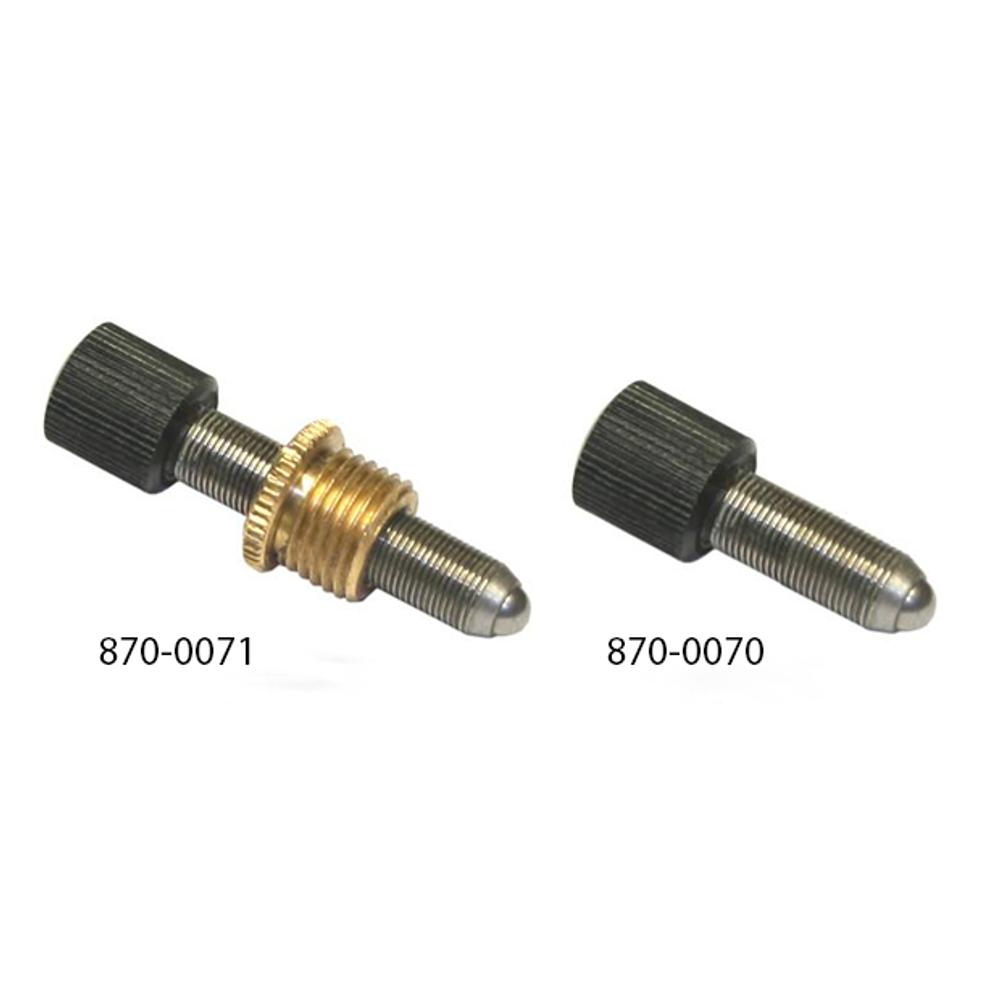

Adjustment Screws 870-0070, 870-0071
Adjustment Screws 870-0070 and 870-0071 are popular for their low cost and miniature size in applications where rough resolution of about 5 μm is enough. 870-0071 consists of M6x0.5 screw and nut with M10x1 mounting… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Travel Range | Travel Sensitivity | Length | Screw Pitch | Mounting method | |
|---|---|---|---|---|---|---|---|
| 870-0070-08 | Adjustment Screws | 8 mm | 1.5 µm | 29 mm | M6×0.5 | Mounting Thread |
Out of stock
$9
|
| 870-0070-18 | Adjustment Screws | 18 mm | 1.5 µm | 39 mm | M6×0.5 | Mounting Thread |
Out of stock
$11
|
| 870-0071-08 | Adjustment Screws | 8 mm | 1.5 µm | 29 mm | M6×0.5 | Mounting Thread |
Out of stock
$14
|
| 870-0071-18 | Adjustment Screws | 18 mm | 1.5 µm | 39 mm | M6×0.5 | Mounting Thread |
50 in stock
Ships in: 2–5 calendar days
$17
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Adjustment Screws |
| Travel Sensitivity | 1.5 µm |
| Screw Pitch | M6×0.5 |
| Axial Load Capacity | 80 N |
| Mounting method | Mounting Thread |
Description
Adjustment Screws 870-0070 and 870-0071 are popular for their low cost and miniature size in applications where rough resolution of about 5 μm is enough.
870-0071 consists of M6x0.5 screw and nut with M10x1 mounting thread (M10x0.5 as option).
870-0070 and 870-0071 series screws are suitable for various optical mounts and can be chosen as an option in mounts 840-0040, 850-0095 and others.
