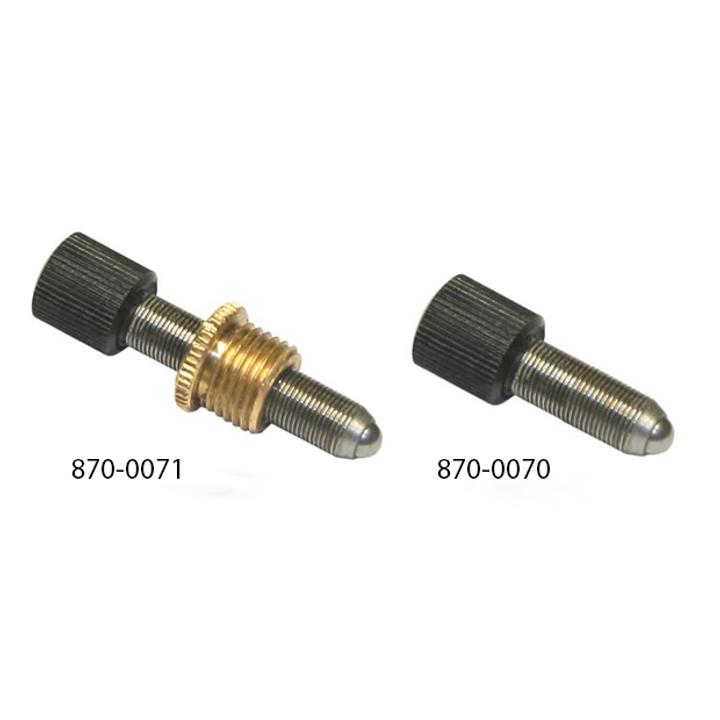

Adjustment Screws 870-0070, 870-0071 SKU: 870-0070-08
Adjustment Screws 870-0070 and 870-0071 are popular for their low cost and miniature size in applications where rough resolution of about 5 μm is enough. 870-0071 consists of M6x0.5 screw and nut with M10x1 mounting thread (M10x0.5 as option). 870-0070 and 870-0071 series…
Variant specifications
| Specification | Value |
|---|---|
| Travel | 8 mm |
| Length | 29 mm |
Shared product specifications
These specifications apply across the Adjustment Screws 870-0070, 870-0071 product family.
| Adjustment screw thread | M6x0.5 |
| Sensitivity | 1.5 μm |
| Axial load capacity | 80 N |
| 870-0071 Adjustment Screws - Solidworks file | |
| 870-0071 Adjustment Screws - DWG file | |
| 870-0071 Adjustment Screws - STEP file |
Product brochures
Shared documentation for the complete product family.
