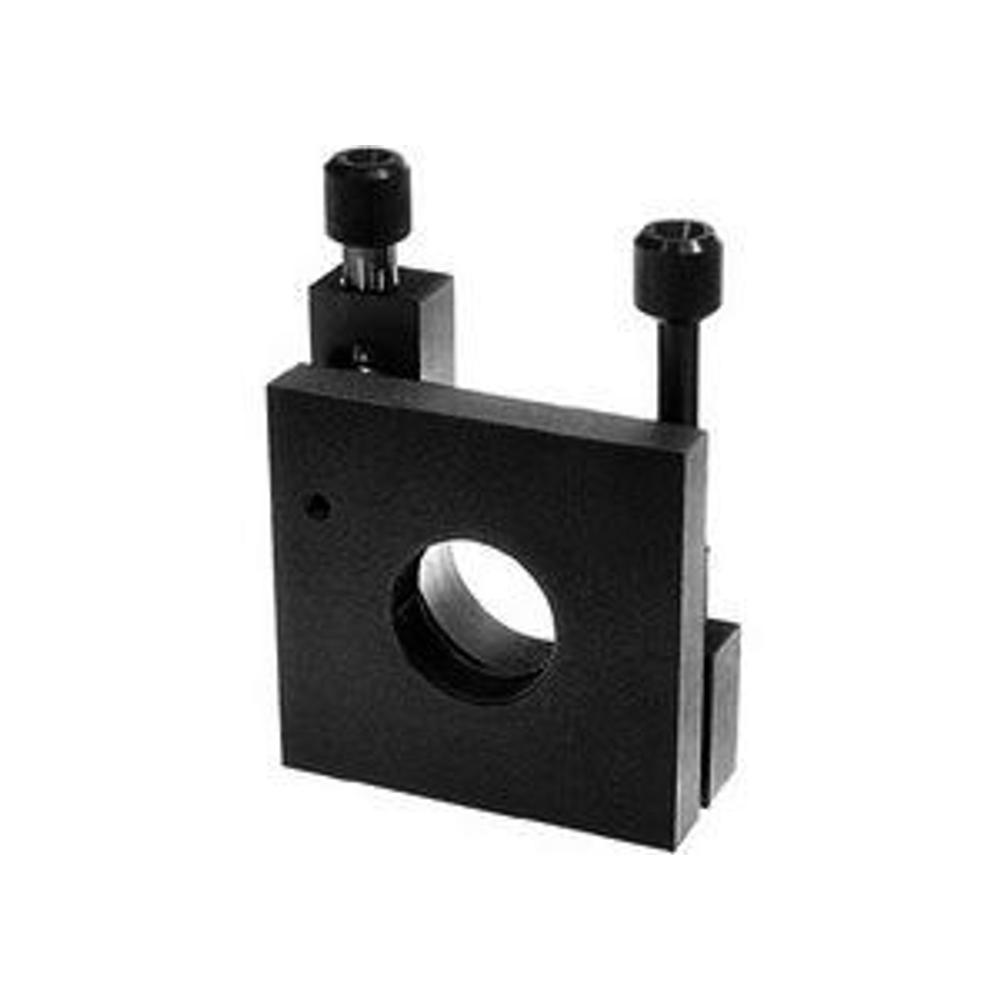

Objective Mount 840-0120-T

• Adjustment of both angles is controlled from one side
• Ideal for high density optical schemes
• Fine adjustment screws with 0.25 mm pitch
• Travel range ±2°
• Hardened inserts under adjusters
• Original L-shaped flat spring

Precision Optical Mounts of Side Control enable to greatly increase the thickness of optical elements as it has a convenient access to the adjustment handles.

L-shaped flat spring of original design renders the great stability of a mount's platform. The spring performs two functions: work as a usual spring, and eliminate polarizing rotation of the platform.

Angular range is ±2° about each of two orthogonal axes. Precision screws with pitch of 0.25 mm render sensitivity of 10 arcsec.

Three M4 tapped holes on the sides of the base allow a variety of mounting configurations, e.g. horizontal and vertical.

The mount is produced from black anodized aluminium. L-shaped spring is produced from high quality stainless spring steel.

Objective Mount of Side Control 840-0120-T has W 0.8‑36 mm aperture and is used for precise adjustment of standard microscope objective lenses and ensures low-cost positioning of a focus point. Also it can be used in the fiber optics.

Objective Mount 840-0120 is also available. Various modifications with sensitivity from 10 arcsec to 3 arcsec can be done. Travel range is 9°. It is made of black anodized aluminium. It has the same W 0.8‑36 mm aperture as 840-0120-T.
