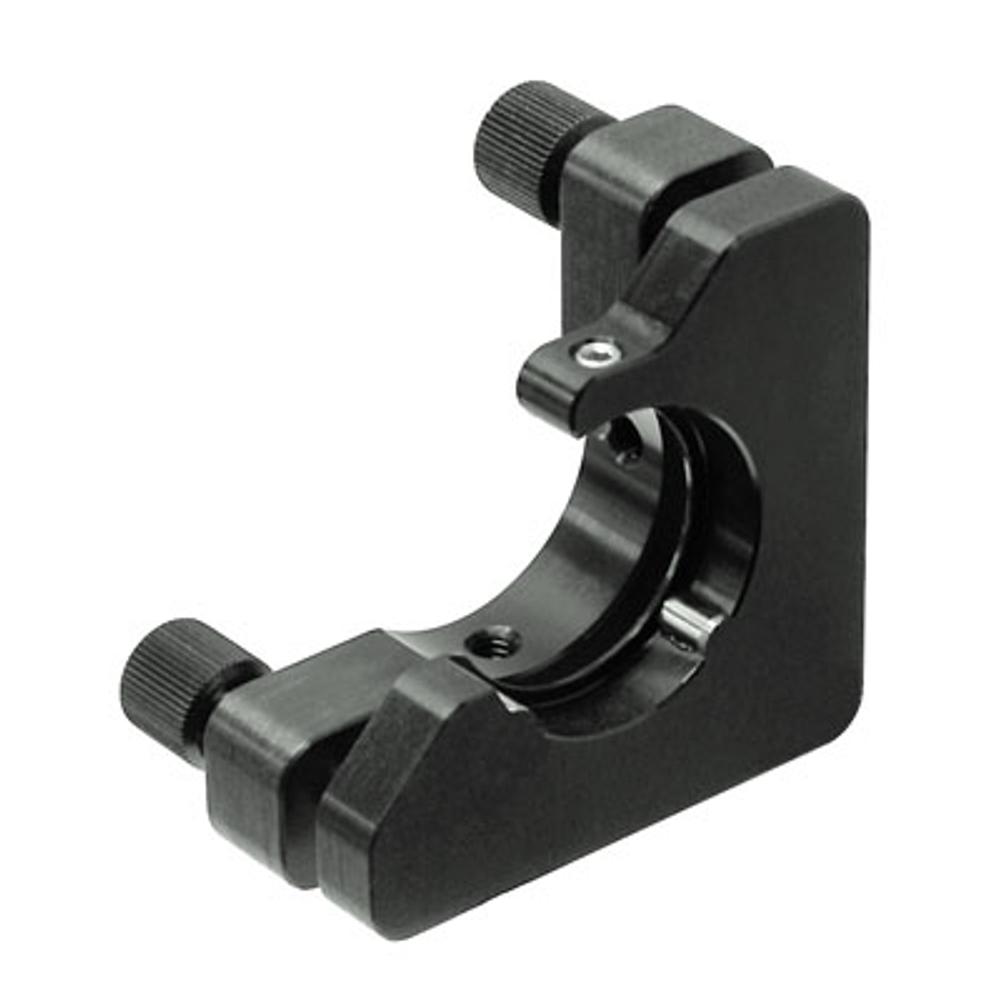

Mirror Optical Mount 840-4120-B
• For Ø25.4 mm (1 inch) optics • 2 contact points for optimum stability • One edge of the optics stays clear, helpful in schemes where beams are very closely situated to each other • M6x0.25 adjustment screws provide… Read more →
Configure & order — pick a catalog variant or configure your own
Product
Product Type
Any
2
catalog variants — refine the spec to narrow it down.
| SKU | Product Type | Mounted Optics Diameter | Mount Material and Coating | |
|---|---|---|---|---|
| 840-4120E-B2 | Manual Optical Positioner, 2-screws | 25.4 mm | Black Anodised Aluminum |
Out of stock
$66
|
| 840-4120E-B3 | Manual Optical Positioner, 3-screws | 25.4 mm | Black Anodised Aluminum |
Out of stock
$78
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Mounted Optics Diameter | 25.4 mm |
| Mount Material and Coating | Black Anodised Aluminum |
| Angular Tilt Range | 9 Deg |
| Tilt Sensitivity | 3 sec |
| Number of Axes | 2 |
| Mount Clear Aperture | 24 mm |
| Width | 50 mm |
| Length | 35 mm |
| Height | 50 mm |
| Screw Pitch | M6×0.25 |
Description
- For Ø25.4 mm (1 inch) optics
- 2 contact points for optimum stability
- One edge of the optics stays clear, helpful in schemes where beams are very closely situated to each other
- M6x0.25 adjustment screws provide precise kinematic control
- “Right-hand” version available
