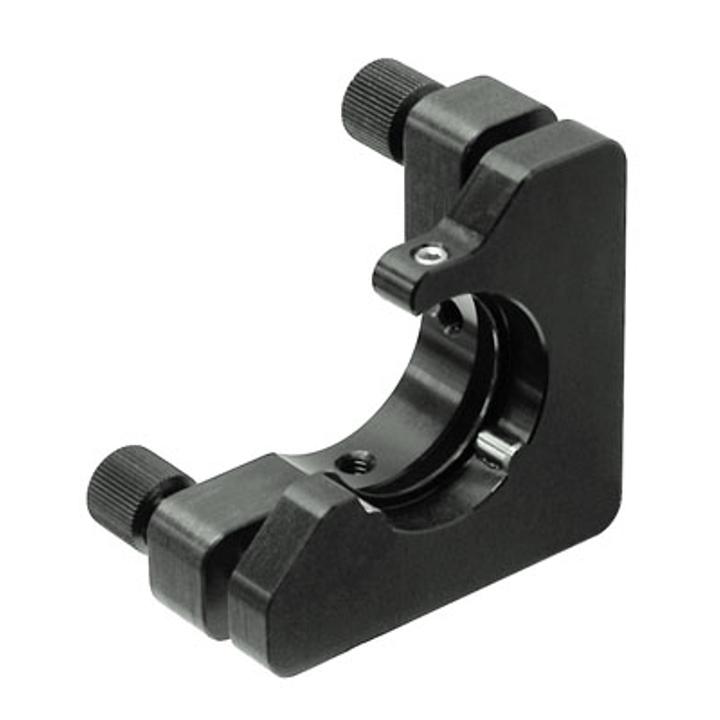

Mirror Optical Mount 840-4120-B SKU: 840-4120E-B2
• For Ø25.4 mm (1 inch) optics • 2 contact points for optimum stability • One edge of the optics stays clear, helpful in schemes where beams are very closely situated to each other • M6x0.25 adjustment screws provide precise kinematic control • “Right-hand” version available
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Optical Positioner, 2-screws |
| Mounted Optics Diameter | 25.4 mm |
| Mount Material and Coating | Black Anodised Aluminum |
| Angular Tilt Range | 9 Deg |
| Tilt Sensitivity | 3 sec |
| Number of Axes | 2 |
| Mount Clear Aperture | 24 mm |
| Width | 50 mm |
| Length | 35 mm |
| Height | 50 mm |
| Screw Pitch | M6×0.25 |
