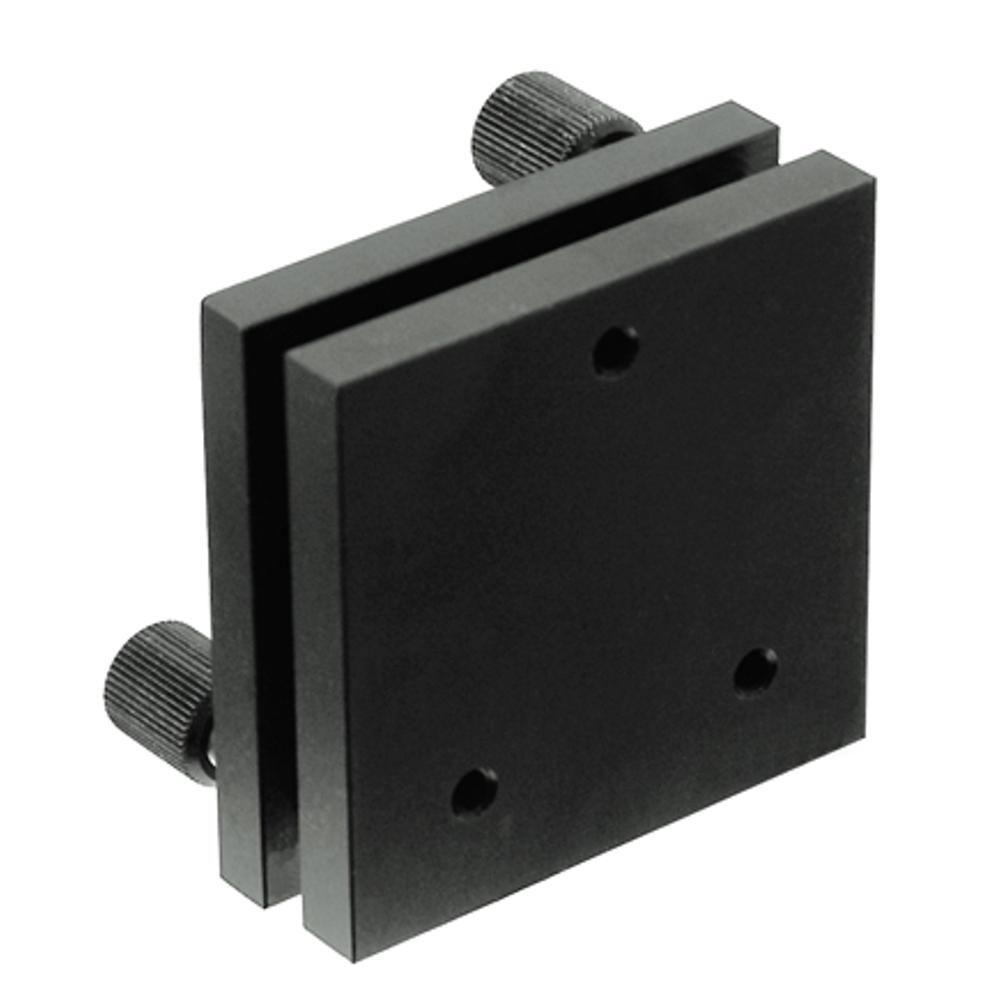

Universal Mirror Mount/Platform 840-0052

Universal Mirror Mount/Platform 840-0052

Universal Mirror Mount/Platform 840-0052 is suited for precise adjustments of standard mirrors, which can be directly bound to it. M4 hole on the back of the Mount allows it to be mounted in a horizontal position and be… Read more →

From $80 Configure & order →

Order

SKU Product Type Mount Material and Coat
840-0052 Manual Optical Positioner, 2-screws Black Anodised Aluminum
Out of stock
$80

Specifications

Product Type Manual Optical Positioner, 2-screws
Mount Material and Coat Black Anodised Aluminum
Angular Tilt Range 9 Deg
Number of Axes 2
Width 50 mm
Length 35 mm
Height 50 mm

Description

Universal Mirror Mount/Platform 840-0052 is suited for precise adjustments of standard mirrors, which can be directly bound to it. M4 hole on the back of the Mount allows it to be mounted in a horizontal position and be used as a tilt table. Therefore, bound opto-mechanical elements can be aligned around two axes.

  • Precise angular adjustments around two orthogonal axes
  • Stable vertical mounting
  • Tilt/tip range - 9°
  • Made of black anodized aluminium
