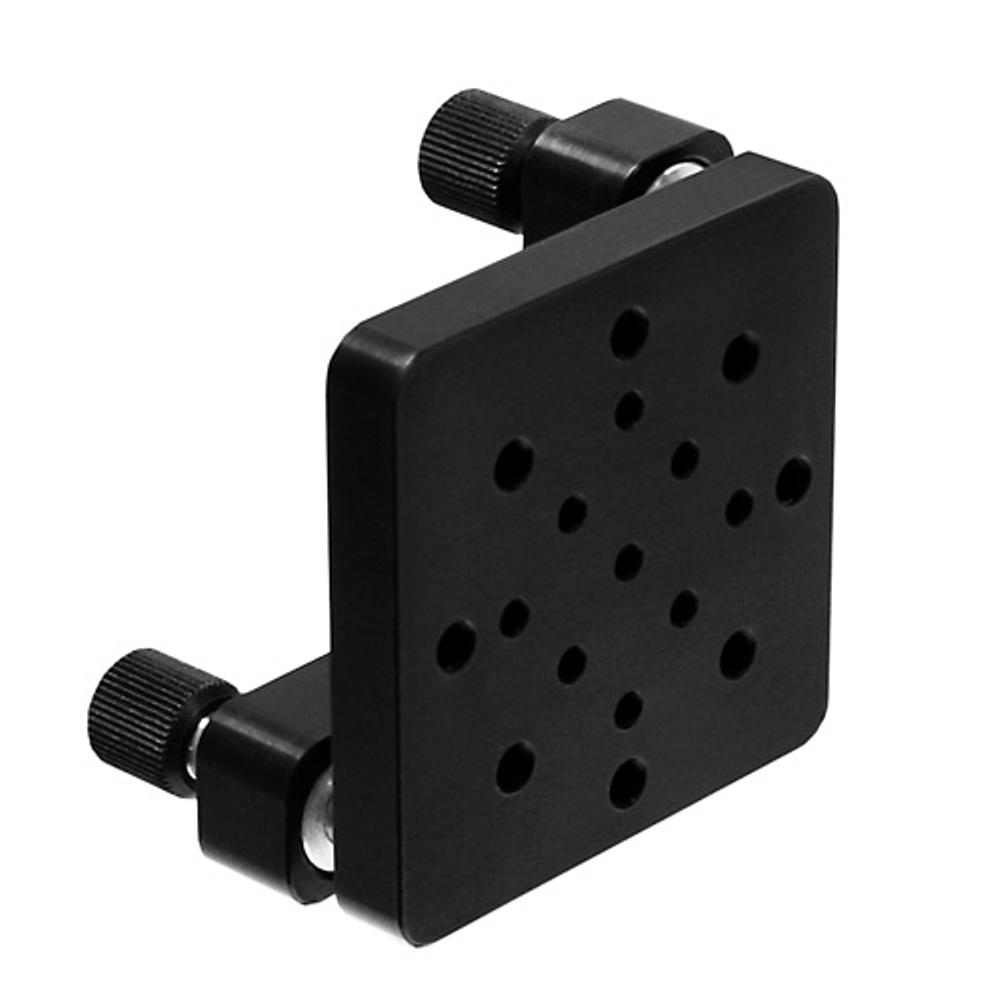

Universal Platform Mount 840-2120-B

Universal Platform Mount 840-2120-B

• Handy two orthogonal angular adjustments • 9° range • Sensitivity 3 arcsec • M6×0.25 adjustment screws provide precise kinematic control • Made of black anodized aluminium Universal Platform Mount 840-2120-B is… Read more →

From $62 Configure & order →

Configure & order — pick a catalog variant or configure your own

Product

Product Type Any
2 catalog variants — refine the spec to narrow it down.
SKU Product Type Mount Material and Coat
840-2120-B2 Manual Optical Positioner, 2-screws Black Anodised Aluminum
Out of stock
$62
840-2120-B3 Manual Optical Positioner, 3-screws Black Anodised Aluminum
Out of stock
$77

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Mount Material and Coat Black Anodised Aluminum
Angular Tilt Range 9 Deg
Tilt Sensitivity 3 sec
Number of Axes 2
Width 50 mm
Length 21.5 mm
Height 50 mm

Description

  • Handy two orthogonal angular adjustments
  • 9° range
  • Sensitivity 3 arcsec
  • M6×0.25 adjustment screws provide precise kinematic control
  • Made of black anodized aluminium

Universal Platform Mount 840-2120-B is designed for precise adjustments of various optical components which can be directly bound to it. The mount can be also used horizontally for tip/tilt adjustment.

Mounting through holes for M4 (8-32) screws.
