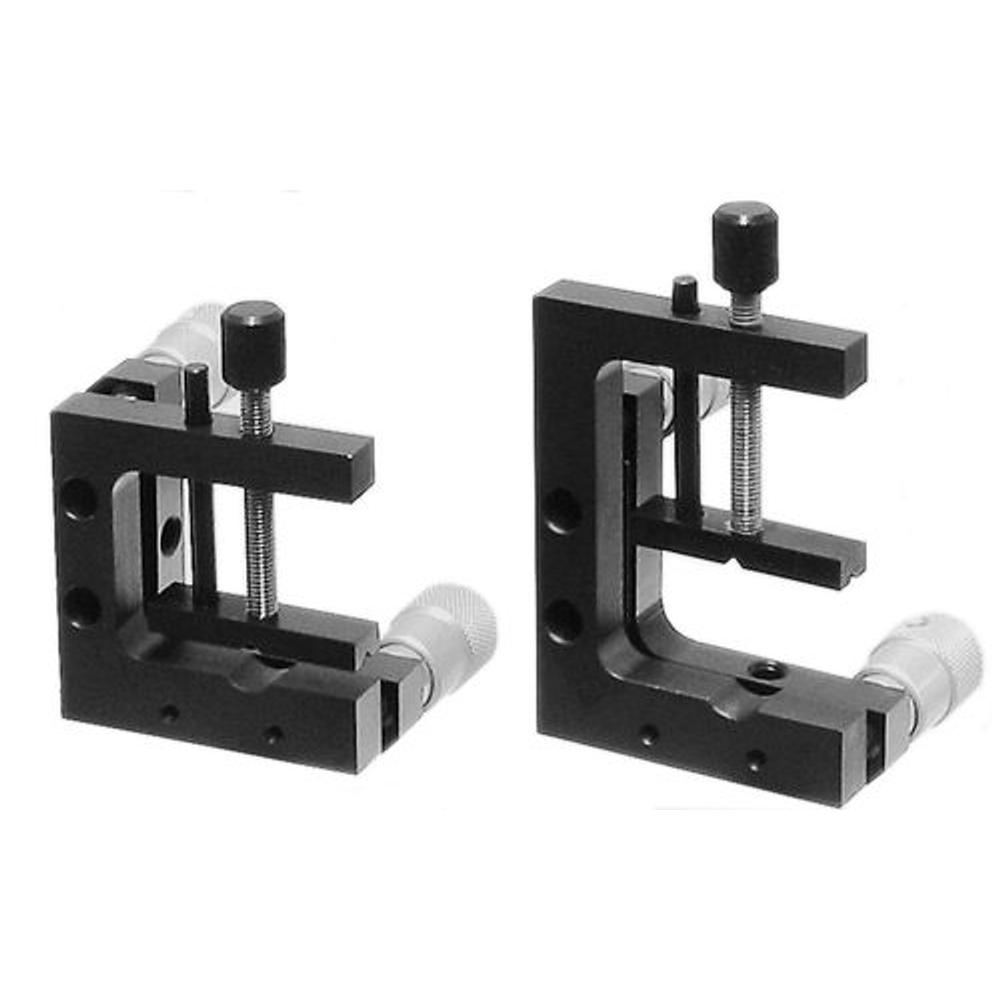

Rectangular Optic Mounts 840-0161
• Two models: • 840-0161-20 - for optics 0-28 mm tall • 840-0161-50 - for optics 22-52 mm tall • 8° adjustment range, 6 arcsec sensitivity • Right- and Left-Hand versions available • Vertical and horizontal… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Mounted Optics Diameter | Mount Material and Coating | Mounting Thread | |
|---|---|---|---|---|---|
| 840-0161-20 | Manual Optical Positioner, 2-screws | 0 mm - 28 mm | Steel | M6 |
3 in stock
Ships in: 2–5 calendar days
$106
|
| 840-0161-50 | Manual Optical Positioner, 2-screws | 22 mm - 52 mm | Steel | M6 |
Out of stock
$114
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Manual Optical Positioner, 2-screws |
| Mount Material and Coating | Steel |
| Mounting Thread | M6 |
| Angular Tilt Range | 8 Deg |
| Tilt Sensitivity | 0 deg 0 min 6 sec |
| Number of Axes | 2 |
| Screw Pitch | M6×0.5 |
Description
- Two models:
- 840-0161-20 - for optics 0-28 mm tall
- 840-0161-50 - for optics 22-52 mm tall
- 8° adjustment range, 6 arcsec sensitivity
- Right- and Left-Hand versions available
- Vertical and horizontal mounting
- Made of steel
840-0161 series fine adjustment mounts are designed to mount rectangular optics. Mounts come in two sizes: 840-0161-20 model for optics up to 28 mm (1.1") tall and 840-0161-50 for optics up to 52 mm (2.05") tall. These highly stable precision L-shaped optical mounts have M6 tapped holes on both sides that allow both horizontal and vertical mounting.
