Plano-Concave Cylindrical Lenses
• Expand light in one dimension only • Ideal for scanning and projection These lenses are used in laser scanners, spectroscopy, dye lasers, acousto-optics, optical processors and other similar applications. They… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Configure & order — pick a catalog variant or configure your own
Material
Any
or
Dimension A
Any
Dimension B
Any
Focal Length
Any
CT
Any
ET
Any
ROC
Any
35
catalog variants — refine the spec to narrow it down.

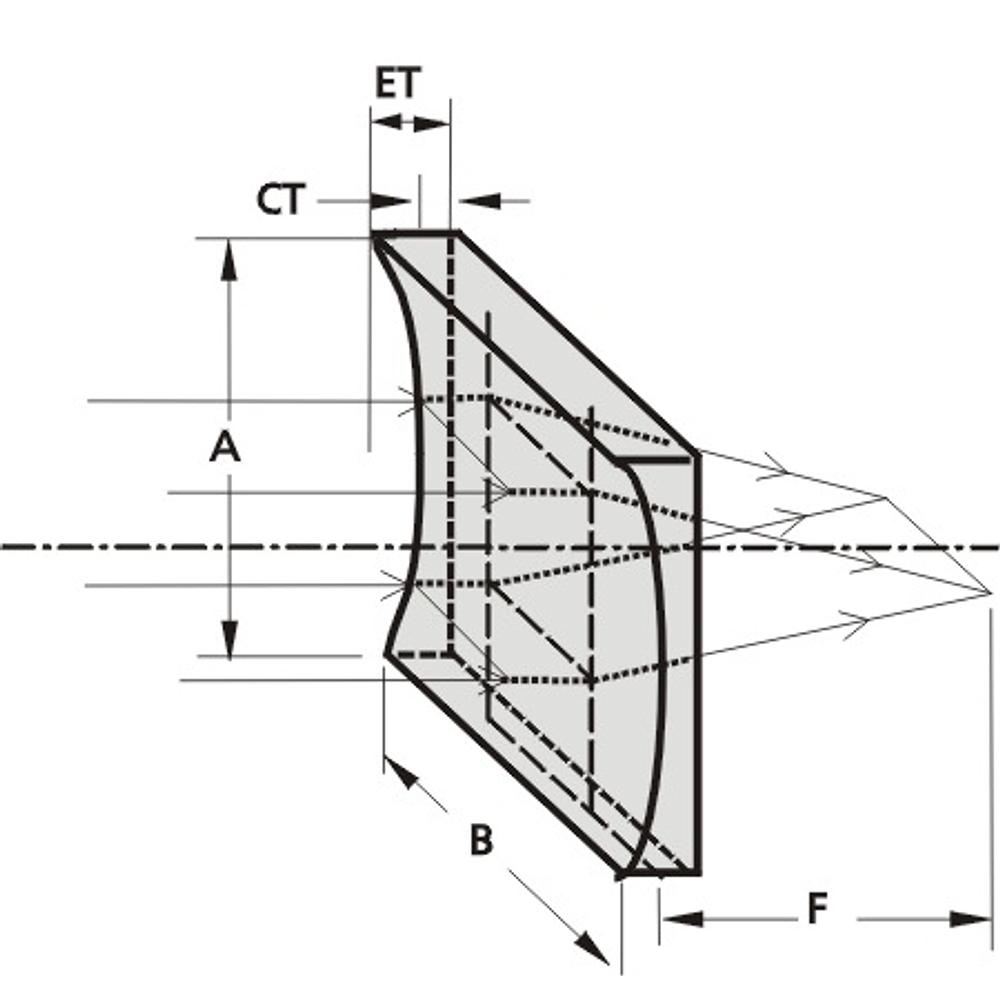

| SKU | ROC · ET · Focal Length · CT · Dimension A · Dimension B · Material · Group | |
|---|---|---|
| 122-0105E | -7.8 mm·3.7 mm·-15 mm·1.4 mm·12.7 mm·12.7 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
Out of stock
Ships in: 62–65 calendar days
$47
|
| 122-0110E | -13.0 mm·6 mm·-25 mm·2 mm·19.1 mm·25.4 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
Out of stock
Ships in: 62–65 calendar days
$70
|
| 122-0204E | -25.9 mm·5.2 mm·-50 mm·2 mm·25.4 mm·25.4 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
Out of stock
Ships in: 62–65 calendar days
$64
|
| 122-0205E | -25.9 mm·5.2 mm·-50 mm·2 mm·25.4 mm·50.8 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
14 in stock
Ships in: 2–5 calendar days
$99
|
| 122-0209E | -38.9 mm·4.1 mm·-75 mm·2 mm·25.4 mm·25.4 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
12 in stock
Ships in: 2–5 calendar days
$64
|
| 122-0210E | -38.9 mm·4.1 mm·-75 mm·2 mm·25.4 mm·50.8 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
1 in stock
Ships in: 2–5 calendar days
$99
|
| 122-0214E | -51.9 mm·3.5 mm·-100 mm·2 mm·25.4 mm·25.4 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
7 in stock
Ships in: 2–5 calendar days
$64
|
| 122-0215E | -51.9 mm·3.5 mm·-100 mm·2 mm·25.4 mm·50.8 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
Out of stock
Ships in: 62–65 calendar days
$99
|
| 122-0219E | -77.8 mm·3 mm·-150 mm·2 mm·25.4 mm·25.4 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
14 in stock
Ships in: 2–5 calendar days
$64
|
| 122-0220E | -77.8 mm·3 mm·-150 mm·2 mm·25.4 mm·50.8 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
1 in stock
Ships in: 2–5 calendar days
$99
|
| 122-0224E | -103.7 mm·2.8 mm·-200 mm·2 mm·25.4 mm·25.4 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
Out of stock
Ships in: 62–65 calendar days
$64
|
| 122-0225E | -103.7 mm·2.8 mm·-200 mm·2 mm·25.4 mm·50.8 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
3 in stock
Ships in: 2–5 calendar days
$99
|
| 122-0226E | -129.7 mm·2.7 mm·-250 mm·2 mm·25.4 mm·25.4 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
5 in stock
Ships in: 2–5 calendar days
$64
|
| 122-0227E | -129.7 mm·2.7 mm·-250 mm·2 mm·25.4 mm·50.8 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
2 in stock
Ships in: 2–5 calendar days
$99
|
| 122-0229E | -155.6 mm·2.5 mm·-300 mm·2 mm·25.4 mm·25.4 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
3 in stock
Ships in: 2–5 calendar days
$64
|
| 122-0230E | -155.6 mm·2.5 mm·-300 mm·2 mm·25.4 mm·50.8 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
3 in stock
Ships in: 2–5 calendar days
$99
|
| 122-0234E | -259.4 mm·2.4 mm·-500 mm·2 mm·25.4 mm·25.4 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
Out of stock
Ships in: 62–65 calendar days
$69
|
| 122-0235E | -259.4 mm·2.4 mm·-500 mm·2 mm·25.4 mm·50.8 mm·BK7·BK7 Plano-Concave Cylindrical Lenses |
5 in stock
Ships in: 2–5 calendar days
$110
|
| 122-1104E | -7.1 mm·4.9 mm·-15 mm·2 mm·12.7 mm·12.7 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
Out of stock
Ships in: 62–65 calendar days
$80
|
| 122-1105E | -11.9 mm·8 mm·-25 mm·3 mm·19.1 mm·25.4 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
5 in stock
Ships in: 2–5 calendar days
$113
|
| 122-1201E | -14.3 mm·10 mm·-30 mm·2.5 mm·25.4 mm·25.4 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
4 in stock
Ships in: 2–5 calendar days
$113
|
| 122-1204E | -23.8 mm·7.1 mm·-50 mm·3.5 mm·25.4 mm·25.4 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
Out of stock
Ships in: 62–65 calendar days
$110
|
| 122-1205E | -23.8 mm·7.1 mm·-50 mm·3.5 mm·25.4 mm·50.8 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
5 in stock
Ships in: 2–5 calendar days
$230
|
| 122-1209E | -35.7 mm·5.6 mm·-75 mm·3.3 mm·25.4 mm·25.4 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
Out of stock
Ships in: 62–65 calendar days
$110
|
| 122-1210E | -35.7 mm·5.6 mm·-75 mm·3.3 mm·25.4 mm·50.8 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
4 in stock
Ships in: 2–5 calendar days
$230
|
| 122-1214E | -47.6 mm·4.7 mm·-100 mm·3 mm·25.4 mm·25.4 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
21 in stock
Ships in: 2–5 calendar days
$110
|
| 122-1215E | -47.6 mm·4.7 mm·-100 mm·3 mm·25.4 mm·50.8 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
3 in stock
Ships in: 2–5 calendar days
$230
|
| 122-1219E | -71.3 mm·4.1 mm·-150 mm·3 mm·25.4 mm·25.4 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
32 in stock
Ships in: 2–5 calendar days
$110
|
| 122-1220E | -71.3 mm·4.1 mm·-150 mm·3 mm·25.4 mm·50.8 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
8 in stock
Ships in: 2–5 calendar days
$230
|
| 122-1224E | -95.1 mm·4.6 mm·-200 mm·3.8 mm·25.4 mm·25.4 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
8 in stock
Ships in: 2–5 calendar days
$110
|
| 122-1225E | -95.1 mm·4.6 mm·-200 mm·3.8 mm·25.4 mm·50.8 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
13 in stock
Ships in: 2–5 calendar days
$230
|
| 122-1229E | -142.7 mm·4.1 mm·-300 mm·3.5 mm·25.4 mm·25.4 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
Out of stock
Ships in: 62–65 calendar days
$110
|
| 122-1230E | -142.7 mm·4.1 mm·-300 mm·3.5 mm·25.4 mm·50.8 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
2 in stock
Ships in: 2–5 calendar days
$230
|
| 122-1234E | -237.8 mm·3.8 mm·-500 mm·3.5 mm·25.4 mm·25.4 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
19 in stock
Ships in: 2–5 calendar days
$131
|
| 122-1235E | -237.8 mm·3.8 mm·-500 mm·3.5 mm·25.4 mm·50.8 mm·UVFS·UVFS Plano-Concave Cylindrical Lenses |
17 in stock
Ships in: 2–5 calendar days
$242
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| Material | BK7, UV FS |
| Surface quality | 40-20 scratch & dig (MIL-PRF-13830B) |
| Clear aperture | 90% of the diameter |
| Size tolerance | ±0.5 mm |
| Thickness tolerance | ±0.5 mm |
| Surface irregularity | 1 λ @ 633 nm |
| Paraxial focal length: / BK7 / UV FS | ±2% @ 546 nm / ±2% @ 355 nm |
Description
- Expand light in one dimension only
- Ideal for scanning and projection
These lenses are used in laser scanners, spectroscopy, dye lasers, acousto-optics, optical processors and other similar applications. They are the best for circularization of diode laser outputs. Earlier remarks made about plano-convex and plano-concave spherical lenses, with regard to aberrations and conjugate ratios, are also applicable to cylindrical lenses.
A variety of anti-reflection coatings is available for these lenses. For appropriate coating please refer to the COATINGS section. We can supply custom cutting, edging, coating or complete fabrication if required.
