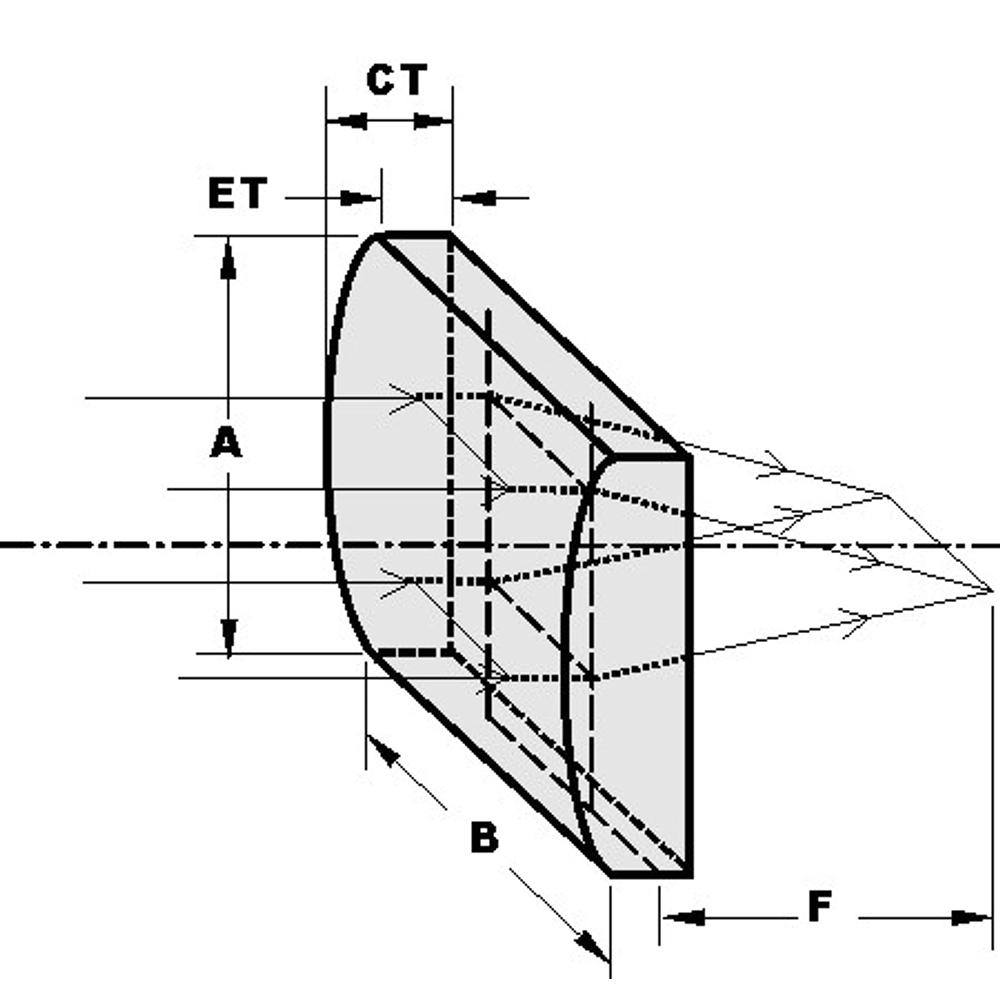

Plano-Convex Cylindrical Lenses

Plano-Convex Cylindrical Lenses

• Condense light in one dimension only • Ideal for producing line images, for scanning and projection These lenses are used to focus light to a thin line in laser scanners, spectroscopy, dye lasers,… Read more →

From $48 Configure & order →

Volume discount

  • 5–9 units −5%
  • 10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Width 12.7 mm - 25.4 mm · 3 values Any mm
mm
Height 12.7 mm - 50.8 mm · 3 values Any mm
mm
Center Thickness 2.2 mm - 14 mm · 24 values Any mm
mm
Edge Thickness 1.5 mm - 3.5 mm · 8 values Any mm
mm
Focal Length 15 mm - 1500 mm · 16 values Any mm
mm
48 catalog variants — refine the spec to narrow it down.
SKU Width Height Center Thickness Edge Thickness Focal Length Surface Shape Coating
120-0105E 12.7 mm 12.7 mm 4.8 mm 1.5 mm 15 mm Convex Uncoated
14 in stock Ships in: 2–5 calendar days
$48
120-0110E 19.1 mm 25.4 mm 6.1 mm 2 mm 25 mm Convex Uncoated
2 in stock Ships in: 2–5 calendar days
$72
120-0201E 25.4 mm 25.4 mm 8.5 mm 2 mm 30 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$72
120-0202E 25.4 mm 25.4 mm 14 mm 2.5 mm 24.5 mm Convex Uncoated
1 in stock Ships in: 2–5 calendar days
$72
120-0203E 25.4 mm 25.4 mm 6.4 mm 2 mm 40 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$72
120-0204E 25.4 mm 25.4 mm 5.2 mm 2 mm 50 mm Convex Uncoated
11 in stock Ships in: 2–5 calendar days
$66
120-0205E 25.4 mm 50.8 mm 5.2 mm 2 mm 50 mm Convex Uncoated
7 in stock Ships in: 2–5 calendar days
$102
120-0209E 25.4 mm 25.4 mm 4.1 mm 2 mm 75 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$66
120-0210E 25.4 mm 50.8 mm 4.1 mm 2 mm 75 mm Convex Uncoated
3 in stock Ships in: 2–5 calendar days
$102
120-0214E 25.4 mm 25.4 mm 3.5 mm 2 mm 100 mm Convex Uncoated
10 in stock Ships in: 2–5 calendar days
$66
120-0215E 25.4 mm 50.8 mm 3.5 mm 2 mm 100 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$102
120-0219E 25.4 mm 25.4 mm 3 mm 2 mm 150 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$66
120-0220E 25.4 mm 50.8 mm 3 mm 2 mm 150 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$102
120-0224E 25.4 mm 25.4 mm 2.8 mm 2 mm 200 mm Convex Uncoated
9 in stock Ships in: 2–5 calendar days
$66
120-0225E 25.4 mm 50.8 mm 2.8 mm 2 mm 200 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$102
120-0229E 25.4 mm 25.4 mm 2.5 mm 2 mm 300 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$66
120-0230E 25.4 mm 50.8 mm 2.5 mm 2 mm 300 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$102
120-0234E 25.4 mm 25.4 mm 2.4 mm 2 mm 500 mm Convex Uncoated
8 in stock Ships in: 2–5 calendar days
$71
120-0235E 25.4 mm 50.8 mm 2.4 mm 2 mm 500 mm Convex Uncoated
2 in stock Ships in: 2–5 calendar days
$114
120-0239E 25.4 mm 25.4 mm 2.3 mm 2 mm 1000 mm Convex Uncoated
1 in stock Ships in: 2–5 calendar days
$71
120-0240E 25.4 mm 50.8 mm 2.3 mm 2 mm 1000 mm Convex Uncoated
9 in stock Ships in: 2–5 calendar days
$114
120-0244E 25.4 mm 25.4 mm 2.2 mm 2 mm 1500 mm Convex Uncoated
7 in stock Ships in: 2–5 calendar days
$71
120-0245E 25.4 mm 50.8 mm 2.2 mm 2 mm 1500 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$114
120-1104E 12.7 mm 12.7 mm 4.9 mm 2 mm 15 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$83
120-1105E 19.1 mm 25.4 mm 8 mm 3 mm 25 mm Convex Uncoated
2 in stock Ships in: 2–5 calendar days
$117
120-1201E 25.4 mm 25.4 mm 10 mm 2.5 mm 30 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$117
120-1203E 25.4 mm 25.4 mm 8 mm 3.1 mm 40 mm Convex Uncoated
18 in stock Ships in: 2–5 calendar days
$117
120-1204E 25.4 mm 25.4 mm 7.1 mm 3.5 mm 50 mm Convex Uncoated
14 in stock Ships in: 2–5 calendar days
$114
120-1205E 25.4 mm 50.8 mm 7.1 mm 3.5 mm 50 mm Convex Uncoated
13 in stock Ships in: 2–5 calendar days
$204
120-1209E 25.4 mm 25.4 mm 5.6 mm 3.3 mm 75 mm Convex Uncoated
7 in stock Ships in: 2–5 calendar days
$110
120-1210E 25.4 mm 50.8 mm 5.6 mm 3.3 mm 75 mm Convex Uncoated
1 in stock Ships in: 2–5 calendar days
$204
120-1214E 25.4 mm 25.4 mm 4.7 mm 3 mm 100 mm Convex Uncoated
9 in stock Ships in: 2–5 calendar days
$105
120-1215E 25.4 mm 50.8 mm 4.7 mm 3 mm 100 mm Convex Uncoated
13 in stock Ships in: 2–5 calendar days
$194
120-1217E 25.4 mm 25.4 mm 4.4 mm 3 mm 125 mm Convex Uncoated
5 in stock Ships in: 2–5 calendar days
$105
120-1219E 25.4 mm 25.4 mm 4.1 mm 3 mm 150 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$105
120-1220E 25.4 mm 50.8 mm 4.1 mm 3 mm 150 mm Convex Uncoated
12 in stock Ships in: 2–5 calendar days
$194
120-1224E 25.4 mm 25.4 mm 4.3 mm 3.5 mm 200 mm Convex Uncoated
Out of stock Ships in: 62–65 calendar days
$105
120-1225E 25.4 mm 50.8 mm 4.3 mm 3.5 mm 200 mm Convex Uncoated
3 in stock Ships in: 2–5 calendar days
$194
120-1226E 25.4 mm 25.4 mm 4.2 mm 3.5 mm 250 mm Convex Uncoated
5 in stock Ships in: 2–5 calendar days
$105
120-1227E 25.4 mm 50.8 mm 4.2 mm 3.5 mm 250 mm Convex Uncoated
5 in stock Ships in: 2–5 calendar days
$194
120-1229E 25.4 mm 25.4 mm 4.1 mm 3.5 mm 300 mm Convex Uncoated
10 in stock Ships in: 2–5 calendar days
$105
120-1230E 25.4 mm 50.8 mm 4.1 mm 3.5 mm 300 mm Convex Uncoated
2 in stock Ships in: 2–5 calendar days
$194
120-1234E 25.4 mm 25.4 mm 3.8 mm 3.5 mm 500 mm Convex Uncoated
4 in stock Ships in: 2–5 calendar days
$114
120-1235E 25.4 mm 50.8 mm 3.8 mm 3 mm 500 mm Convex Uncoated
6 in stock Ships in: 2–5 calendar days
$213
120-1239E 25.4 mm 25.4 mm 2.5 mm 2.3 mm 1000 mm Convex Uncoated
1 in stock Ships in: 2–5 calendar days
$114
120-1240E 25.4 mm 50.8 mm 2.5 mm 2.3 mm 1000 mm Convex Uncoated
9 in stock Ships in: 2–5 calendar days
$213
120-1244E 25.4 mm 25.4 mm 2.2 mm 2 mm 1500 mm Convex Uncoated
1 in stock Ships in: 2–5 calendar days
$114
120-1245E 25.4 mm 50.8 mm 2.2 mm 2 mm 1500 mm Convex Uncoated
1 in stock Ships in: 2–5 calendar days
$213

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Centration, angle 0 deg 0 min 0 sec - 0 deg 3 min 0 sec

Surface 1

Surface Shape Convex
Surface quality, grind or polish Polished
Clear Aperture, % 90 % - 100 %

Surface 1, Wavelength 1

Coating Uncoated

Surface 2

Surface Shape Plano
Surface quality, grind or polish Polished
Clear Aperture, % 90 % - 100 %

Surface 2, Wavelength 1

Coating Uncoated

Description

  • Condense light in one dimension only
  • Ideal for producing line images, for scanning and projection

These lenses are used to focus light to a thin line in laser scanners, spectroscopy, dye lasers, acousto-optics, optical processors and other similar applications. They are the best for circularization of diode laser outputs, energy collection for linear detectors or for coupling to a slit input. Earlier remarks made about plano-convex and plano-concave spherical lenses, with regard to aberrations and conjugate ratios, are also applicable to cylindrical lenses. A variety of anti-reflection coatings is available for these lenses.

For appropriate coating please refer to the Coatings section of the Optical Components catalog. We can supply custom cutting, edging, coating or complete fabrication if required.

Downloads

PDF
EKSMA_Optics_Plano-Cylindrical_Lenses.pdf PDF · 142 KB
