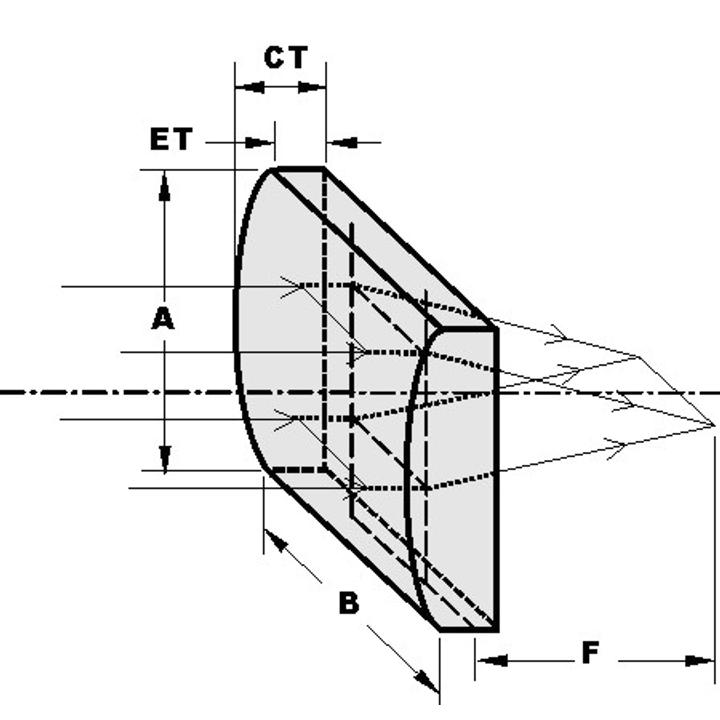

Plano-Convex Cylindrical Lenses SKU: 120-0210E
• Condense light in one dimension only • Ideal for producing line images, for scanning and projection These lenses are used to focus light to a thin line in laser scanners, spectroscopy, dye lasers, acousto-optics, optical processors and other similar applications. They…
Variant specifications
| Specification | Value |
|---|---|
| Material | BK7 |
| Dimension A | 25.4 mm |
| Dimension B | 50.8 mm |
| CT | 4.1 mm |
| ET | 2 mm |
| ROC | 38.9 mm |
| Focal Length | 75 mm |
| Group | BK7 Plano-Convex Cylindrical Lenses |
Shared product specifications
These specifications apply across the Plano-Convex Cylindrical Lenses product family.
| Material | BK7, UV FS |
| Surface quality | 40-20 scratch & dig (MIL-PRF-13830B) |
| Clear aperture | >90% of the diameter |
| Size tolerance | ±0.5 mm |
| Thickness tolerance | ±0.5 mm |
| Surface irregularity | 1 λ @ 633 nm |
| Paraxial focal length: / BK7 / UV FS | ±2% @ 546 nm / ±2% @ 355 nm |
