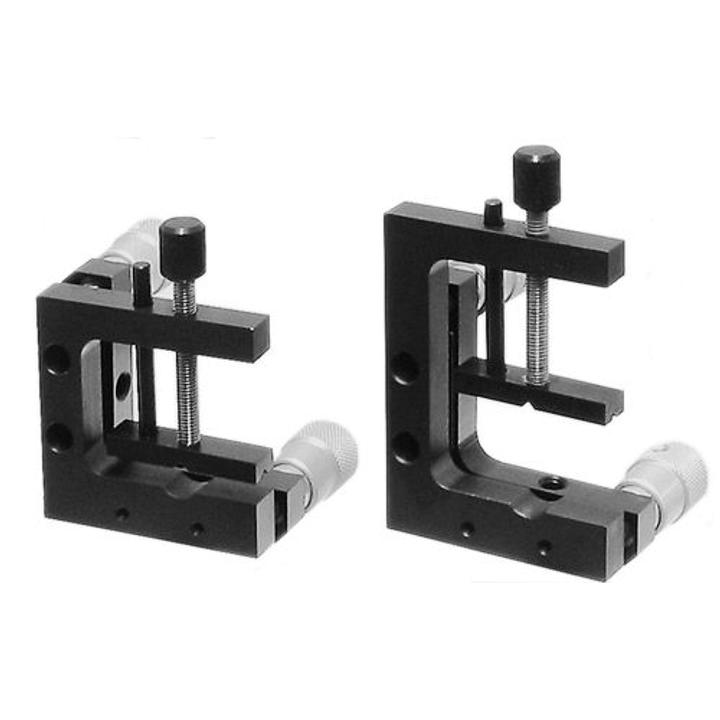

Rectangular Optic Mounts 840-0161 SKU: 840-0161-20
• Two models: • 840-0161-20 - for optics 0-28 mm tall • 840-0161-50 - for optics 22-52 mm tall • 8° adjustment range, 6 arcsec sensitivity • Right- and Left-Hand versions available • Vertical and horizontal mounting • Made of steel 840-0161 series fine adjustment mounts are…
Variant specifications
| Specification | Value |
|---|---|
| Description | For optics 0-28 mm tall |
Shared product specifications
These specifications apply across the Rectangular Optic Mounts 840-0161 product family.
| Accepted optic height: / 840-0161-20 / 840-0161-50 | 0-28 mm / 22-52 mm |
| Fine screw mounting thread | M10x1 |
| Standard adjustment screws (included) | 870-0030 |
| Angular range | 8° |
| Sensitivity 0.5 mm fine thread | 6 arcsec |
| Material | Steel |
| Mounting thread | M6 (3 holes) |
