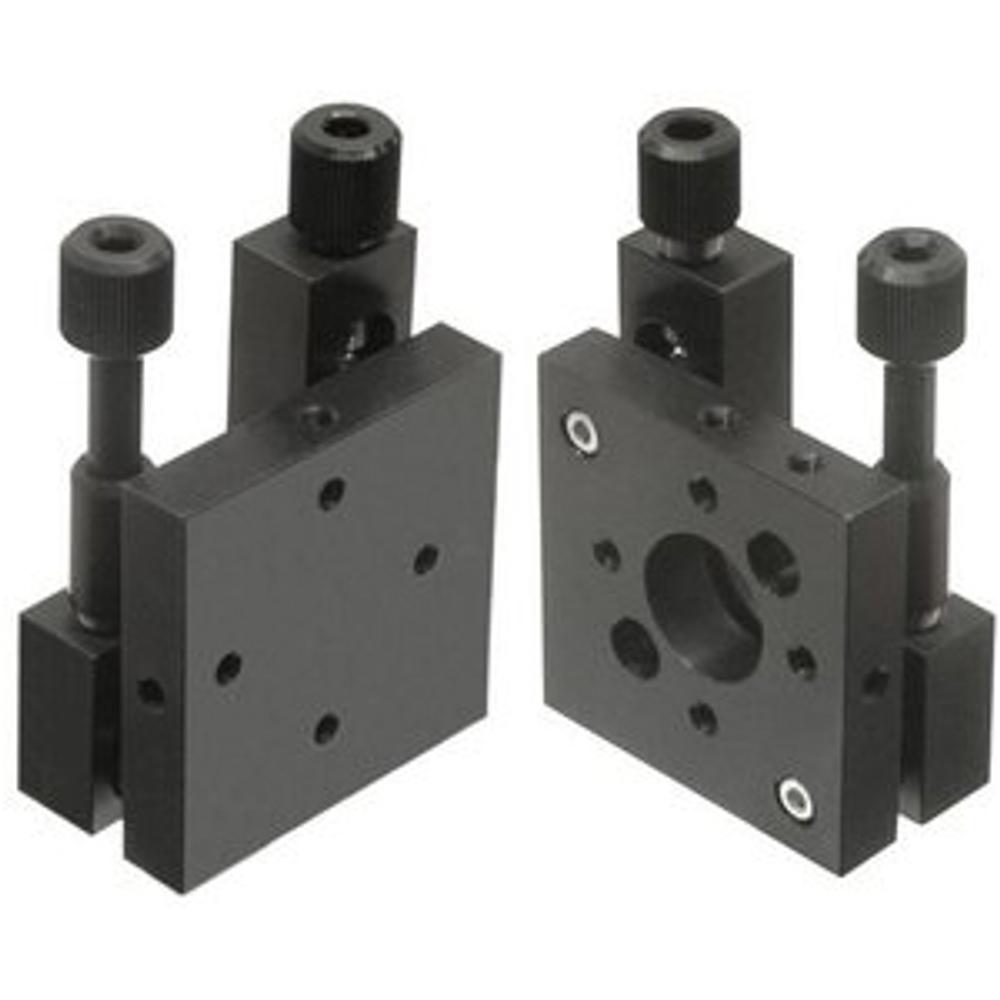

Mirror Mounts of Side Regulation 840-0110-T, 840-0110-TE
The Mirror Mount of Side Regulation 840-0110-T enables to increase greatly the thickness of optical elements as it has a convenient access to the regulation handles. L-shaped flat spring of original design ensures… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Mount Material and Coating | Mounting Thread | |
|---|---|---|---|---|
| 840-0110-B1 | Base Mount | — | — |
Out of stock
$35
|
| 840-0110-B2 | Base Mount | — | — |
Out of stock
$12
|
| 840-0110-T | Manual Optical Positioner, 2-screws | Black Anodised Aluminum | M4, M3 |
Out of stock
$118
|
| 840-0110-TE | Manual Optical Positioner, 2-screws | Black Anodised Aluminum | M4, M3 |
Out of stock
$114
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Description
The Mirror Mount of Side Regulation 840-0110-T enables to increase greatly the thickness of optical elements as it has a convenient access to the regulation handles.
L-shaped flat spring of original design ensures great stability of the mount's platform. Angular range is ±2.5° about each of two orthogonal axes. Precision screws with pitch of 0.25 mm render sensitivity of 3 arcsec.
M4 tapped holes on the sides of the base allow a variety of mounting configurations, e.g. horizontal and vertical.
The mount is produced from black anodized aluminium. L-shaped spring is produced from high quality stainless spring steel.
Mirror Mount of Side Regulation 840-0110-T:
Eccentric mounting holes Ø6.2 mm for connecting cone allow handy replacement and adjustment of Adapters to required place.
Mirror Mount of Side Regulation 840-0110-TE:
This option has no clear aperture. This makes it an ideal tilt platform. The flat surface clear of holes allows to mount or paste mirrors.

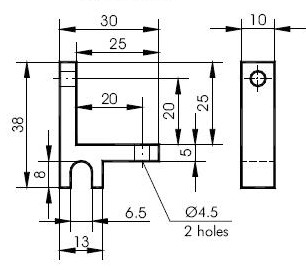

Special Base Mounts 840-0110-B2 allow to mount 840-0110-T in different positions. 840-0110-T may be mounted as a tilt platform using 840-0110-B1.
840-0110-B1 allows mounting with extremely low-profile.
840-0110-B2 attaches to 840-0110-T both immediately and through the intermediate accessories.
