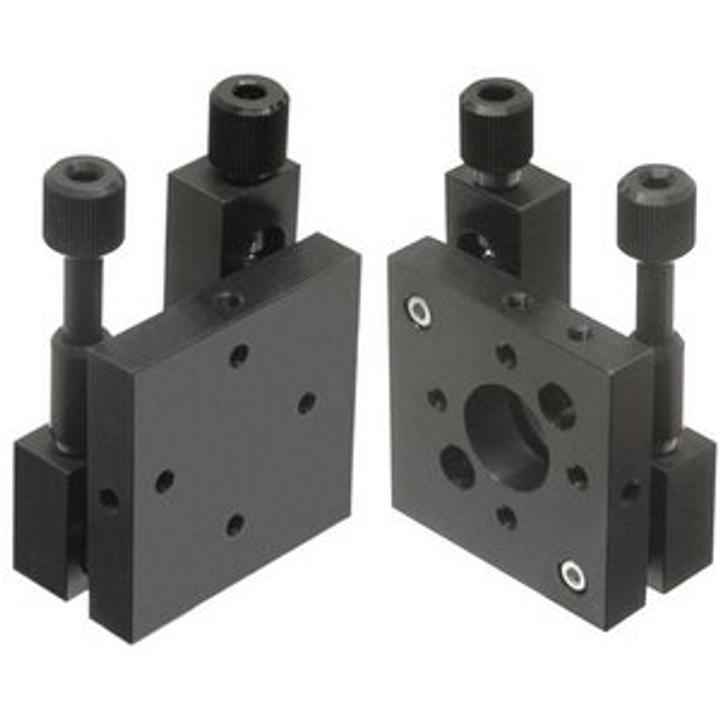

Mirror Mounts of Side Regulation 840-0110-T, 840-0110-TE SKU: 840-0110-TE
The Mirror Mount of Side Regulation 840-0110-T enables to increase greatly the thickness of optical elements as it has a convenient access to the regulation handles. L-shaped flat spring of original design ensures great stability of the mount's platform. Angular range is ±2.5°…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Optical Positioner, 2-screws |
| Mount Material and Coating | Black Anodised Aluminum |
| Mounting Thread | M4, M3 |
| Angular Tilt Range | 5 Deg |
| Tilt Sensitivity | 3 sec |
| Number of Axes | 2 |
| Width | 40 mm |
| Length | 21 mm |
| Height | 62 mm |
