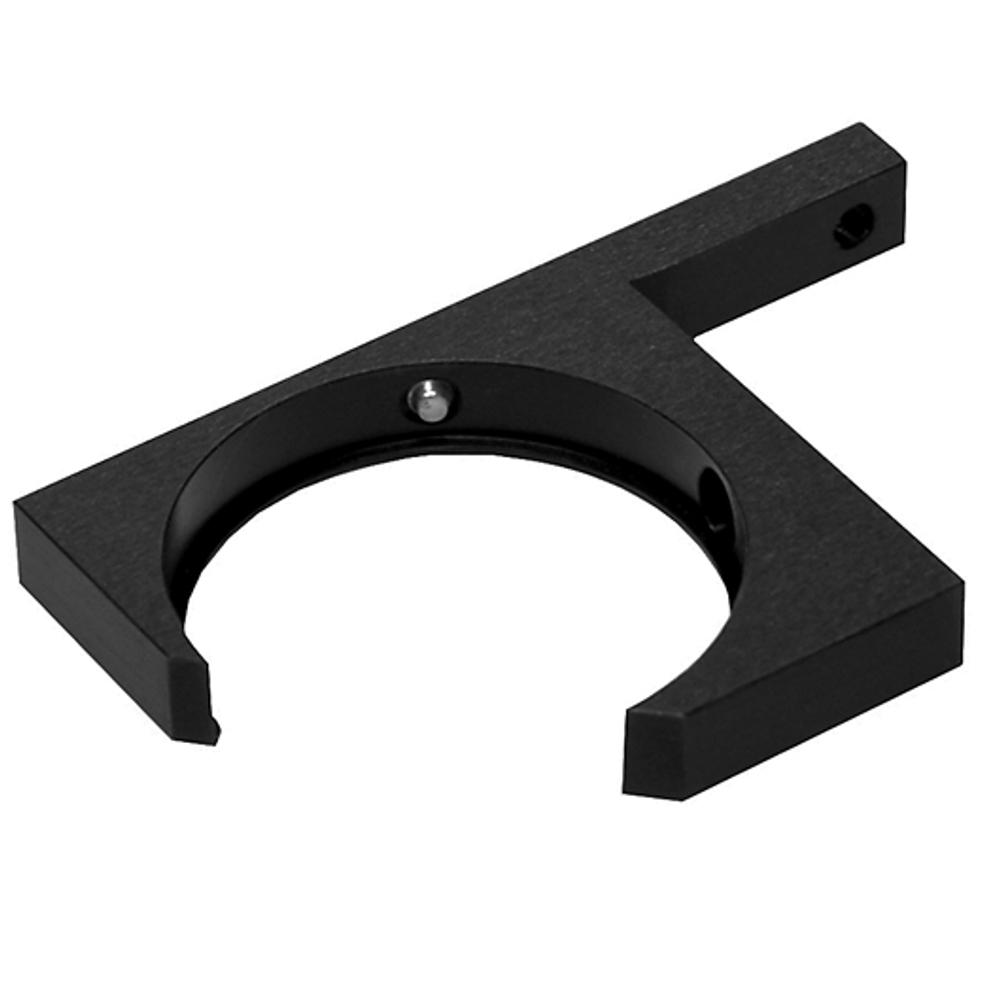

Round Optics Adapters 840-0110-A1
840-0110-A1 can be attached to the platform of 840-0110-T mount on any side. Optics is firmly held by a stainless steel fixing screw and it rests against two contact lines - the edges of the cut-off corner. The frame… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Mounted Optics Diameter | |
|---|---|---|---|
| 840-0110-A1-2 | Optics Adapter | 20 mm - 25 mm |
Out of stock
$42
|
| 840-0110-A1-4 | Optics Adapter | 30 mm - 40 mm |
Out of stock
$45
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Optics Adapter |
| Length | 8 mm |
Description
840-0110-A1 can be attached to the platform of 840-0110-T mount on any side. Optics is firmly held by a stainless steel fixing screw and it rests against two contact lines - the edges of the cut-off corner. The frame doesn't obstruct the view. It allows to work with two beams situated very close to each other.
840-0110-A1-4 fixes thin optical elements Ø30÷40mm.
840-0110-A1-2 fixes elements Ø20÷25 mm (1").
