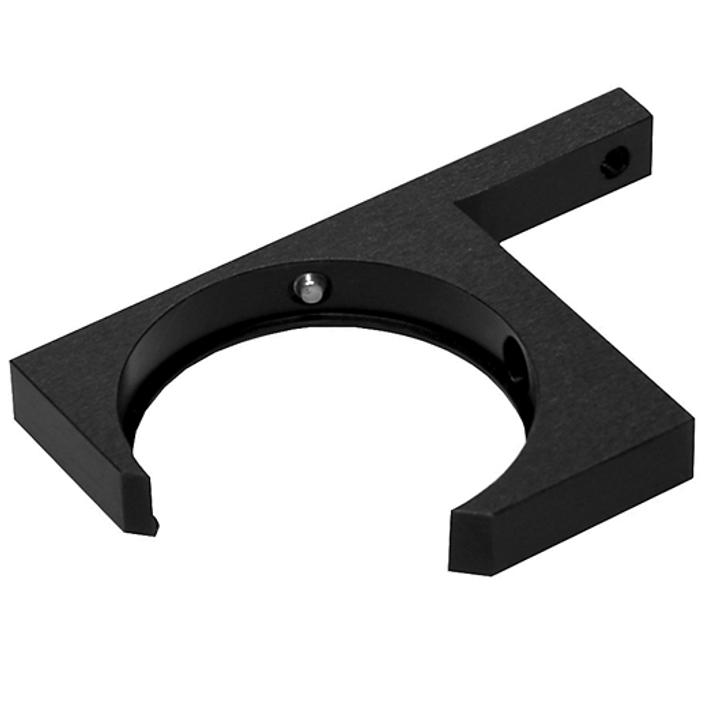

Round Optics Adapters 840-0110-A1 SKU: 840-0110-A1-2
840-0110-A1 can be attached to the platform of 840-0110-T mount on any side. Optics is firmly held by a stainless steel fixing screw and it rests against two contact lines - the edges of the cut-off corner. The frame doesn't obstruct the view. It allows to work with two beams…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Optics Adapter |
| Mounted Optics Diameter | 20 mm - 25 mm |
| Mount Clear Aperture | 23 mm |
| Width | 57 mm |
| Length | 8 mm |
| Height | 30 mm |
Variant files
Technical drawings, models and data files for SKU 840-0110-A1-2.
Product brochures
Shared documentation for the complete product family.
