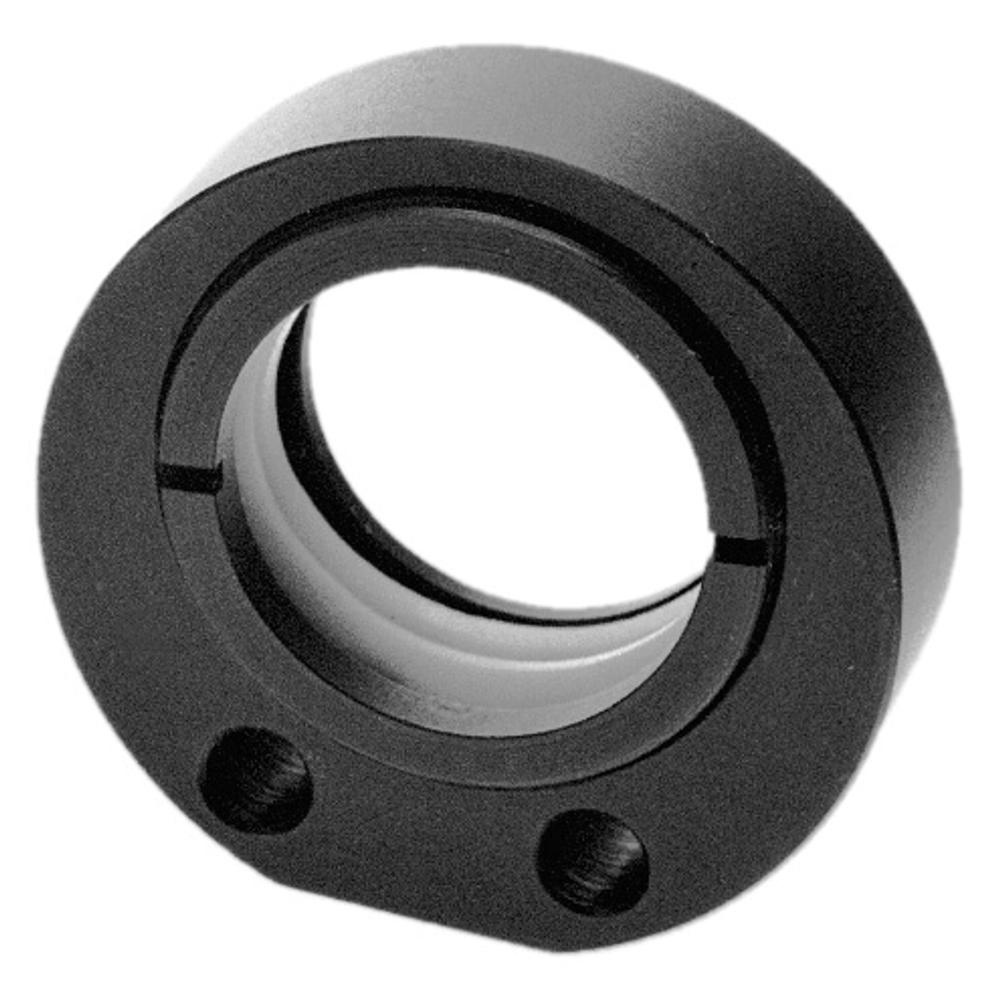

Optical Component Mounts 830-0037
Optical Component Mounts 830-0037 can be used to hold round and thin optical elements of standard sizes. Mounts vary in dimensions so as to support diameters from 12,7 to 75 mm (0.5" to 2"). Original design allows to… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | A · B · C · F · G · D · E | |
|---|---|---|
| 830-0037-10 | 12,7 (0,5'')·26·8·13.5·8.5·12·10 |
Out of stock
$23
|
| 830-0037-20 | 20·33·17·18.8·13.8·12·10 |
Out of stock
$28
|
| 830-0037-25 | 25,4 (1'')·38·23·21.3·16.3·12·10 |
Out of stock
$29
|
| 830-0037-40 | 40·53·37·28.8·23.8·18·16 |
Out of stock
$35
|
| 830-0037-50 | 50,8 (2'')·65·48·34.8·29.8·18·16 |
Out of stock
$47
|
| 830-0037-75 | 75·89·72·46.5·42·18·16 |
Out of stock
$59
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| 830-0037-10 Optical Component Mount - Solidworks file | |
| 830-0037-10 Optical Component Mount - DWG file | |
| 830-0037-25 Optical Component Mount - STEP file |
Classification
| Type | optical-mount |
Description
Optical Component Mounts 830-0037 can be used to hold round and thin optical elements of standard sizes. Mounts vary in dimensions so as to support diameters from 12,7 to 75 mm (0.5" to 2").
Original design allows to decrease the mount's dimensions and weight. Mounting holes: one M6 and two Ø4.5 mm.
Material: black aluminium.
